Tractor · 2009Unverified

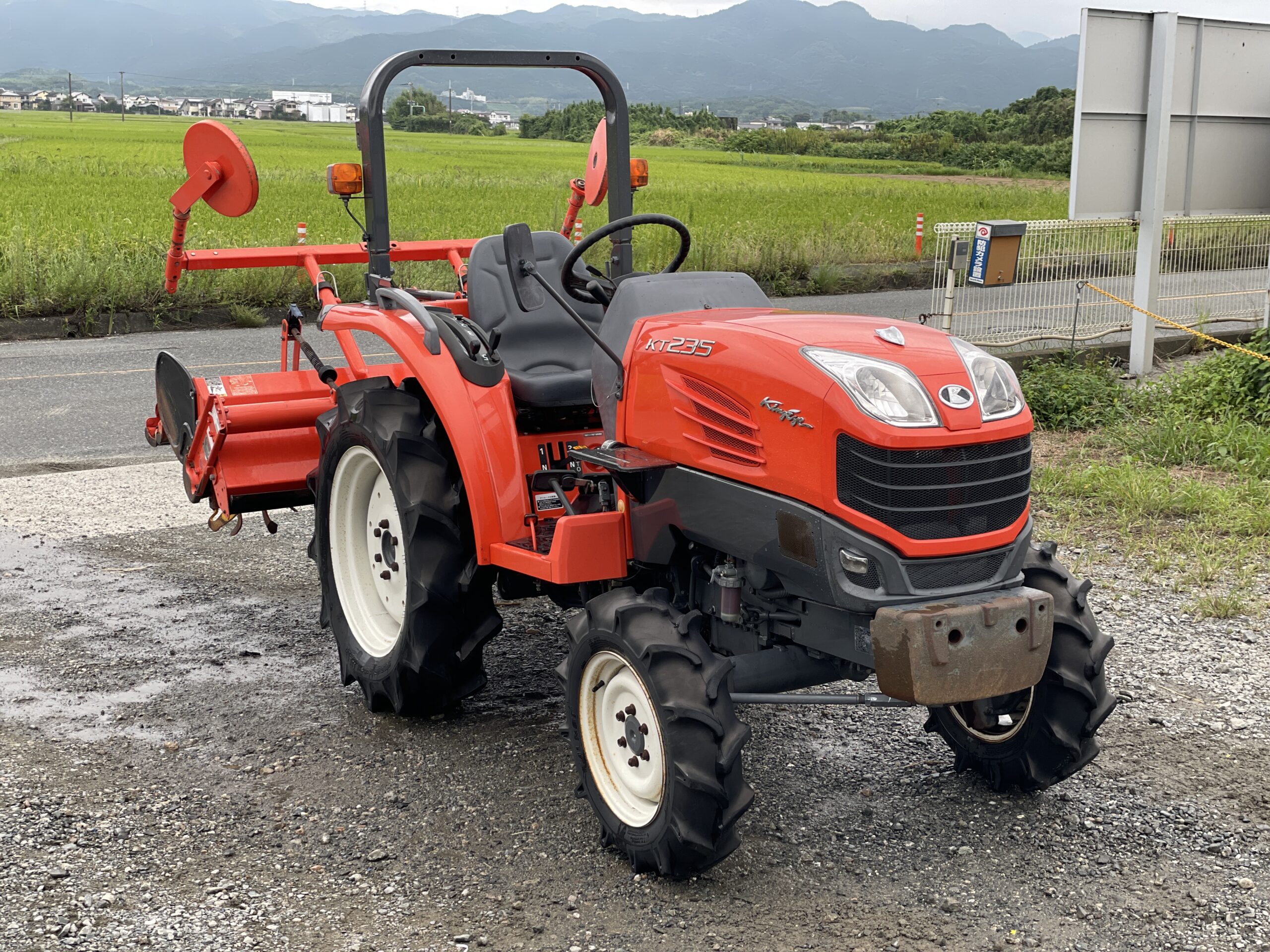

Kubota KT235

Name: Kubota KT235
Brand: Kubota

Kubota KT235 — KT Kingeye Series · 23 hp. Reference specifications; pending source verification.

The Kubota KT235 is a compact tractor model with a rated output of 23 hp, one of the smaller options in its class. It was manufactured from 2009 to 2011. The KT235 is powered by a 3-cylinder diesel liquid-cooled engine, which drives four-wheel drive via a powershift transmission. Its weight is listed at 2050 to 2337 pounds, suitable for tasks covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

23 hp

Max power

22.7 hp

Weight

2050 to 2337 pounds

Catalogue coverage

Variants represented

Richest spec table

81 rows

Recorded power

23 hp

Transmissions

12-speed

Production years

2009-2011

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Kubota 1.5L 3-cyl dieselReference

Fuel tank28.0 LReference

Engine16.9 kWReference

Kubota D1503Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke83 x 92 mmReference

Power16.9 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,500 rpmReference

Bore and stroke3.27x3.64 inchesReference

Cooling systemliquid-cooledReference

Transmission

12-speedReference

48-speed power shiftReference

ROPS gear929 kgReference

Cab gear1040 kgReference

Gears12 forward and reverseReference

Clutchdry discReference

Three gears (1-3) in four ranges (creeper, low, medium, high) with shuttle shift.Reference

TransmissionGlideshiftReference

Typepower shiftReference

Gears48 forward and 30 reverseReference

Sixteen gears (10 in reverse) with three ranges. Gears may be shifted sequentially while moving, without using the clutch. Tractor must be stopped, and clutch used, to shift ranges.Reference

Transmission TypePowershiftReference

forward and reverse options12 F&R | powershift - 48 F & 30 RReference

Wheel Drive4WDReference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540 (1.375)Reference

Engine RPM505@2500Reference

Engine RPM731@2500Reference

Engine RPM1136@2500Reference

Engine RPM-615@2500Reference

Dimensions

Wheelbase150 cmReference

Weight2050 to 2337 poundsReference

Front tire6-14Reference

Rear tire9.5-22Reference

Standard tires (ag)Front: 6-14. Rear: 9.5-22Reference

Optional tires (ag)Front: 6-14. Rear: 9.5-24Reference

ROPS Length285 cmReference

Cab Length283 cmReference

ROPS Width118 cmReference

Cab Width131 cmReference

Height (ROPS)190 cmReference

Height (cab)193 cmReference

Ground clearance32 cmReference

Front tread97 cmReference

Rear tread94/106 cmReference

ROPS Glideshift949 kgReference

Cab Glideshift1060 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Capacities

Capacity91.5 ciReference

Power

Max Power22.7 hpReference

PTO

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed1,136@2,500 rpmReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Hydraulics

Rear Hitch category (SAE designation)Category IReference

Dimensions & weight

Height Over Cab193 cmReference

Height Over ROPS190.5 cmReference

Overall Length285.5 cmReference

Overall Width131.1 cmReference

Overall weight949.8 kgReference

Wheels & tyres

Rear Wheel Type9.5-24Reference

Rear wheel tread range106.9 cmReference

Front Wheel Type6-14.Reference

Front Wheel tread range97 cmReference

General

Rollover protective structureTwo-post folding ROPSReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
