Tractor · 2000Unverified

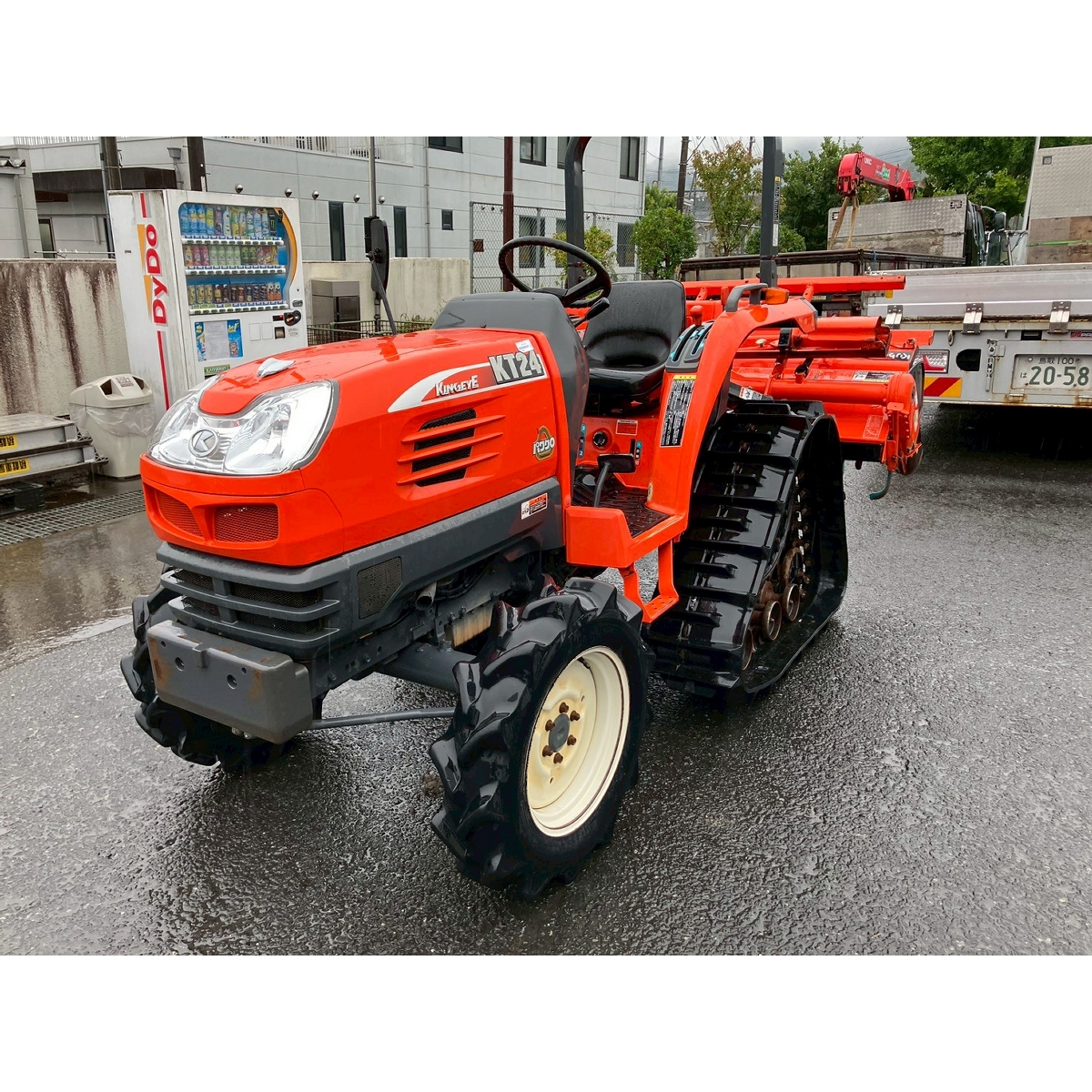

Kubota KT24
Kubota KT24 — KT Kingeye Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
2028 to 2579 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Kubota 1.5L 3-cyl dieselReference
Fuel tank28.0 LReference
Engine17.7 kWReference
Kubota D1463Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke82 x 92 mmReference
Power17.7 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
48-speed power shiftReference
ROPS gear919 kgReference
Cab gear1050 kgReference
Gears12 forward and reverseReference
Clutchdry discReference
Three gears (1-3) in four ranges (creeper, low, medium, high) with shuttle shift.Reference
TransmissionGlideshiftReference
Typepower shiftReference
Gears48 forward and 30 reverseReference
Sixteen gears (10 in reverse) with three ranges. Gears may be shifted sequentially while moving, without using the clutch. Tractor must be stopped, and clutch used, to shift ranges.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM525@2600Reference
Engine RPM760@2600Reference
Engine RPM1182@2600Reference
Engine RPM-640@2600Reference
Dimensions
Wheelbase145 cmReference
Weight2028 to 2579 poundsReference
Front tire6-14Reference
Rear tire9.5-22Reference
Standard tires (ag)Front: 6-14. Rear: 9.5-22Reference
Optional tires (ag)Front: 6-14. Rear: 9.5-24Reference
ROPS Length282 cmReference
Cab Length280 cmReference
ROPS Width115 cmReference
Cab Width124 cmReference
Height (ROPS)190 cmReference
Height (cab)191 cmReference
Ground clearance32 cmReference
Front tread94 cmReference
Rear tread94/106 cmReference
ROPS Glideshift939 kgReference
Cab Glideshift1169 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
