Tractor · 2005Unverified

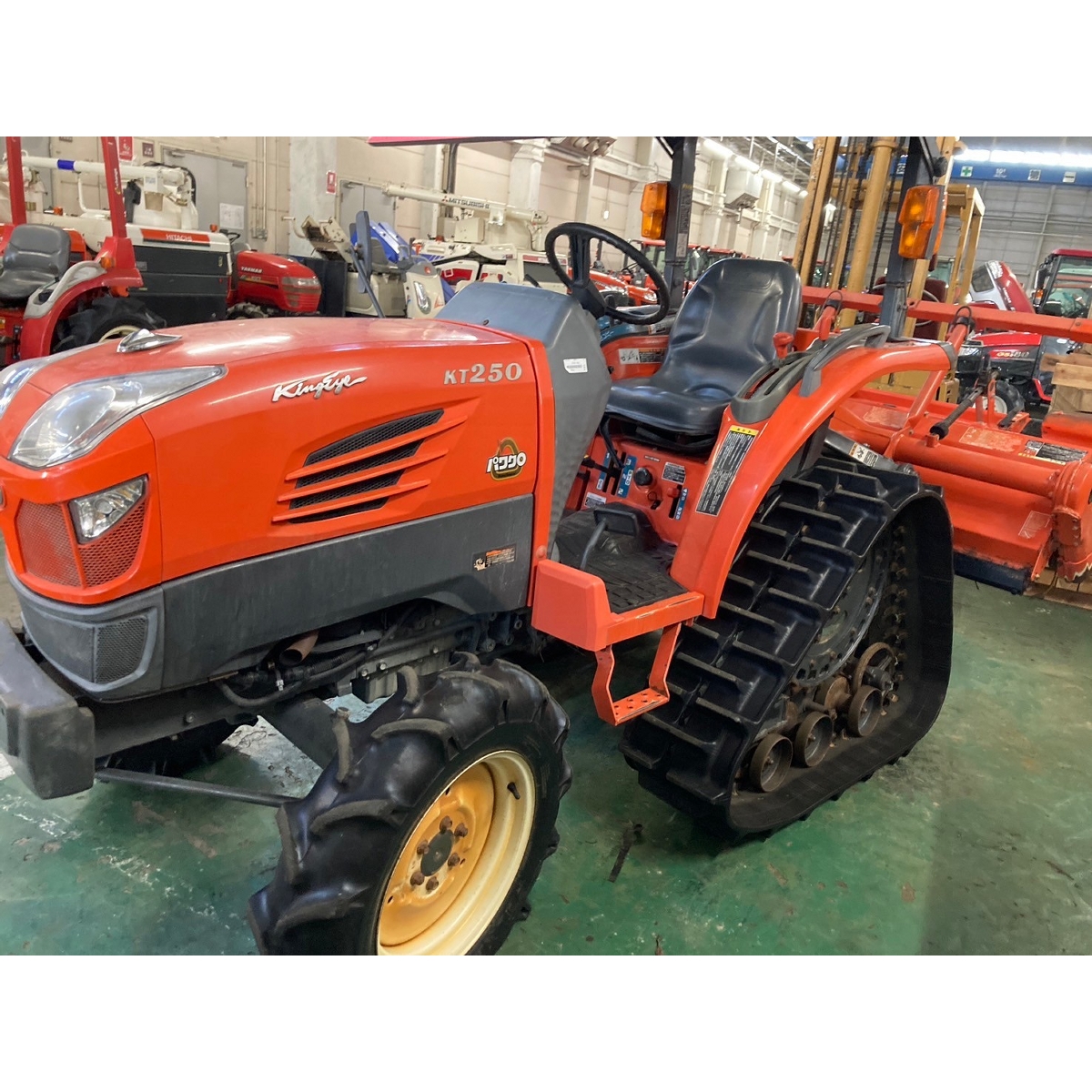

Kubota KT250

Name: Kubota KT250
Brand: Kubota

Kubota KT250 — KT Kingeye Series · 25 hp. Reference specifications; pending source verification.

The Kubota KT250 is a compact tractor rated at 25 hp, one of the smaller options in its class. Manufactured from 2005 to 2008, it is equipped with a 3-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system via a powershift transmission. The KT250 is suited to tasks involving areas of up to 200 acres. Specifications for both UK and US markets are detailed in a separate table.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

25 hp

Catalogue coverage

Variants represented

Richest spec table

49 rows

Recorded power

25 hp

Transmissions

12-speed

Production years

2005-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Kubota 1.5L 3-cyl dieselReference

Fuel tank28.0 LReference

Engine18.4 kWReference

Kubota D1463Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke82 x 92 mmReference

Power18.4 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speedReference

48-speed power shiftReference

Gears12 forward and reverseReference

Clutchdry discReference

Three gears (1-3) in four ranges (creeper, low, medium, high) with shuttle shift.Reference

TransmissionGlideshiftReference

Typepower shiftReference

Gears48 forward and 30 reverseReference

Sixteen gears (10 in reverse) with three ranges. Gears may be shifted sequentially while moving, without using the clutch. Tractor must be stopped, and clutch used, to shift ranges.Reference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540 (1.375)Reference

Engine RPM525@2600Reference

Engine RPM760@2600Reference

Engine RPM1182@2600Reference

Engine RPM-640@2600Reference

Dimensions

Wheelbase150 cmReference

Front tire6-14Reference

Rear tire9.5-24Reference

Standard tires (ag)Front: 6-14. Rear: 9.5-24Reference

Optional tires (ag)Front: 7-14. Rear: 11.2-24Reference

ROPS Length286 cmReference

Cab Length284 cmReference

Width118 cmReference

Height (ROPS)193 cmReference

Height (cab)196 cmReference

Ground clearance33 cmReference

Front tread97 cmReference

Rear tread94/106 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
