Tractor · 2009Unverified

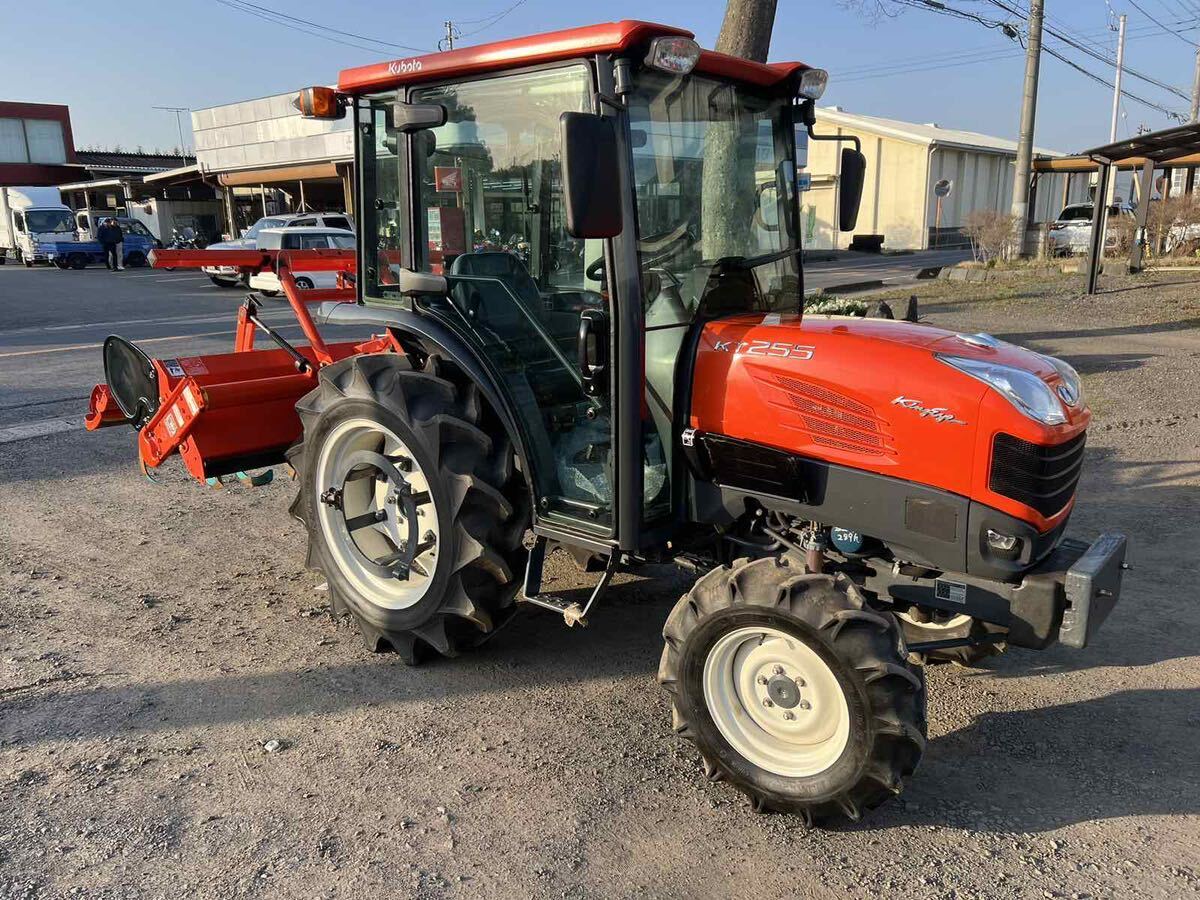

Kubota KT255

Name: Kubota KT255
Brand: Kubota

Kubota KT255 — KT Kingeye Series · 25 hp. Reference specifications; pending source verification.

The Kubota KT255 is a tractor model with a rating of approximately 25 hp, positioning it towards the lighter end of its class. It was manufactured from 2009 to 2011. The model features a 3-cylinder diesel liquid-cooled engine and four-wheel drive with a powershift transmission. Its operating weight is listed as 2061 to 2348 pounds, suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

25 hp

Weight

2061 to 2348 pounds

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

25 hp

Transmissions

12-speed

Production years

2009-2011

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Kubota 1.5L 3-cyl dieselReference

Fuel tank28.0 LReference

Engine18.4 kWReference

Kubota D1503Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke83 x 92 mmReference

Power18.4 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speedReference

48-speed power shiftReference

ROPS gear934 kgReference

Cab gear1045 kgReference

Gears12 forward and reverseReference

Clutchdry discReference

Three gears (1-3) in four ranges (creeper, low, medium, high) with shuttle shift.Reference

TransmissionGlideshiftReference

Typepower shiftReference

Gears48 forward and 30 reverseReference

Sixteen gears (10 in reverse) with three ranges. Gears may be shifted sequentially while moving, without using the clutch. Tractor must be stopped, and clutch used, to shift ranges.Reference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540 (1.375)Reference

Engine RPM525@2600Reference

Engine RPM760@2600Reference

Engine RPM1132@2600Reference

Engine RPM-640@2600Reference

Dimensions

Wheelbase150 cmReference

Weight2061 to 2348 poundsReference

Front tire6-14Reference

Rear tire9.5-24Reference

Standard tires (ag)Front: 6-14. Rear: 9.5-24Reference

Optional tires (ag)Front: 7-14. Rear: 11.2-24Reference

ROPS Length286 cmReference

Cab Length284 cmReference

ROPS Width118 cmReference

Cab Width131 cmReference

Height (ROPS)196 cmReference

Height (cab)193 cmReference

Ground clearance33 cmReference

Front tread97 cmReference

Rear tread94/106 cmReference

ROPS Glideshift954 kgReference

Cab Glideshift1065 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
