Tractor · 2005Unverified

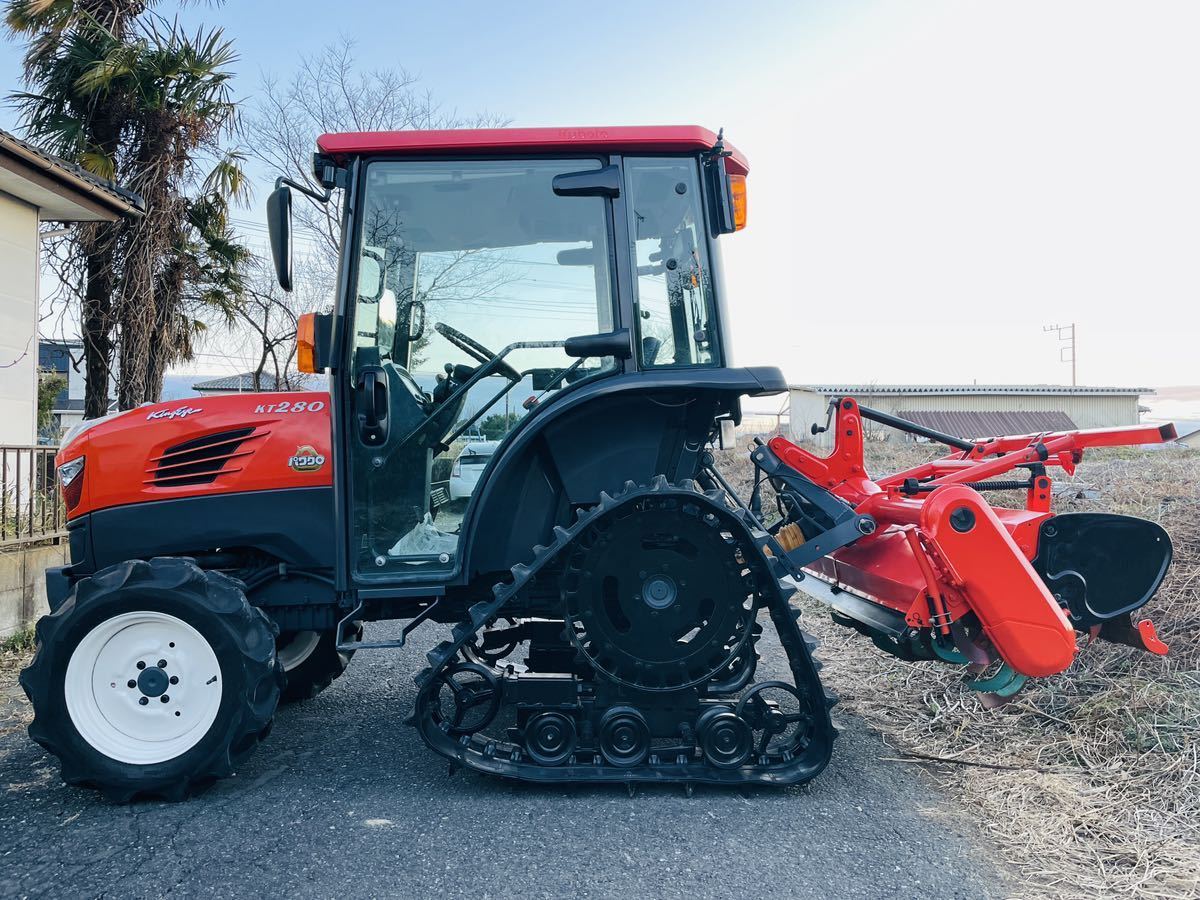

Kubota KT280
Kubota KT280 — KT Kingeye Series · 28 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
2150 to 2458 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Kubota 1.5L 3-cyl dieselReference
Fuel tank28.0 LReference
Engine20.6 kWReference
Kubota D1503Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke83 x 92 mmReference
Power20.6 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
48-speed power shiftReference
ROPS gear975 kgReference
Cab gear1094 kgReference
Gears12 forward and reverseReference
Clutchdry discReference
Three gears (1-3) in four ranges (creeper, low, medium, high) with shuttle shift.Reference
TransmissionGlideshiftReference
Typepower shiftReference
Gears48 forward and 30 reverseReference
Sixteen gears (10 in reverse) with three ranges. Gears may be shifted sequentially while moving, without using the clutch. Tractor must be stopped, and clutch used, to shift ranges.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM525@2600Reference
Engine RPM760@2600Reference
Engine RPM1182@2600Reference
Engine RPM-640@2600Reference
Dimensions
Wheelbase150 cmReference
Weight2150 to 2458 poundsReference
Front tire7-14Reference
Rear tire11.2-24Reference
Standard tires (ag)Front: 7-14. Rear: 11.2-24Reference
Optional tires (ag)Front: 7-16. Rear: 11.2-26Reference
ROPS Length289 cmReference
Cab Length286 cmReference
Width132 cmReference
Height (ROPS)193 cmReference
Height (cab)198 cmReference
Ground clearance35 cmReference
Front tread105 cmReference
Rear tread104 cmReference
ROPS Glideshift995 kgReference
Cab Glideshift1114 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
