Tractor · 2009Unverified

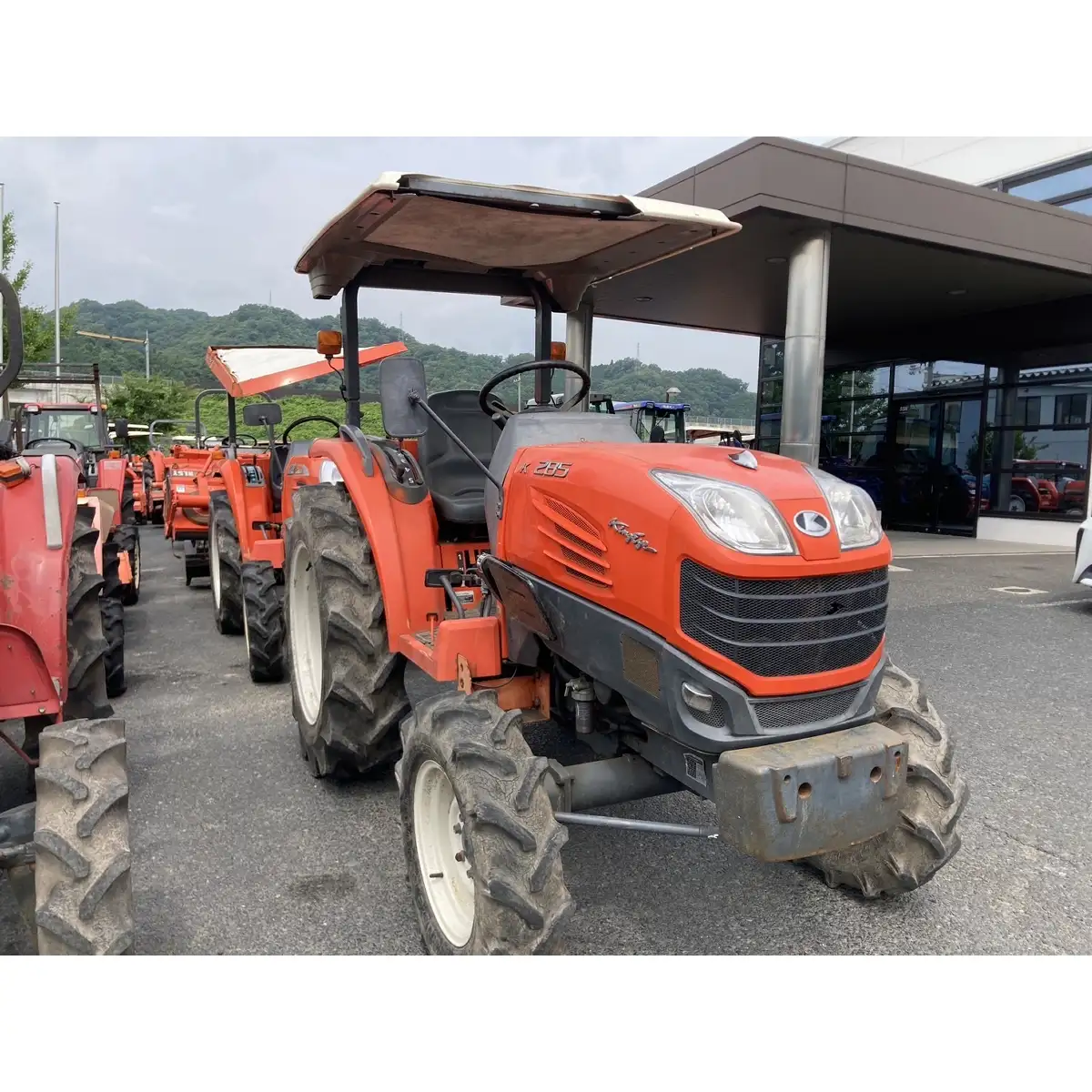

Kubota KT285

Name: Kubota KT285
Brand: Kubota

Kubota KT285 — KT Kingeye Series · 28 hp. Reference specifications; pending source verification.

The Kubota KT285 is a compact tractor model, rated at 28 hp. It was manufactured from 2009 to 2011, and is equipped with a 3-cylinder diesel liquid-cooled engine that drives a four-wheel drive system with a powershift transmission. The model weighs between 2150 and 2458 pounds, and is designed for applications involving around 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

28 hp

Max power

27.6 hp

Weight

2150 to 2458 pounds

Catalogue coverage

Variants represented

Richest spec table

80 rows

Recorded power

28 hp

Transmissions

12-speed

Production years

2009-2011

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Kubota 1.6L 3-cyl dieselReference

Fuel tank28.0 LReference

Engine20.6 kWReference

Kubota D1703Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.6 LReference

Bore/Stroke86 x 91 mmReference

Power20.6 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,600 rpmReference

Bore and stroke3.4x3.6 inchesReference

Cooling systemliquid-cooledReference

Transmission

12-speedReference

48-speed power shiftReference

ROPS gear975 kgReference

Cab gear1094 kgReference

Gears12 forward and reverseReference

Clutchdry discReference

Three gears (1-3) in four ranges (creeper, low, medium, high) with shuttle shift.Reference

TransmissionGlideshiftReference

Typepower shiftReference

Gears48 forward and 30 reverseReference

Sixteen gears (10 in reverse) with three ranges. Gears may be shifted sequentially while moving, without using the clutch. Tractor must be stopped, and clutch used, to shift ranges.Reference

Transmission TypePowershiftReference

forward and reverse options12 F&R | powershift - 48 F & 30 RReference

Wheel Drive4WDReference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540 (1.375)Reference

Engine RPM525@2600Reference

Engine RPM760@2600Reference

Engine RPM1132@2600Reference

Engine RPM-640@2600Reference

Dimensions

Wheelbase150 cmReference

Weight2150 to 2458 poundsReference

Front tire7-14Reference

Rear tire11.2-24Reference

Standard tires (ag)Front: 7-14. Rear: 11.2-24Reference

Optional tires (ag)Front: 7-16. Rear: 11.2-26Reference

ROPS Length289 cmReference

Cab Length286 cmReference

Width132 cmReference

Height (ROPS)193 cmReference

Height (cab)198 cmReference

Ground clearance35 cmReference

Front tread105 cmReference

Rear tread104 cmReference

ROPS Glideshift995 kgReference

Cab Glideshift1114 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Capacities

Capacity100.5 ciReference

Power

Max Power27.6 hpReference

PTO

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed1,136@2,500 rpmReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Hydraulics

Rear Hitch category (SAE designation)Category IReference

Dimensions & weight

Height Over Cab198.1 cmReference

Height Over ROPS193 cmReference

Overall Length289.1 cmReference

Overall Width132.1 cmReference

Overall weight995.2 kgReference

Wheels & tyres

Rear Wheel Type11.2-26Reference

Rear wheel tread range104.9 cmReference

Front Wheel Type7-16.Reference

Front Wheel tread range105.4 cmReference

General

Rollover protective structureTwo-post folding ROPSReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
