Tractor · 2000Unverified

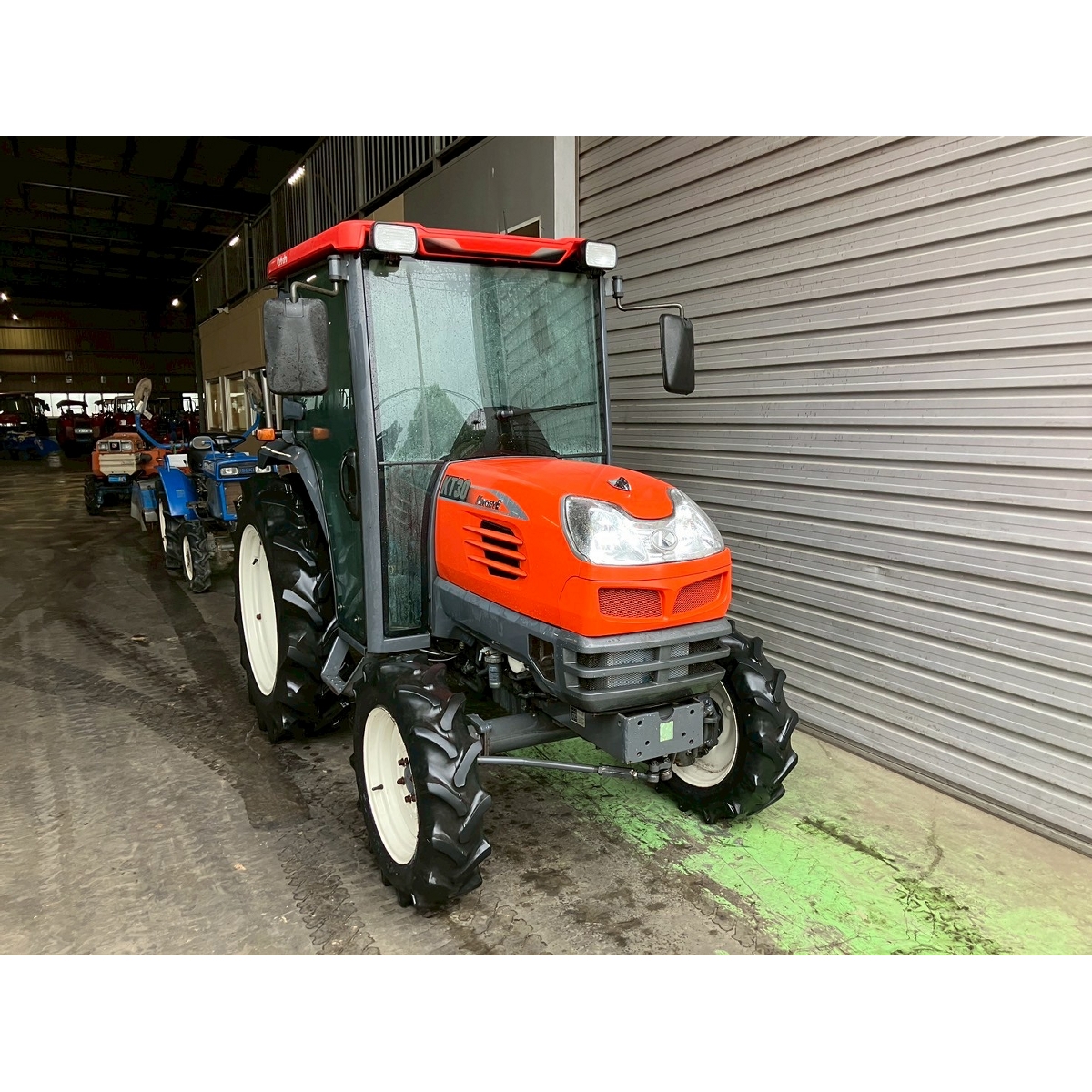

Kubota KT30

Name: Kubota KT30
Brand: Kubota

Kubota KT30 — KT Kingeye Series · 30 hp. Reference specifications; pending source verification.

The Kubota KT30 is a compact tractor with a rated output of 30 hp. It was manufactured from 2000 to 2004 and is equipped with a 3-cylinder diesel liquid-cooled engine, which powers four-wheel drive through a powershift transmission. The listed weight of the tractor ranges from 2127 pounds to 2458 pounds. It is designed for use on areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

30 hp

Weight

2127 to 2458 pounds

Catalogue coverage

Variants represented

Richest spec table

54 rows

Recorded power

30 hp

Transmissions

12-speed

Production years

2000-2004

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Kubota 1.5L 3-cyl dieselReference

Fuel tank28.0 LReference

Engine22.1 kWReference

Kubota D1503Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke83 x 92 mmReference

Power22.1 kWReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speedReference

48-speed power shiftReference

ROPS gear964 kgReference

Cab gear1094 kgReference

Gears12 forward and reverseReference

Clutchdry discReference

Three gears (1-3) in four ranges (creeper, low, medium, high) with shuttle shift.Reference

TransmissionGlideshiftReference

Typepower shiftReference

Gears48 forward and 30 reverseReference

Sixteen gears (10 in reverse) with three ranges. Gears may be shifted sequentially while moving, without using the clutch. Tractor must be stopped, and clutch used, to shift ranges.Reference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540 (1.375)Reference

Engine RPM545@2700Reference

Engine RPM789@2700Reference

Engine RPM1227@2700Reference

Engine RPM-664@2700Reference

Dimensions

Wheelbase150 cmReference

Weight2127 to 2458 poundsReference

Front tire7-14Reference

Rear tire11.2-24Reference

Standard tires (ag)Front: 7-14. Rear: 11.2-24Reference

Optional tires (ag)Front: 7-16. Rear: 11.2-26Reference

ROPS Length286 cmReference

Cab Length283 cmReference

Width132 cmReference

Height (ROPS)193 cmReference

Height (cab)196 cmReference

Ground clearance34 cmReference

Front tread104 cmReference

Rear tread104 to 126 cmReference

ROPS Glideshift985 kgReference

Cab Glideshift1114 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
