Tractor · 1983Unverified

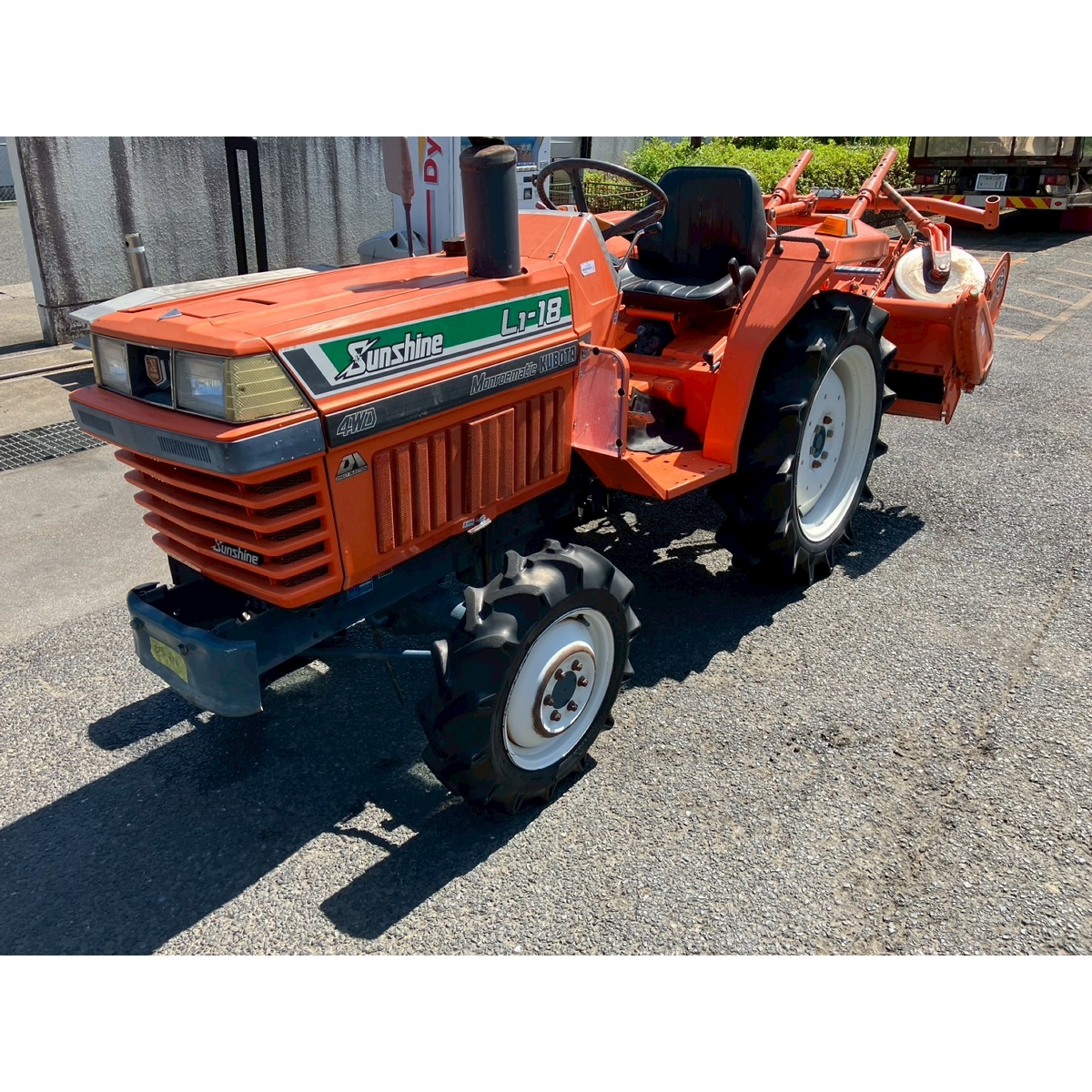

Kubota L1-18
Kubota L1-18 — L1 Series · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
1962 to 2150 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Wet disc brakesReference
Open operator station.Reference
Variants
L1-18DT4WDReference
Engine
Kubota 1.3L 3-cyl dieselReference
Fuel tank29.1 LReference
Engine13.3 kWReference
Kubota D1302Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke82 x 82 mmReference
Power13.3 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed shuttleReference
TypeshuttleReference
Gears16 forward and reverseReference
Clutchdry discReference
Four gears in four ranges with shuttle shift.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540/770/940/1250 (1.375)Reference
Dimensions
Wheelbase150 cmReference
Weight1962 to 2150 poundsReference
Front tire4.00-12Reference
2WD Rear tire8.3-24Reference
2WD Standard tires (ag)Front: 4.00-12. Rear: 8.3-24Reference
4WD Standard tires (ag)Front: 6-14. Rear: 8.3-24Reference
Length289 cmReference
Width119 cmReference
Height198 cmReference
2WD Weight889 kgReference
4WD Weight975 kgReference
2WD Ground clearance32 cmReference
4WD Ground clearance27 cmReference
2WD Front tread88 cmReference
4WD Front tread97 cmReference
Rear tread94/106 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
Forward speeds are 20% faster than reverse.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
