Tractor · 1986Unverified

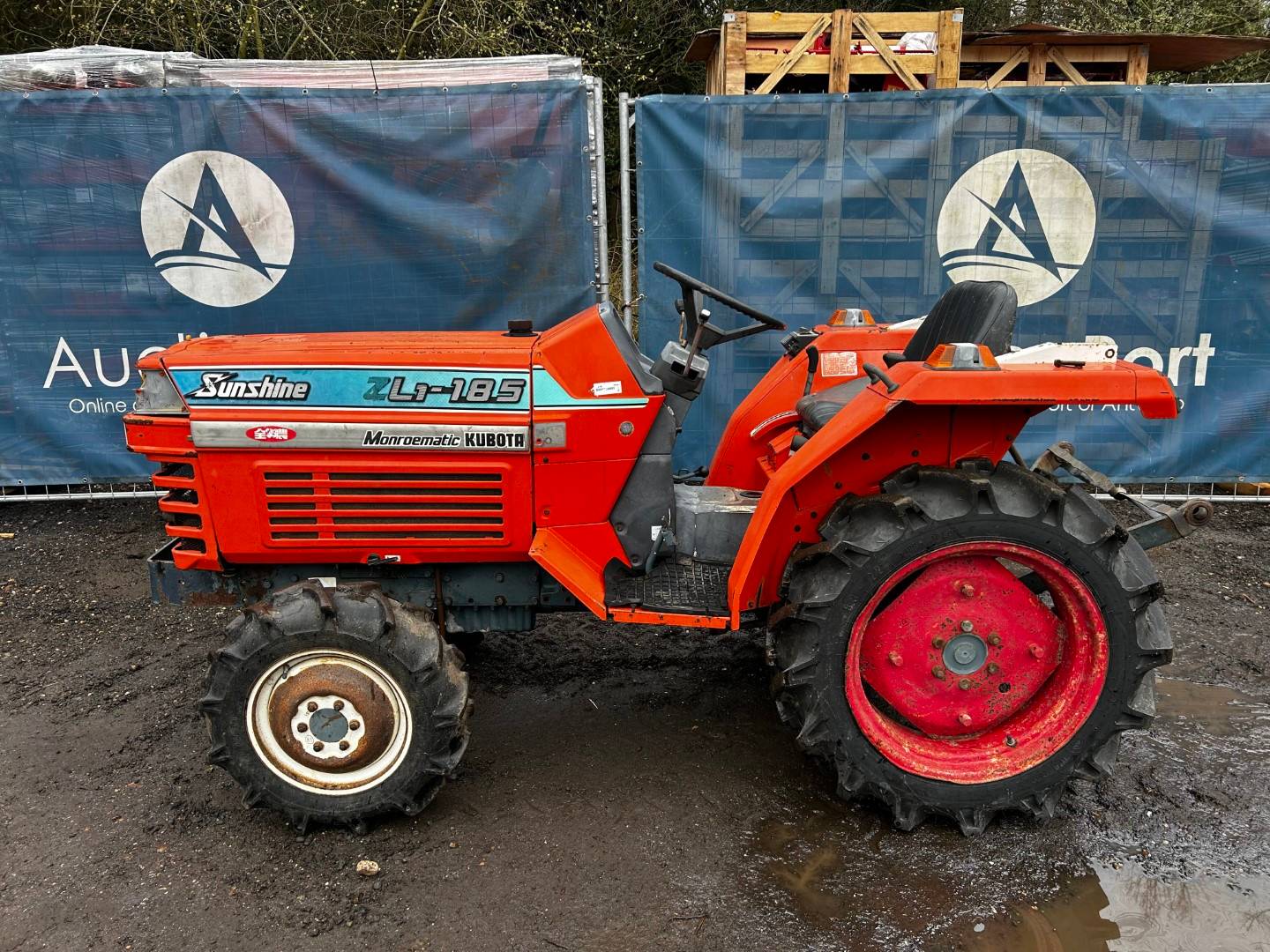

Kubota L1-185

Name: Kubota L1-185
Brand: Kubota

Kubota L1-185 — L1 Series · 18 hp. Reference specifications; pending source verification.

The Kubota L1-185 is a compact tractor with a rated output of 18 hp, a compact option within its class. Produced from 1986 to 1988, the L1-185 features a 3-cylinder diesel liquid-cooled engine, which powers four-wheel drive via a 16-speed gearbox. It is suitable for smaller-scale farming jobs, typically up to 200 ac.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

18 hp

Catalogue coverage

Variants represented

Richest spec table

26 rows

Recorded power

18 hp

Transmissions

16-speed shuttle

Production years

1986-1988

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Wet disc brakesReference

Open operator station.Reference

Variants

L1-185DT4WDReference

Engine

Kubota 1.3L 3-cyl dieselReference

Fuel tank29.1 LReference

Engine13.2 kWReference

Kubota D1302Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.3 LReference

Bore/Stroke82 x 82 mmReference

Power13.2 kWReference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed shuttleReference

TypeshuttleReference

Gears16 forward and reverseReference

Clutchdry discReference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540/770/940/1250Reference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
