Tractor · 1988Unverified

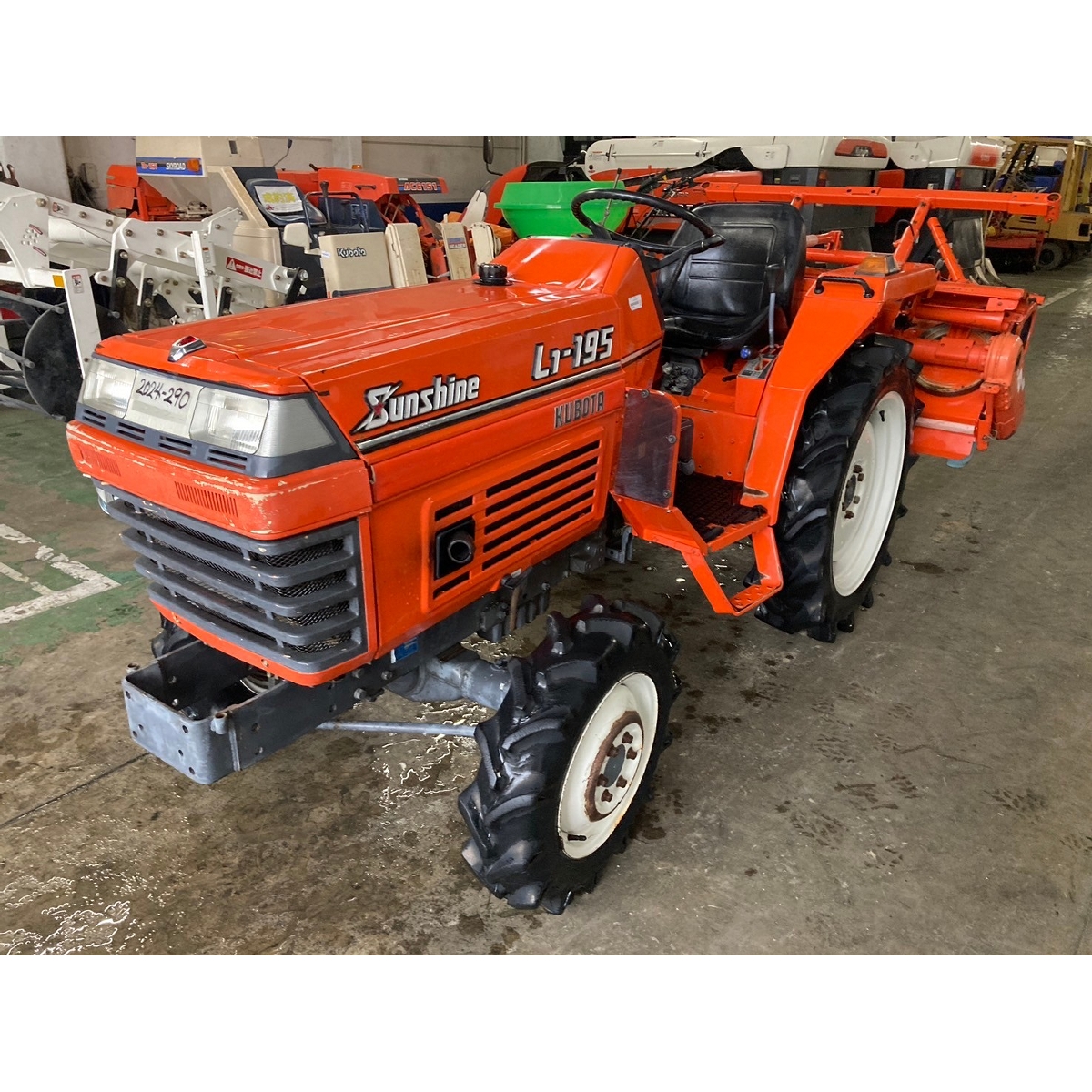

Kubota L1-195

Name: Kubota L1-195
Brand: Kubota

Kubota L1-195 — L1 Series · 19 hp. Reference specifications; pending source verification.

The Kubota L1-195 is a compact tractor, rated at 19 hp, which falls within its class. It was manufactured from 1988 to 1991, and features a 3-cylinder diesel liquid-cooled engine. The tractor's transmission consists of a 16-speed gearbox with four-wheel drive. Its listed weight ranges from 1962 to 2150 pounds, with applications suited for areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

19 hp

Weight

1962 to 2150 pounds

Catalogue coverage

Variants represented

Richest spec table

44 rows

Recorded power

19 hp

Recorded weight

889 kg

Transmissions

16-speed shuttle

Production years

1988-1991

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Wet disc brakesReference

Open operator station.Reference

Variants

L1-195DT4WDReference

Engine

Kubota 1.3L 3-cyl dieselReference

Fuel tank29.1 LReference

Engine13.9 kWReference

Kubota D1302Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.3 LReference

Bore/Stroke82 x 82 mmReference

Power13.9 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed shuttleReference

TypeshuttleReference

Gears16 forward and reverseReference

Clutchdry discReference

Four gears in four ranges with shuttle shift.Reference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540/770/940/1250Reference

Dimensions

Wheelbase150 cmReference

Weight1962 to 2150 poundsReference

Front tire4.00-12Reference

2WD Rear tire8.3-24Reference

2WD Standard tires (ag)Front: 4.00-12. Rear: 8.3-24Reference

4WD Standard tires (ag)Front: 6-14. Rear: 8.3-24Reference

Length289 cmReference

Width119 cmReference

Height137 cmReference

2WD Weight889 kgReference

4WD Weight975 kgReference

2WD Ground clearance32 cmReference

4WD Ground clearance27 cmReference

2WD Front tread88 cmReference

4WD Front tread93 cmReference

Rear tread94/106 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
