Tractor · 1983Unverified

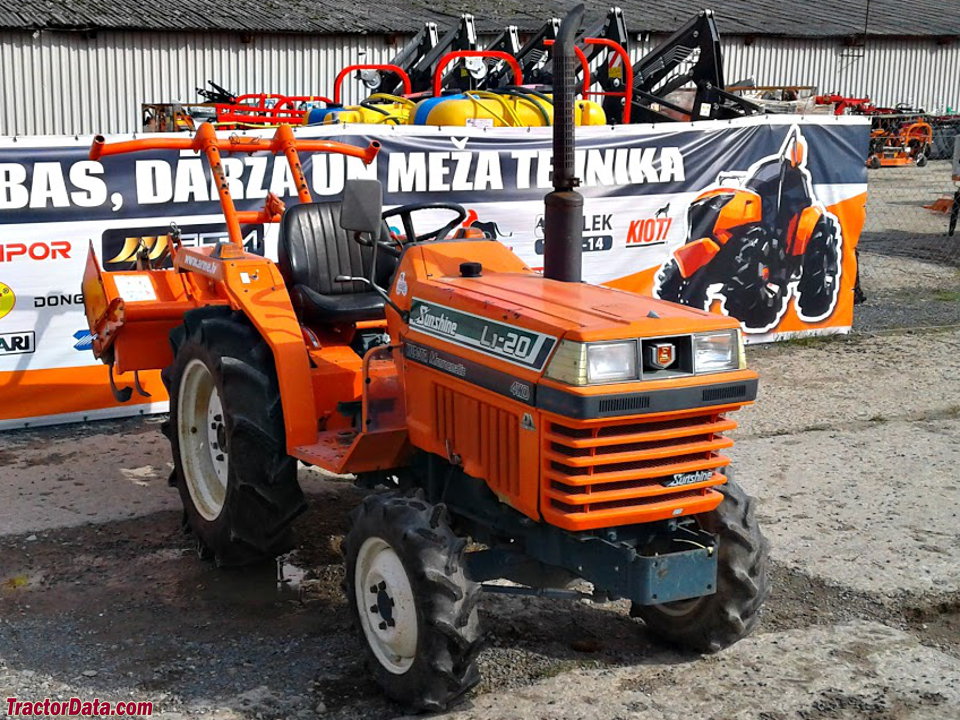

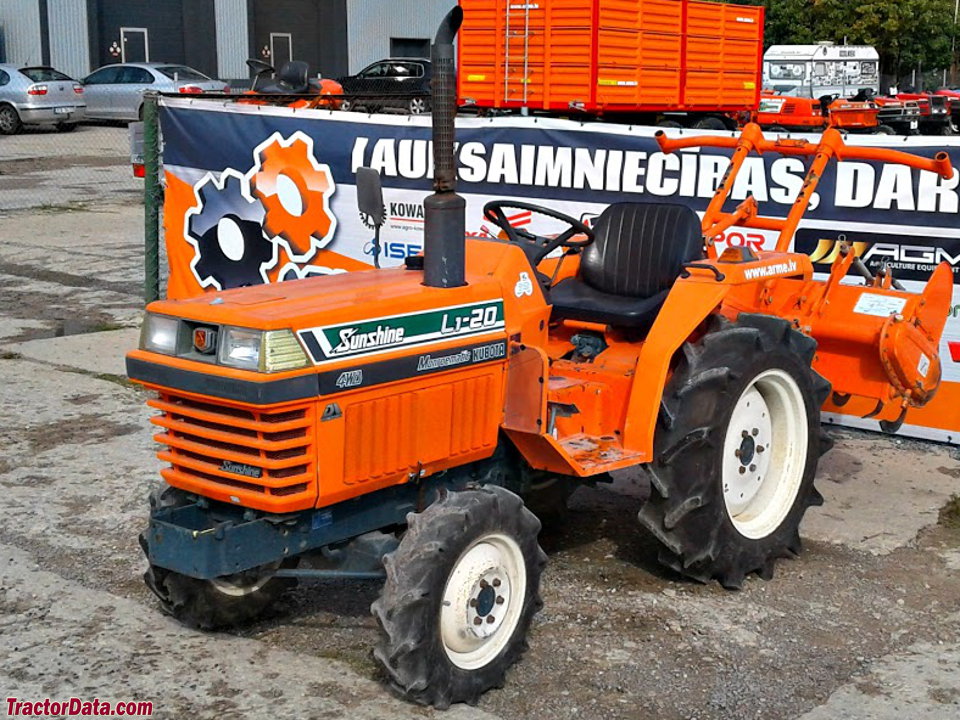

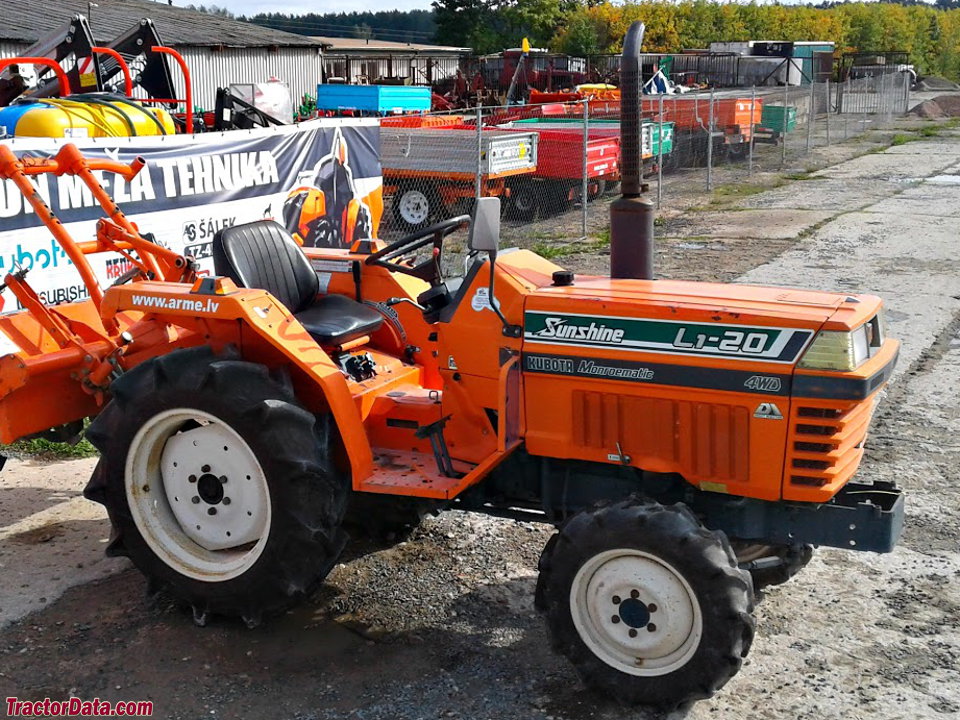

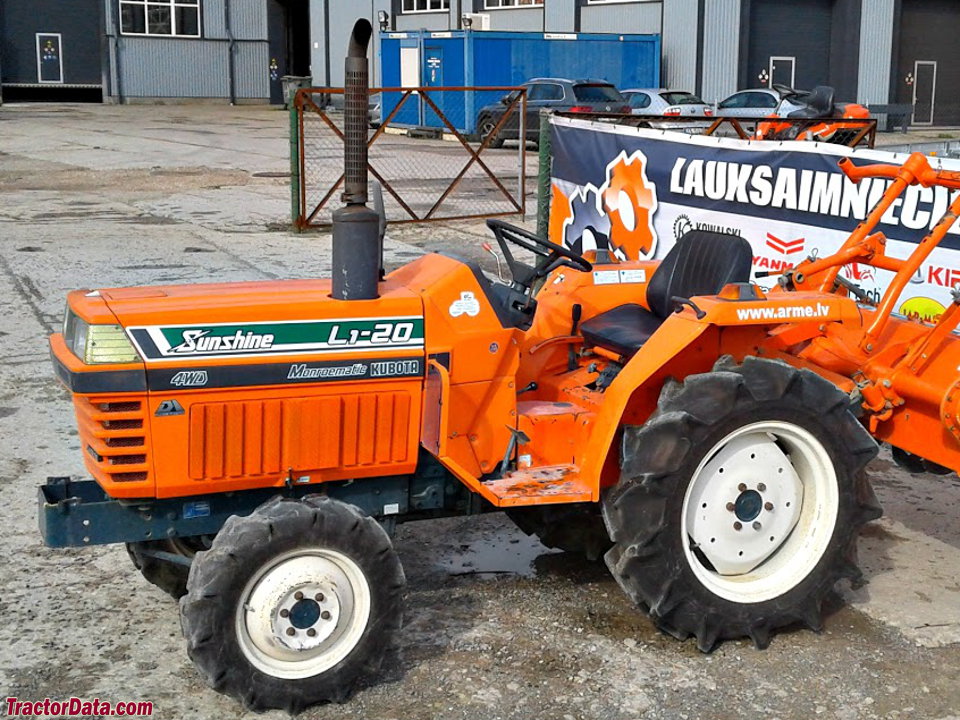

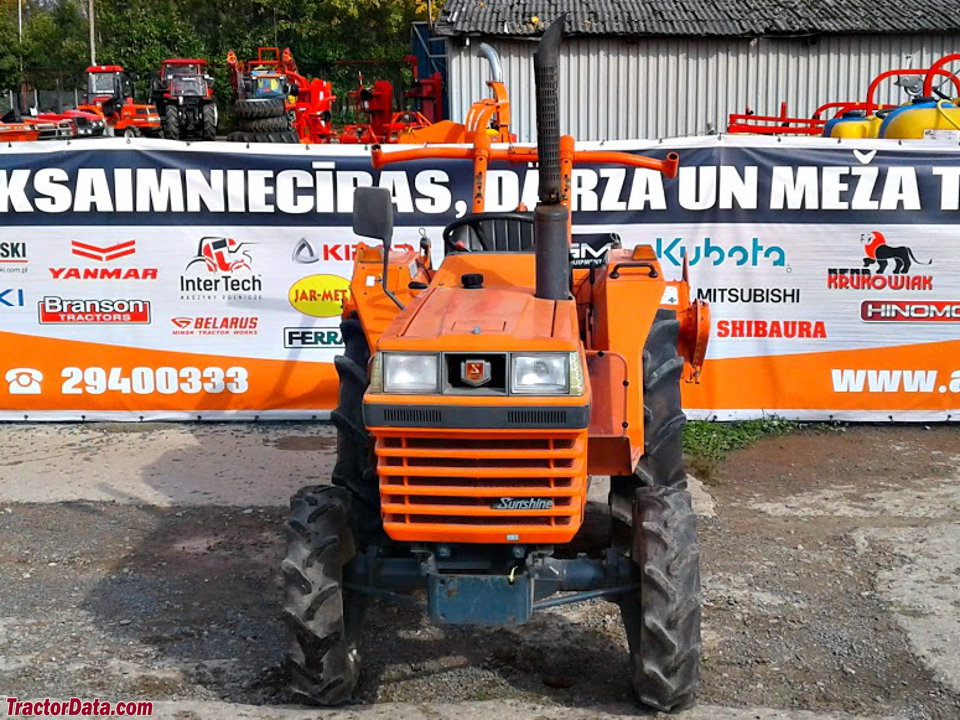

Kubota L1-20

Name: Kubota L1-20
Brand: Kubota

Kubota L1-20 — L1 Series · 20 hp. Reference specifications; pending source verification.

The Kubota L1-20 is a tractor with a rating of approximately 20 hp, categorising it as a lightweight model in its class. It was manufactured from 1983 to 1985. The tractor features a 3-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a 16-speed gearbox, and has an operating weight of between 2050 and 2161 pounds. It is suitable for operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

20 hp

Weight

2050 to 2161 pounds

Catalogue coverage

Variants represented

Richest spec table

45 rows

Recorded power

20 hp

Recorded weight

929 kg

Transmissions

16-speed shuttle

Production years

1983-1985

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Wet disc brakesReference

Open operator station.Reference

Variants

L1-20DT4WDReference

Engine

Kubota 1.4L 3-cyl dieselReference

Fuel tank29.1 LReference

Engine14.7 kWReference

Kubota D1402Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.4 LReference

Bore/Stroke84 x 81 mmReference

Power14.7 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed shuttleReference

TypeshuttleReference

Gears16 forward and reverseReference

Clutchdry discReference

Four gears in four ranges with shuttle shift.Reference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540/770/940/1250 (1.375)Reference

Dimensions

Wheelbase150 cmReference

Weight2050 to 2161 poundsReference

Front tire4.00-15Reference

2WD Rear tire9.5-22Reference

2WD Standard tires (ag)Front: 4.00-15. Rear: 9.5-22Reference

4WD Standard tires (ag)Front: 6-14. Rear: 9.5-22Reference

Length289 cmReference

Width125 cmReference

Height197 cmReference

2WD Weight929 kgReference

4WD Weight980 kgReference

2WD Ground clearance34 cmReference

4WD Ground clearance27 cmReference

2WD Front tread96 cmReference

4WD Front tread93 cmReference

Rear tread99/110 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Speeds

Forward speeds are 20% faster than reverse.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
