Tractor · 1986Unverified

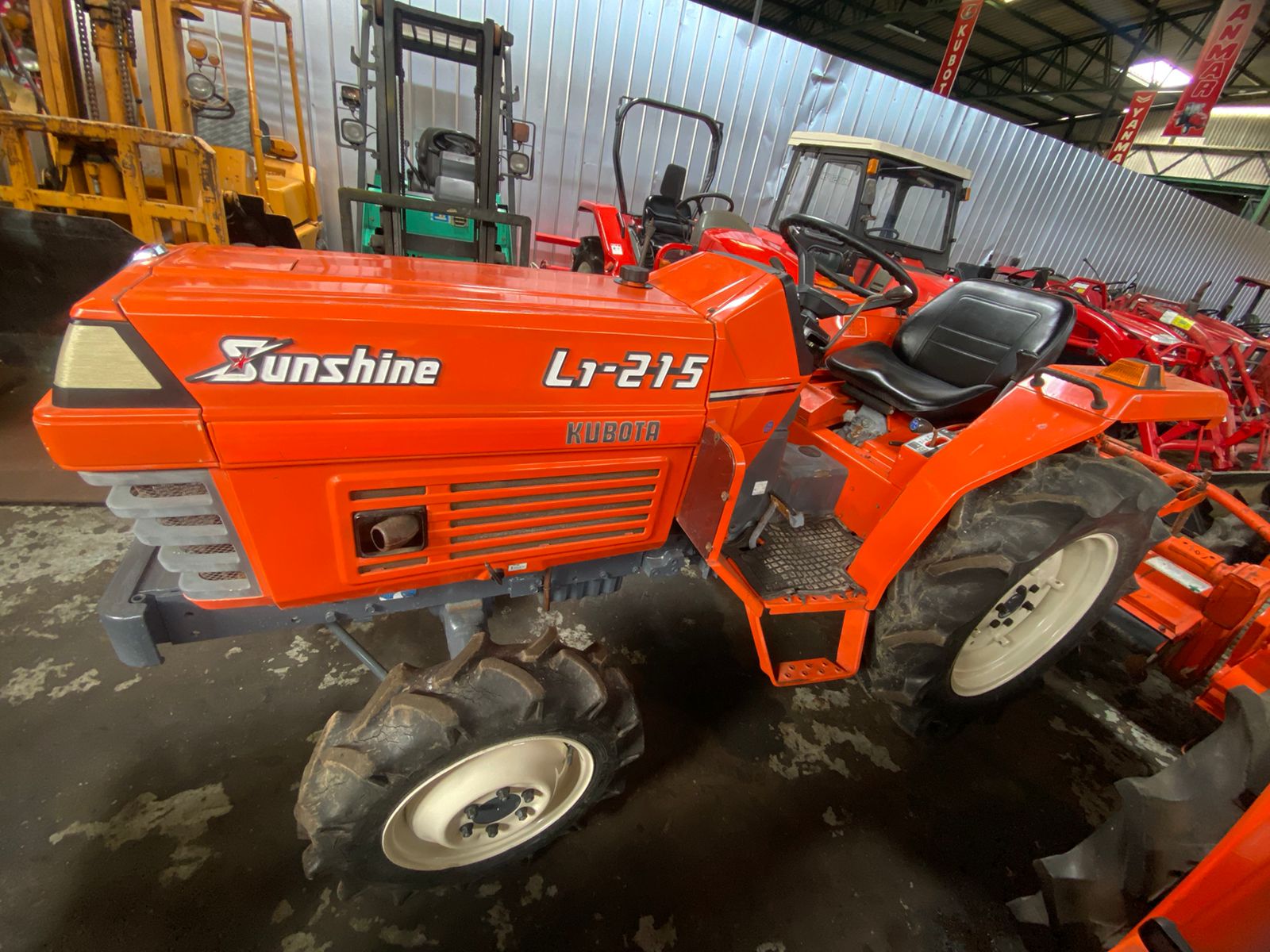

Kubota L1-215

Name: Kubota L1-215
Brand: Kubota

Kubota L1-215 — L1 Series · 21 hp. Reference specifications; pending source verification.

The Kubota L1-215 is a tractor with a power rating of approximately 21 hp, positioning it within the lighter category of its class. Manufactured from 1986 to 1988, it features a 3-cylinder diesel liquid-cooled engine, coupled with a four-wheel drive system and a 16-speed gearbox. The tractor's operating weight ranges from 2050 to 2161 pounds, and it is suitable for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

21 hp

Weight

2050 to 2161 pounds

Catalogue coverage

Variants represented

Richest spec table

44 rows

Recorded power

21 hp

Recorded weight

929 kg

Transmissions

16-speed shuttle

Production years

1986-1988

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Wet disc brakesReference

Open operator station.Reference

Variants

L1-215DT4WDReference

Engine

Kubota 1.3L 3-cyl dieselReference

Fuel tank29.1 LReference

Engine15.4 kWReference

Kubota D1302Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.3 LReference

Bore/Stroke82 x 82 mmReference

Power15.4 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed shuttleReference

TypeshuttleReference

Gears16 forward and reverseReference

Clutchdry discReference

Four gears in four ranges with shuttle shift.Reference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540/770/940/1250Reference

Dimensions

Wheelbase150 cmReference

Weight2050 to 2161 poundsReference

Front tire4.00-15Reference

2WD Rear tire9.5-22Reference

2WD Standard tires (ag)Front: 4.00-15. Rear: 9.5-22Reference

4WD Standard tires (ag)Front: 6-14. Rear: 9.5-22Reference

Length289 cmReference

Width125 cmReference

Height138 cmReference

2WD Weight929 kgReference

4WD Weight980 kgReference

2WD Ground clearance34 cmReference

4WD Ground clearance27 cmReference

2WD Front tread96 cmReference

4WD Front tread93 cmReference

Rear tread99/110 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
