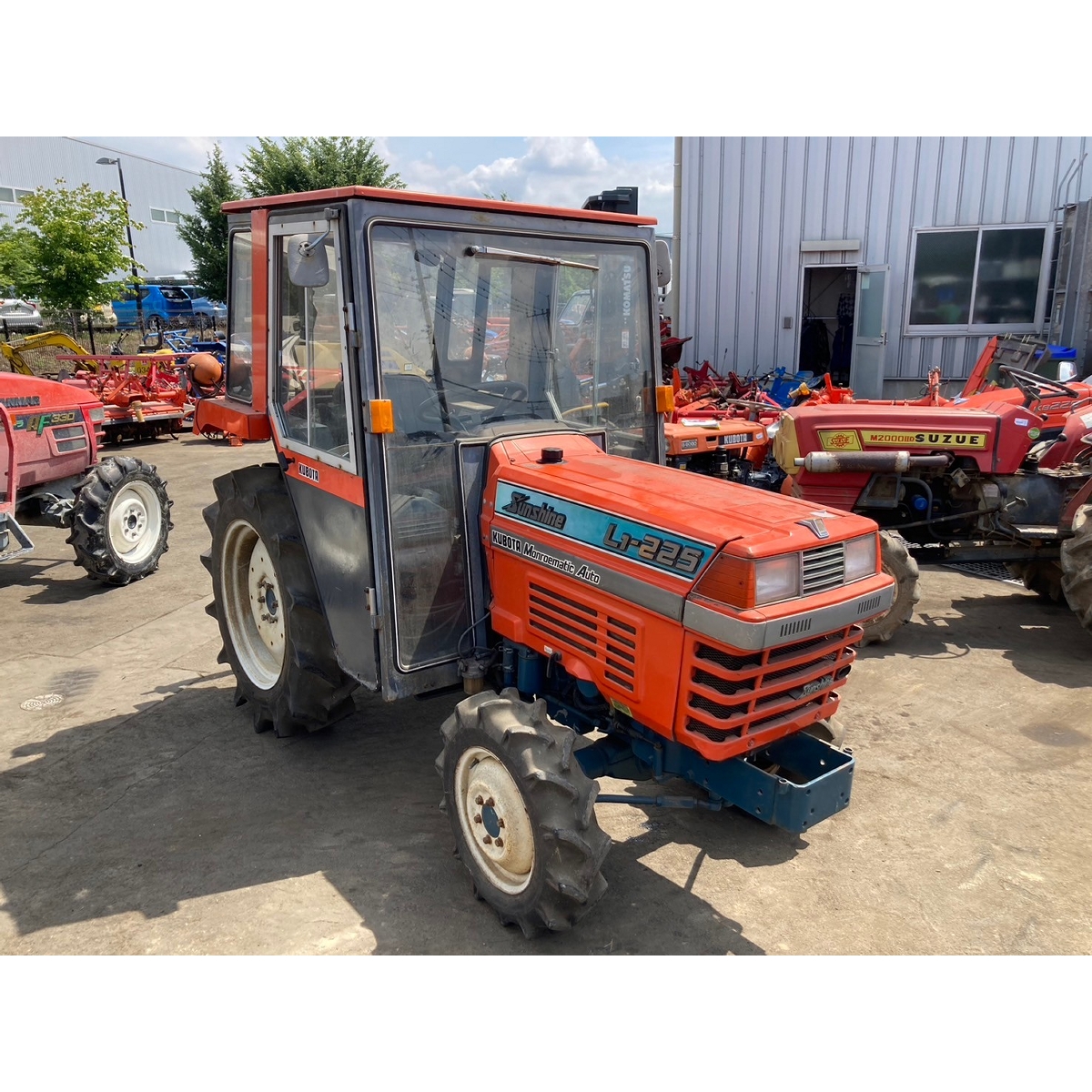

The Kubota L1-225 is a tractor with a rated power of 22 hp, positioning it at the lower end of the horsepower range within its class. The L1-225 was manufactured between 1986 and 1988. It features a 3-cylinder diesel liquid-cooled engine, coupled with four-wheel drive and a 16-speed gearbox. The tractor has an operating weight of 1088 kg and is suitable for working on land areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
1088 kg
Catalogue coverage
Variants represented
2
Richest spec table
38 rows
Recorded power
22 hp
Recorded weight
1088 kg
Transmissions
16-speed
Production years
1986-1988
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Wet disc brakesReference
Open operator station. Two-post ROPS.Reference
Variants
L1-2252WDReference
L1-225DT4WDReference
Engine
Kubota 1.5L 3-cyl dieselReference
Engine16.2 kWReference
Kubota D1462Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Power16.2 kWReference
Starter volts12Reference
Oil capacity5.7 LReference
Transmission
16-speedReference
Gears16 forward and reverseReference
Clutchdry discReference
Oil capacity26.0 LReference
Capacities
Fuel29.1 LReference
PTO & Hydraulics
Hydraulic system26.1 LReference
Capacity26.1 LReference
Rear PTO Type540/770/940/1250Reference
Dimensions
Wheelbase154 cmReference
Weight1088 kgReference
Front tire6x14Reference
Rear tire9.5x24Reference
Ag front6x14Reference
Ag rear9.5x24Reference
Lawn/turf front6x14Reference
Lawn/turf rear9.5x24Reference
Height (steering wheel)139 cmReference
Height (ROPS)219 cmReference
Ground clearance27 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
