Tractor · 1986Unverified

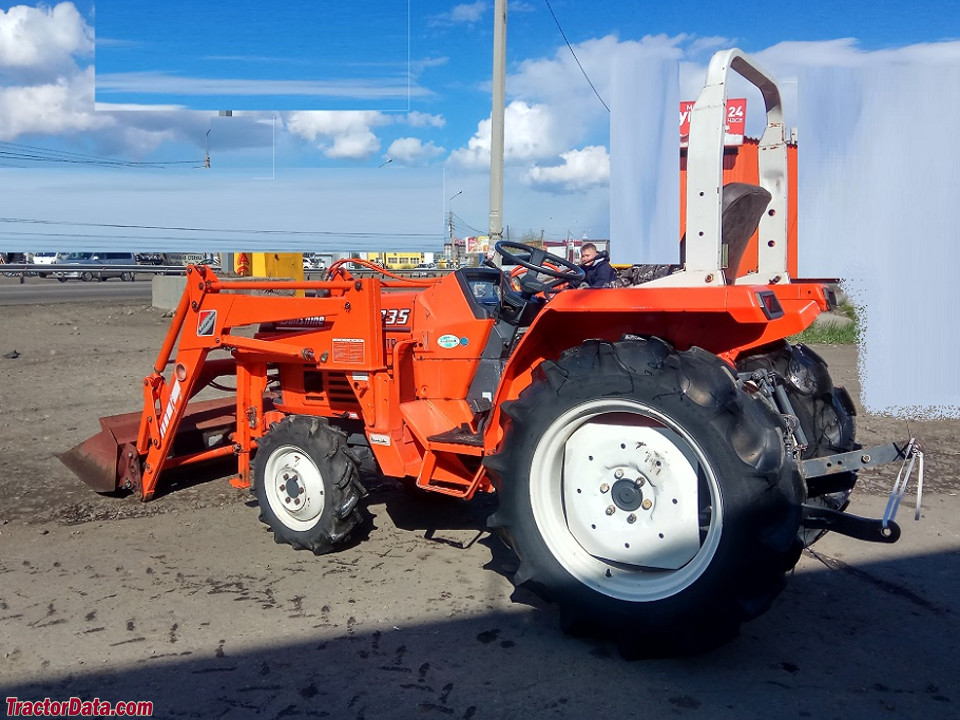

Kubota L1-235

Name: Kubota L1-235
Brand: Kubota

Kubota L1-235 — L1 Series · 23 hp. Reference specifications; pending source verification.

The Kubota L1-235 is a tractor with a rated power output of 23 hp, positioning it within the lighter end of its class. Manufactured between 1986 and 1988, this model features a 3-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a 16-speed gearbox. Its operating weight is listed as 2105 to 2227 pounds. The Kubota L1-235 is suitable for operations spanning up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

23 hp

Weight

2105 to 2227 pounds

Catalogue coverage

Variants represented

Richest spec table

44 rows

Recorded power

23 hp

Recorded weight

954 kg

Transmissions

16-speed shuttle

Production years

1986-1988

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Wet disc brakesReference

Open operator station.Reference

Variants

L1-235DT4WDReference

Engine

Kubota 1.5L 3-cyl dieselReference

Fuel tank29.1 LReference

Engine16.9 kWReference

Kubota D1462Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke86 x 81 mmReference

Power16.9 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed shuttleReference

TypeshuttleReference

Gears16 forward and reverseReference

Clutchdry discReference

Four gears in four ranges with shuttle shift.Reference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540/770/940/1250Reference

Dimensions

Wheelbase154 cmReference

Weight2105 to 2227 poundsReference

Front tire4.00-15Reference

2WD Rear tire9.5-24Reference

2WD Standard tires (ag)Front: 4.00-15. Rear: 9.5-24Reference

4WD Standard tires (ag)Front: 6-14. Rear: 9.5-24Reference

Length294 cmReference

Width125 cmReference

Height140 cmReference

2WD Weight954 kgReference

4WD Weight1010 kgReference

2WD Ground clearance34 cmReference

4WD Ground clearance27 cmReference

2WD Front tread96 cmReference

4WD Front tread93 cmReference

Rear tread99/110 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
