Tractor · 1983Unverified

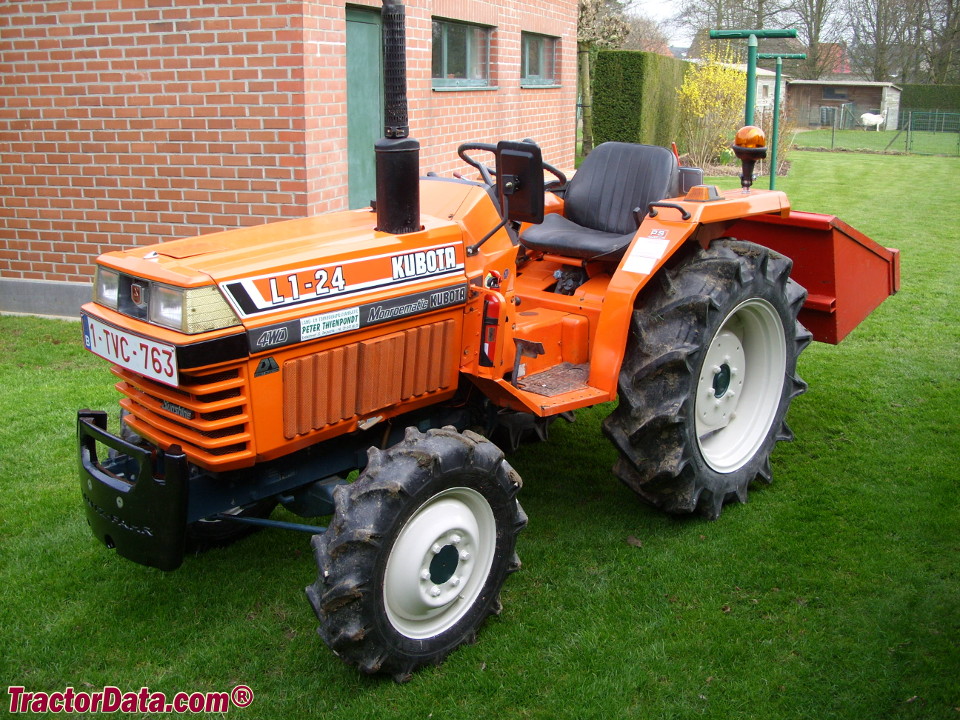

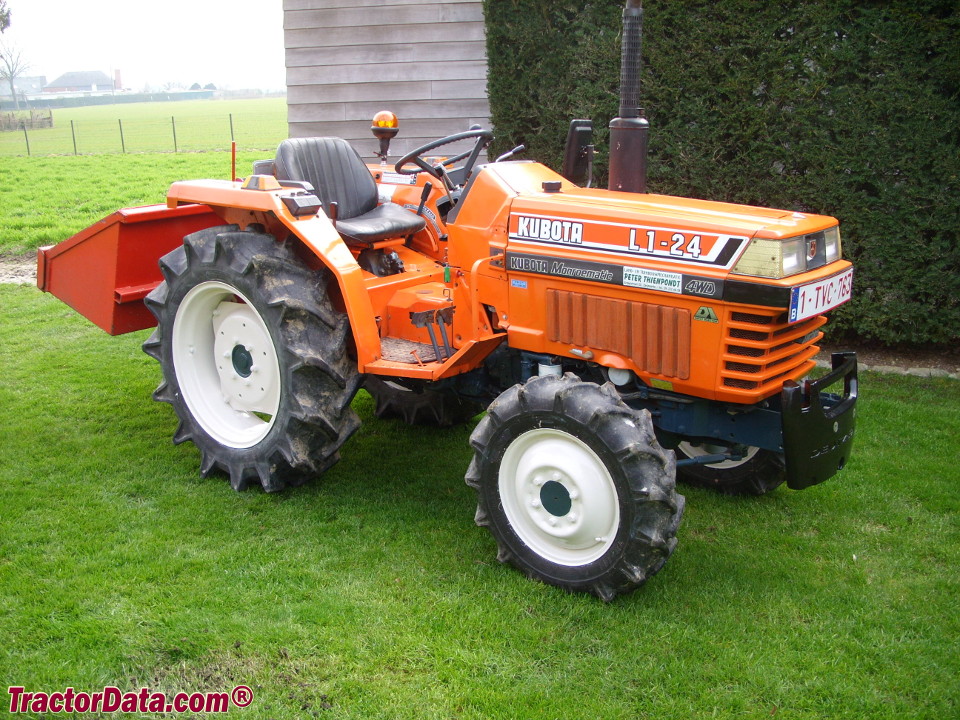

Kubota L1-24
Kubota L1-24 — L1 Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
2183 to 2359 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Wet disc brakesReference
Open operator station.Reference
Variants
L1-24DT4WDReference
Engine
Kubota 1.5L 3-cyl dieselReference
Fuel tank29.1 LReference
Engine17.7 kWReference
Kubota D1462Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke86 x 81 mmReference
Power17.7 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed shuttleReference
TypeshuttleReference
Gears16 forward and reverseReference
Clutchdry discReference
Four gears in four ranges with shuttle shift.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540/770/940/1250 (1.375)Reference
Dimensions
Wheelbase154 cmReference
Weight2183 to 2359 poundsReference
Front tire5.00-15Reference
2WD Rear tire11.2-24Reference
2WD Standard tires (ag)Front: 5.00-15. Rear: 11.2-24Reference
4WD Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference
Length294 cmReference
Width132 cmReference
Height197 cmReference
2WD Weight990 kgReference
4WD Weight1070 kgReference
2WD Ground clearance37 cmReference
4WD Ground clearance31 cmReference
2WD Front tread98 to 114 cmReference
4WD Front tread104 cmReference
Rear tread102 to 132 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
Forward speeds are 20% faster than reverse.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
