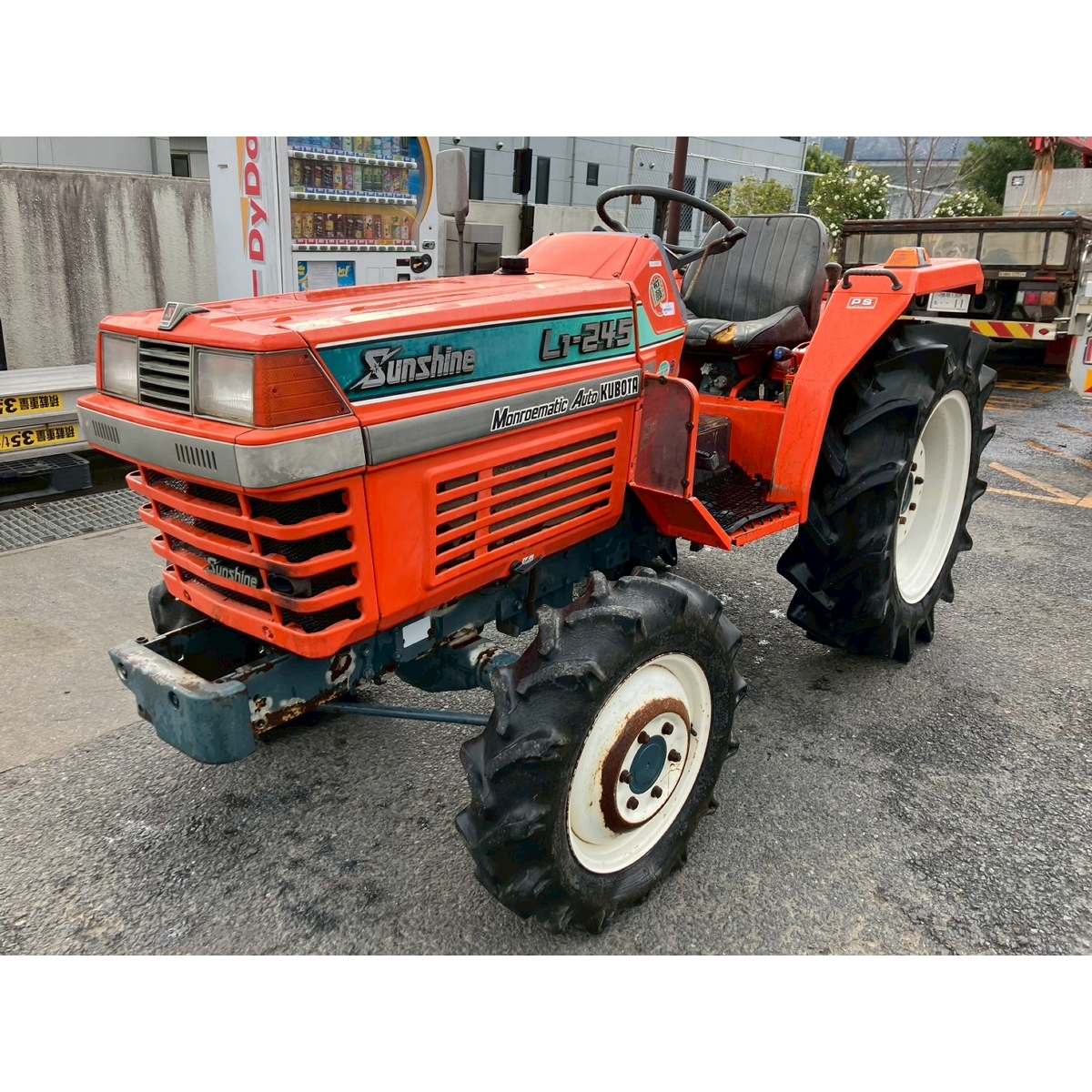

The Kubota L1-245 is a tractor with a rated power output of 24 hp, positioned at the lower end of its class. It was manufactured between 1986 and 1988. This model features a 3-cylinder diesel liquid-cooled engine and four-wheel drive, paired with a 16-speed gearbox. It is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Catalogue coverage
Variants represented
2
Richest spec table
26 rows
Recorded power
24 hp
Transmissions
16-speed shuttle
Production years
1986-1988
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Wet disc brakesReference
Open operator station.Reference
Variants
L1-245DT4WDReference
Engine
Kubota 1.5L 3-cyl dieselReference
Fuel tank29.1 LReference
Engine17.7 kWReference
Kubota D1462Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke86 x 81 mmReference
Power17.7 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed shuttleReference
TypeshuttleReference
Gears16 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540/770/940/1250Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
