Tractor · 1986Unverified

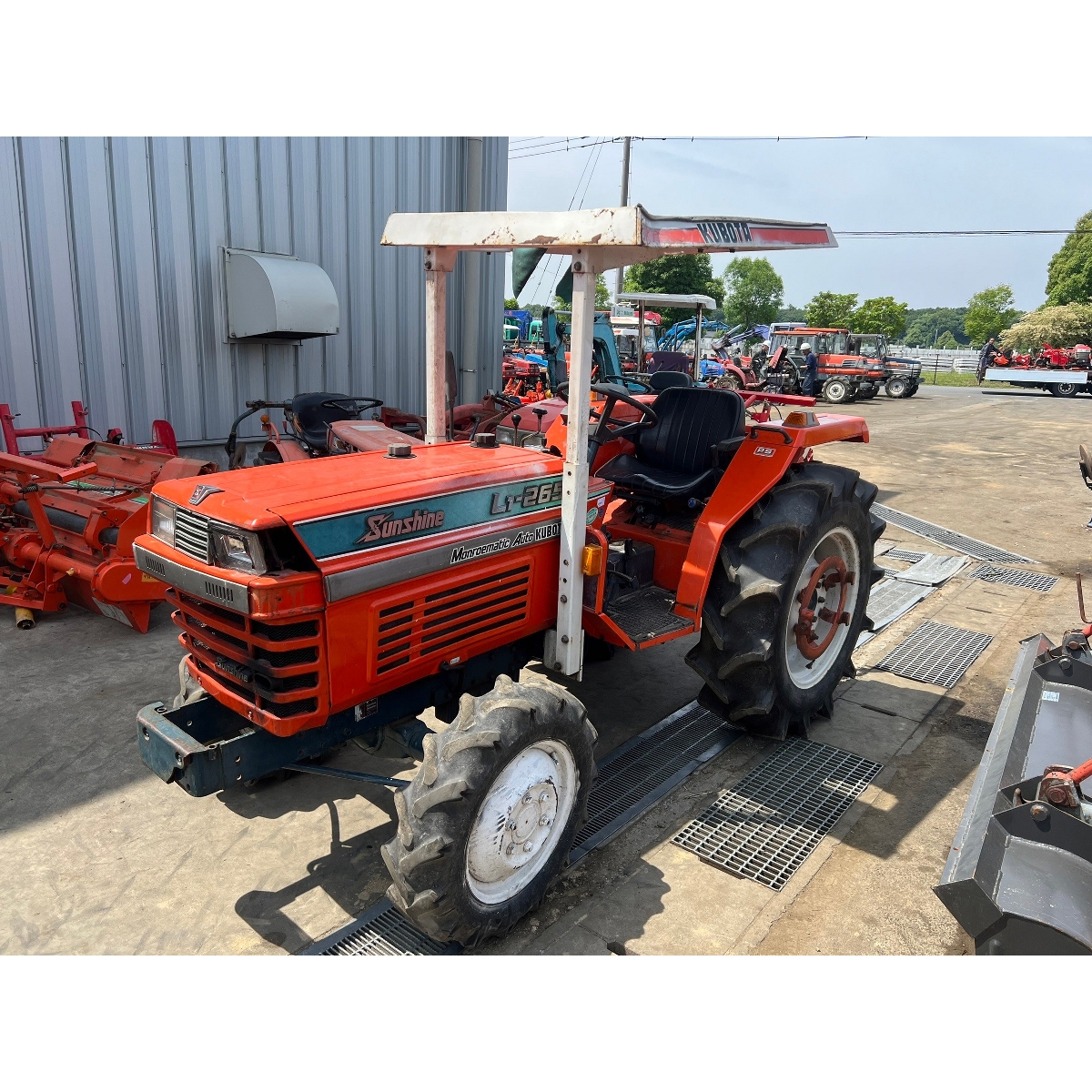

Kubota L1-265
Kubota L1-265 — L1 Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
2381 to 2535 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Engine
Kubota 1.5L 4-cyl dieselReference
Engine19.1 kWReference
Kubota V1512Reference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement1.5 LReference
Bore/Stroke76 x 82 mmReference
Power19.1 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)18.9 kWReference
Rear TypeIReference
Rear lift850 kgReference
Rear PTO Type578/805/1000/1030 (1.375)Reference
Dimensions
Wheelbase168 cmReference
Weight2381 to 2535 poundsReference
Front tire5-00-15Reference
2WD Rear tire12.4-24Reference
2WD Standard tires (ag)Front: 5-00-15. Rear: 12.4-24Reference
4WD Standard tires (ag)Front: 7-16. Rear: 12.4-24Reference
Length309 cmReference
Width137 cmReference
Height141 cmReference
2WD Weight1080 kgReference
4WD Weight1149 kgReference
2WD Ground clearance35 cmReference
4WD Ground clearance31 cmReference
2WD Front tread104 to 145 cmReference
4WD Front tread104 cmReference
Rear tread104 to 151 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
