Tractor · 1983Unverified

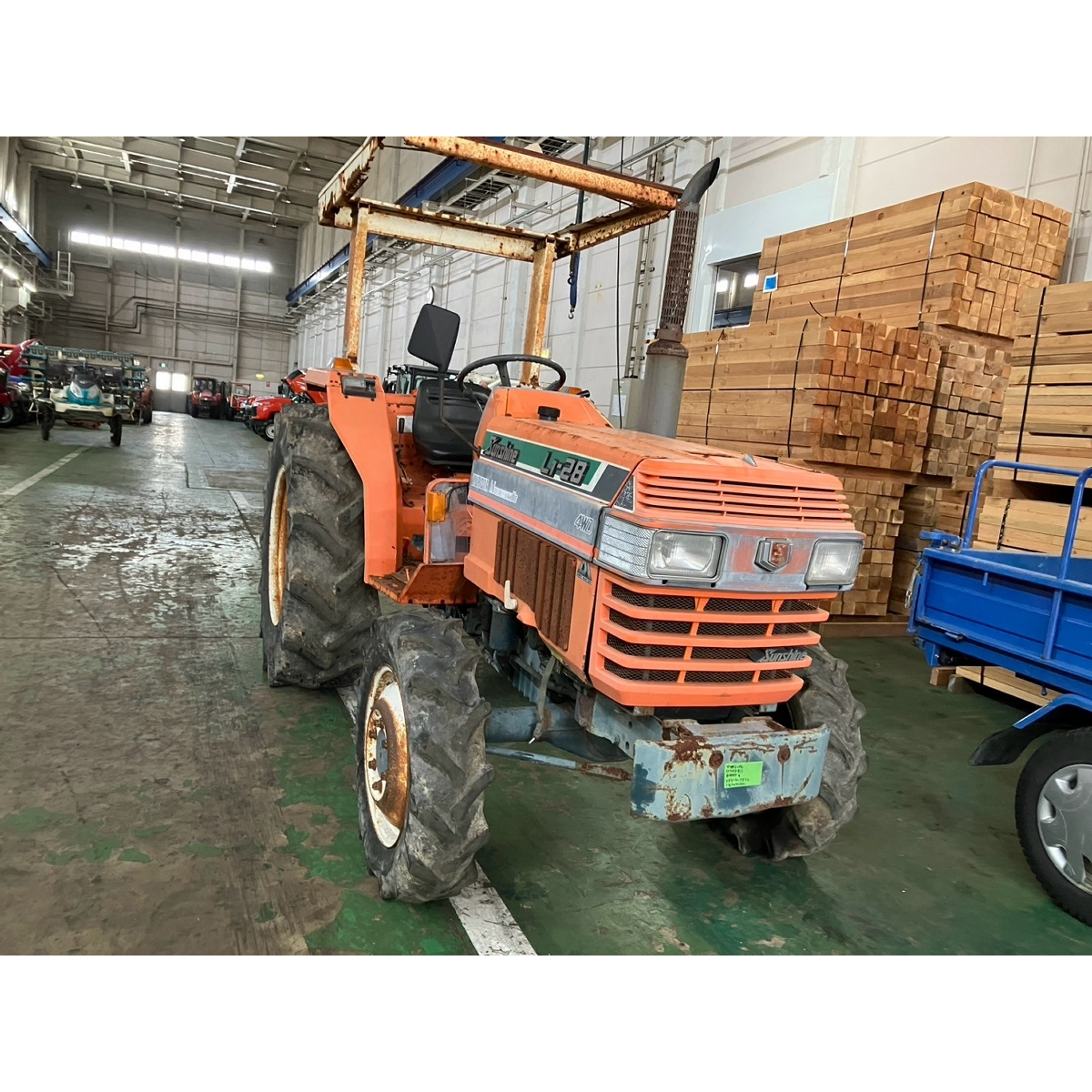

Kubota L1-28

Name: Kubota L1-28
Brand: Kubota

Kubota L1-28 — L1 Series · 28 hp. Reference specifications; pending source verification.

The Kubota L1-28 is a tractor with a rated power output of 28 hp, positioning it at the lighter end of its class. It was manufactured between 1983 and 1985. The tractor features a 4-cylinder diesel liquid-cooled engine, coupled with four-wheel drive and a 16-speed gearbox. Its listed operating weight ranges from 2546 to 2624 pounds, and it is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

28 hp

Weight

2546 to 2624 pounds

Catalogue coverage

Variants represented

Richest spec table

44 rows

Recorded power

28 hp

Recorded weight

1154 kg

Transmissions

16-speed shuttle

Production years

1983-1985

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Wet disc brakesReference

Open operator station.Reference

Variants

L1-28DT4WDReference

Engine

Kubota 1.5L 4-cyl dieselReference

Fuel tank29.1 LReference

Engine20.6 kWReference

Kubota V1512Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Power20.6 kWReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed shuttleReference

TypeshuttleReference

Gears16 forward and reverseReference

Clutchdry discReference

Four gears in four ranges with shuttle shift.Reference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540/770/940/1250 (1.375)Reference

Dimensions

Wheelbase173 cmReference

Weight2546 to 2624 poundsReference

Front tire5.00-15Reference

2WD Rear tire13.6-24Reference

2WD Standard tires (ag)Front: 5.00-15. Rear: 13.6-24Reference

4WD Standard tires (ag)Front: 7-16. Rear: 13.6-24Reference

Length315 cmReference

Width141 cmReference

Height197 cmReference

2WD Weight1154 kgReference

4WD Weight1190 kgReference

2WD Ground clearance36 cmReference

4WD Ground clearance31 cmReference

2WD Front tread104 to 145 cmReference

4WD Front tread104 cmReference

Rear tread107 to 154 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Speeds

Forward speeds are 20% faster than reverse.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
