Tractor · 1988Unverified

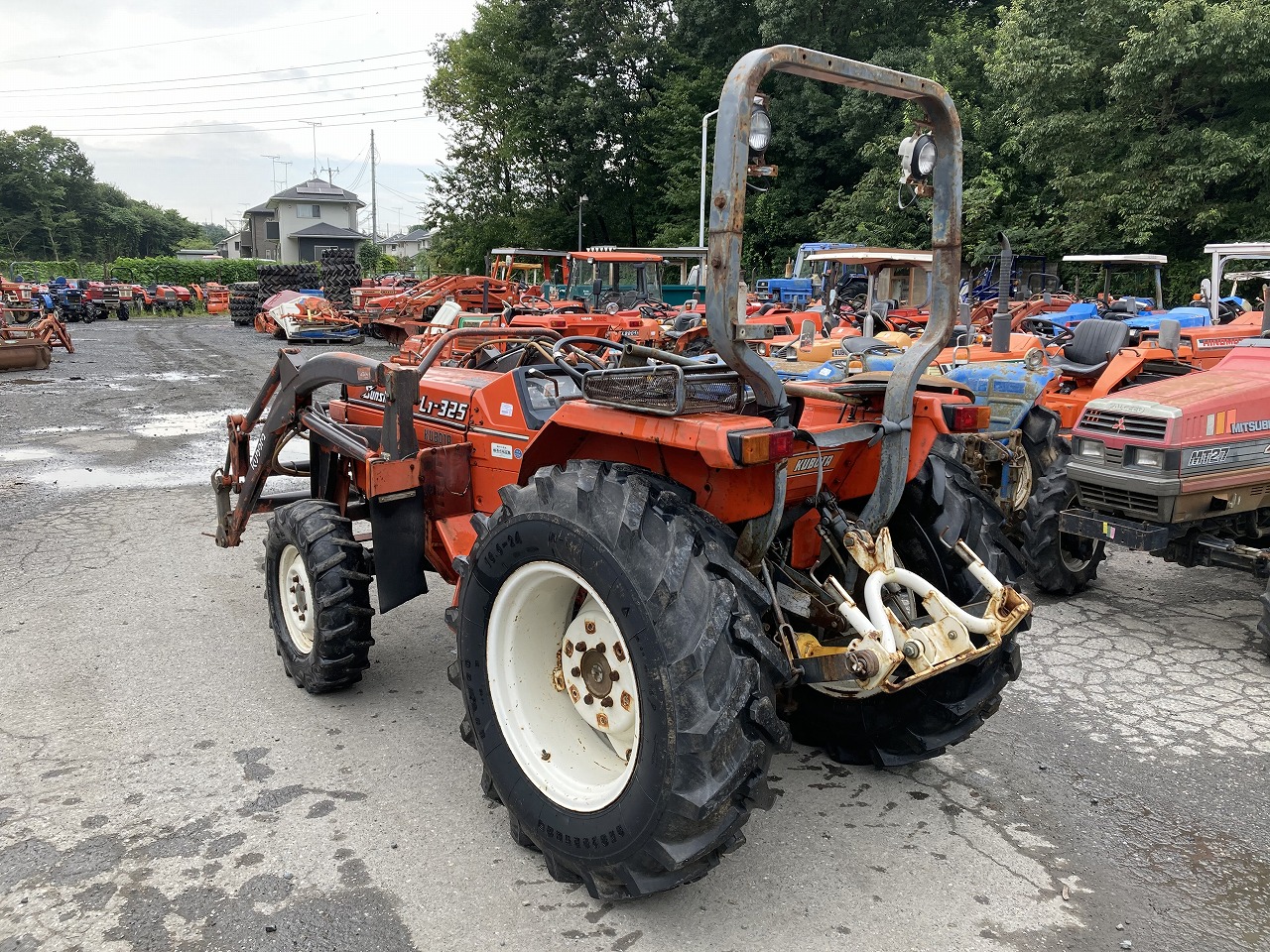

Kubota L1-325
Kubota L1-325 — L1 Series · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1389 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Two-post ROPS.Reference
Engine
Kubota 1.7L 4-cyl dieselReference
Engine23.6 kWReference
Kubota V1702Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.7 LReference
Bore/Stroke79 x 91 mmReference
Power23.6 kWReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)22.0 kWReference
Pump flow23.5 lpmReference
Rear TypeIReference
Rear lift729 kgReference
Rear PTO Type634/733/1108/1350 (1.375)Reference
Dimensions
Wheelbase173 cmReference
Weight1389 kgReference
Front tire8-16Reference
Rear tire13.6-24Reference
Standard tires (ag)Front: 8-16. Rear: 13.6-24Reference
Length318 cmReference
Width151 cmReference
Height (ROPS)230 cmReference
Ground clearance36 cmReference
Front tread119 cmReference
Rear tread107 to 154 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
