Tractor · 1987Unverified

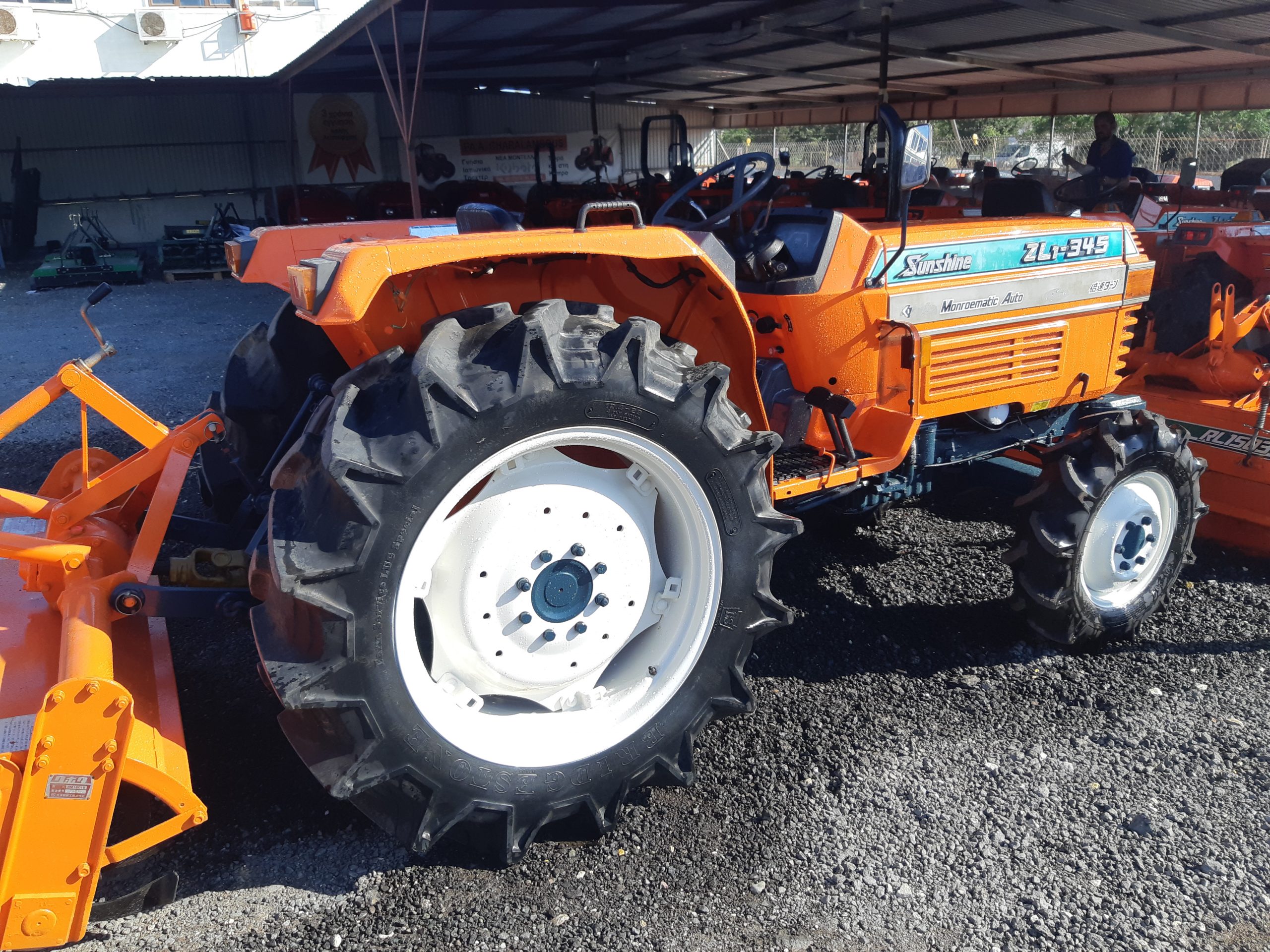

Kubota L1-345
Kubota L1-345 — L1 Series · 33 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Weight
3142 to 3329 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
L1-345DFour-wheel driveReference
Engine
Kubota 1.5L 4-cyl dieselReference
Fuel tank46.2 LReference
Engine25.4 kWReference
Kubota V1512Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement1.5 LReference
Bore/Stroke76 x 82 mmReference
Power25.4 kWReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
Four gears in four ranges with shuttle shift.Reference
PTO & Hydraulics
PTO (claimed)24.4 kWReference
Rear TypeJIS1Reference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM545@2700Reference
Engine RPM942@2700Reference
Engine RPM913@2700Reference
Engine RPM1242@2700Reference
Dimensions
Wheelbase184 cmReference
Weight3142 to 3329 poundsReference
Front tire5.50-16Reference
2WD Rear tire12.4-28Reference
2WD Standard tires (ag)Front: 5.50-16. Rear: 12.4-28Reference
4WD Standard tires (ag)Front: 8-16. Rear: 12.4-28Reference
Length345 cmReference
Width146 cmReference
Height (exhaust)197 cmReference
2WD Weight1425 kgReference
4WD Weight1510 kgReference
2WD Ground clearance37 cmReference
4WD Ground clearance33 cmReference
2WD Front tread114 to 146 cmReference
4WD Front tread119 cmReference
Rear tread114 to 160 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
