Tractor · 1987Unverified

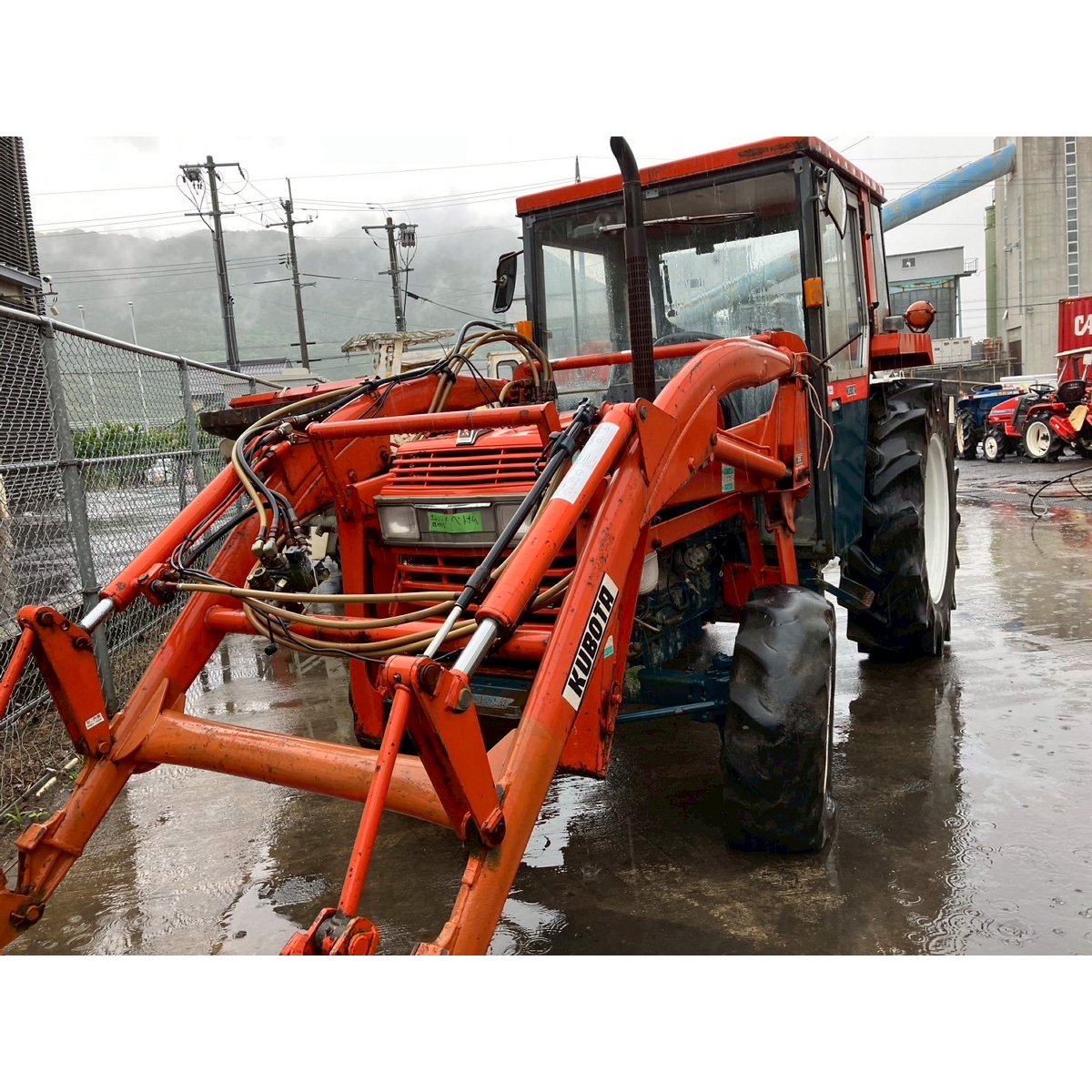

Kubota L1-455
Kubota L1-455 — L1 Series · 43 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
43 hp
Weight
3682 to 3924 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Four-post ROPS.Reference
Variants
L1-455D4WDReference
L1-455DNloader-compatibleReference
Engine
Kubota 2.4L 5-cyl dieselReference
Fuel tank46.2 LReference
Engine33.6 kWReference
Kubota F22402Reference
dieselReference
5-cylinderReference
liquid-cooled inlineReference
Displacement2.4 LReference
Bore/Stroke87 x 82 mmReference
Power33.6 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and 15 reverseReference
Four gears in four ranges with shuttle shift.Reference
PTO & Hydraulics
PTO (claimed)32.3 kWReference
Rear TypeJIS1Reference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM544@2600Reference
Engine RPM714@2600Reference
Engine RPM912@2600Reference
Engine RPM1196@2600Reference
Dimensions
Wheelbase194 cmReference
Weight3682 to 3924 poundsReference
Front tire6.00-16Reference
2WD Rear tire13.6-28Reference
2WD Standard tires (ag)Front: 6.00-16. Rear: 13.6-28Reference
4WD Standard tires (ag)Front: 9.5-16. Rear: 13.6-28Reference
4WD Optional tires (ag)Front: 8.3-20. Rear: 12.4-32 (DN)Reference
Length355 cmReference
Width155 cmReference
Height (ROPS)217 cmReference
2WD Weight1670 kgReference
4WD Weight1779 kgReference
2WD Ground clearance38 cmReference
4WD Ground clearance34 cmReference
2WD Front tread114 to 146 cmReference
4WD Front tread121 cmReference
Rear tread115 to 161 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
