Tractor · 1971Unverified

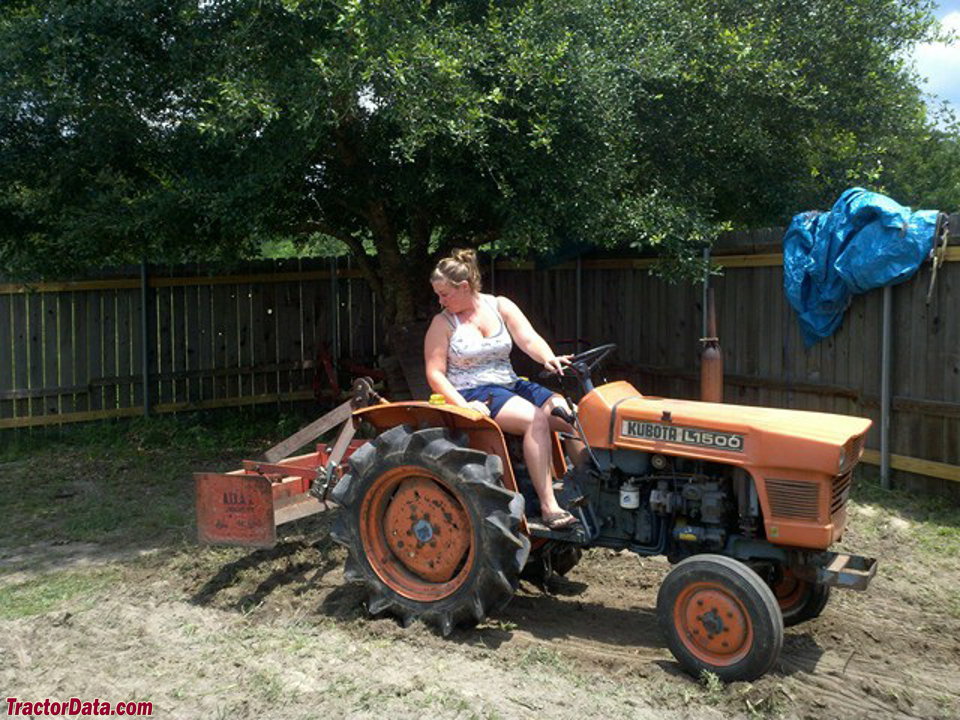

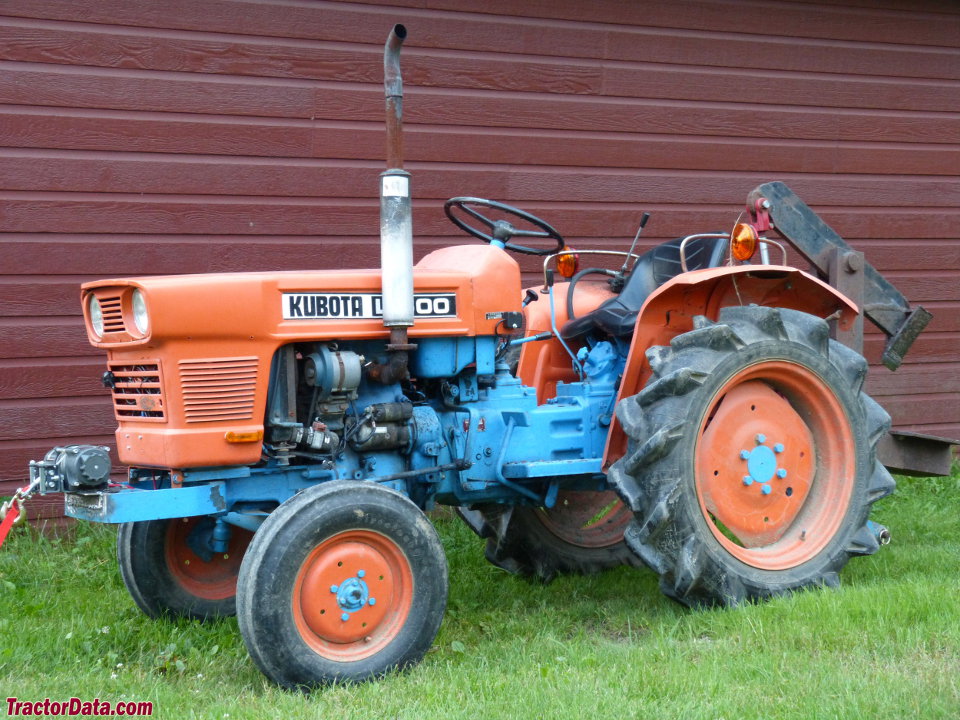

Kubota L1500
Kubota L1500 — Compact Utility tractor · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
1506 to 1653 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
The Kubota model L1500 is similar to the model L175.Reference
Two- or four-wheel driveReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station.Reference
Variants

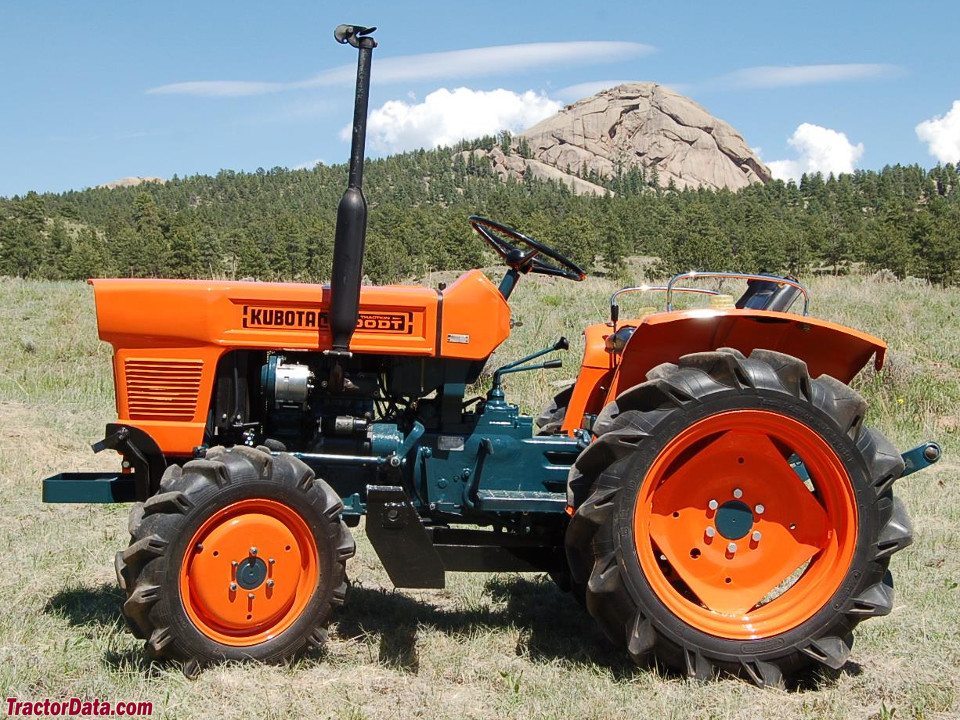

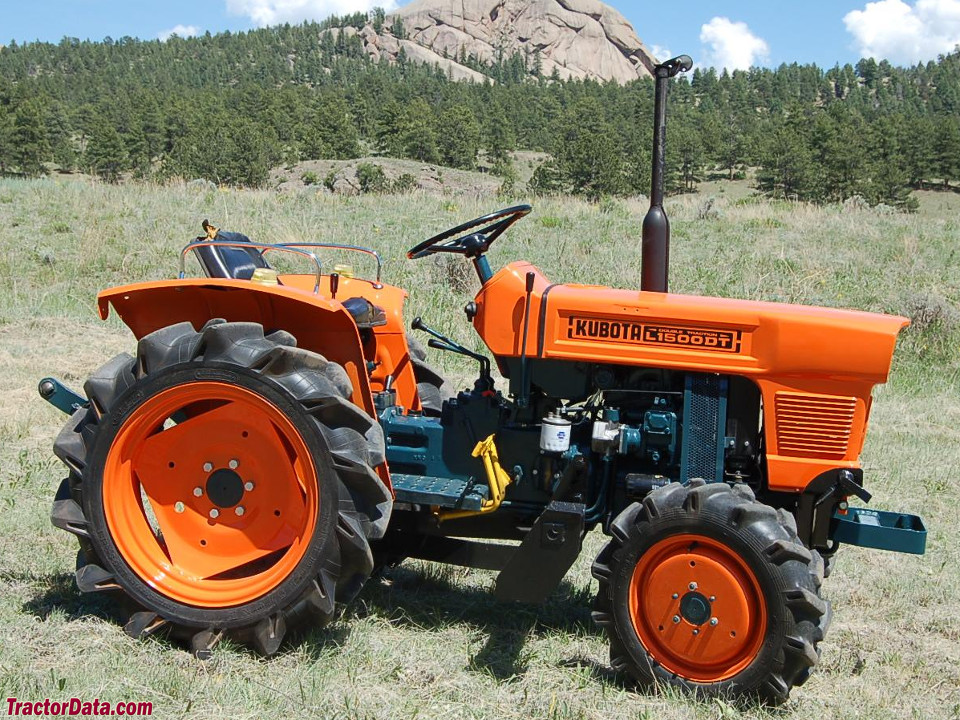

L1500DT4WDReference
Engine
Kubota 0.7L 2-cyl dieselReference
Fuel tank22.0 LReference
Engine11.0 kWReference
Kubota Z750Reference
dieselReference
2-cylinderReference
liquid-cooled inlineReference
Displacement0.7 LReference
Bore/Stroke76 x 82 mmReference
Power11.0 kWReference
Cooling systemthermosyphonReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
Pump flow14.0 lpmReference
Rear TypeIReference
Rear lift600 kgReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2533Reference
Engine RPM850@2800Reference
Engine RPM1185@2800Reference
Engine RPM1371@2800Reference
Dimensions
Wheelbase134 cmReference
Weight1506 to 1653 poundsReference
Front tire4.00-12Reference
2WD Rear tire8.3/8-22Reference
2WD Standard tires (ag)Front: 4.00-12. Rear: 8.3/8-22Reference
4WD Standard tires (ag)Front: 6-14. Rear: 8.3/8-22Reference
Length232 cmReference
Width112 cmReference
2WD Height (exhaust)192 cmReference
4WD Height (exhaust)193 cmReference
2WD Weight683 kgReference
4WD Weight749 kgReference
Ground clearance45 cmReference
Front tread82/88 cmReference
Rear tread100 to 0 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
