Tractor · 1978Unverified

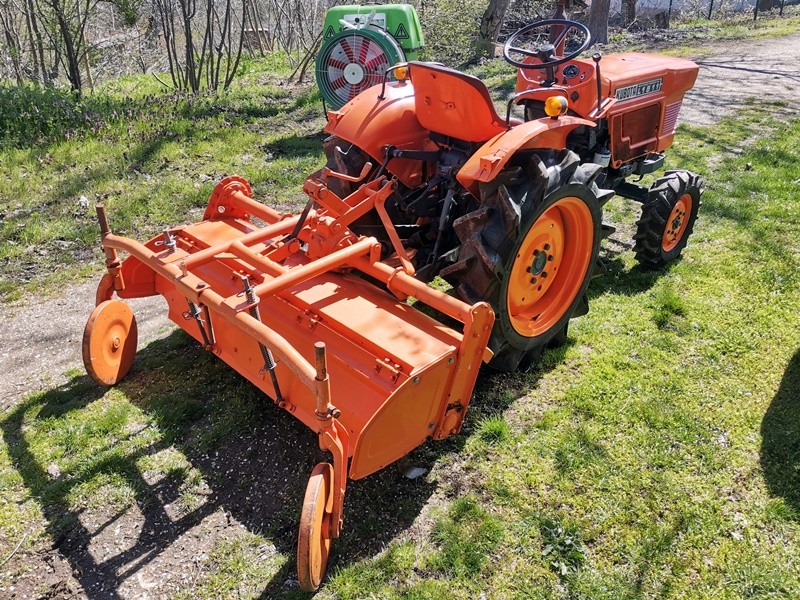

Kubota L1511
Kubota L1511 — L01 Series · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
1576 to 1753 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
L1501gear 2WDReference
L1501DTgear 4WDReference
L1511hydrostatic 2WDReference
L1511DThydrostatic 4WDReference
Engine
Kubota 0.7L 2-cyl dieselReference
Fuel tank22.0 LReference
Engine11.0 kWReference
Kubota Z751Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement0.7 LReference
Bore/Stroke76 x 82 mmReference
Power11.0 kWReference
Cooling systemthermosiphonReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2430Reference
Engine RPM908@2800Reference
Engine RPM1252@2800Reference
Dimensions
Wheelbase138 cmReference
Weight1576 to 1753 poundsReference
Front tire4.00-12Reference
2WD Rear tire8.3/8-22Reference
2WD Standard tires (ag)Front: 4.00-12. Rear: 8.3/8-22Reference
4WD Standard tires (ag)Front: 6-14. Rear: 8.3/8-22Reference
Length236 cmReference
Width112 cmReference
Height (steering wheel)132 cmReference
2WD Weight714 kgReference
4WD Weight795 kgReference
2WD Ground clearance29 cmReference
4WD Ground clearance24 cmReference
2WD Front tread82 cmReference
4WD Front tread93 cmReference
Rear tread88/100 cmReference
L1511 Serial Number Location
Serial number plate on the left side of the L1511 tractor frame, just ahead of the clutch pedal.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
