Tractor · 1973Unverified

Kubota L175

Name: Kubota L175
Brand: Kubota

Kubota L175 — Sub-Compact Utility tractor · 17 hp. Reference specifications; pending source verification.

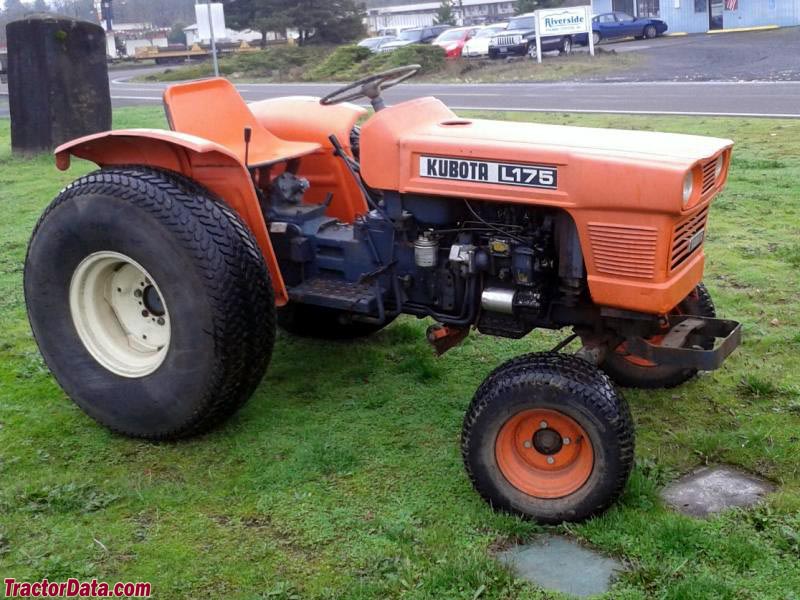

The Kubota L175 is a compact tractor model with a rated output of 17 hp, making it one of the more compact options in its class. Produced between 1973 and 1976, it is equipped with a 2-cylinder diesel liquid-cooled engine, which drives through two-wheel drive via an 8-speed gearbox. The listed weight of the L175 is 648 kg, suitable for tasks involving up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

17 hp

Weight

648 kg

Catalogue coverage

Variants represented

Richest spec table

83 rows

Recorded power

17 hp

Recorded weight

648 kg

Transmissions

8-speed gear

Production years

1973-1976

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Sub-Compact Utility tractorReference

Built in JapanReference

Two-wheel driveReference

Differential lockmechanical rearReference

Manual steeringReference

Open operator station.Reference

Engine

Kubota 0.7L 2-cyl dieselReference

Fuel tank22.7 LReference

Engine12.7 kWReference

Kubota Z750-AReference

dieselReference

2-cylinderReference

liquid-cooledReference

Displacement0.7 LReference

Bore/Stroke76 x 82 mmReference

Power12.7 kWReference

Compression21:1Reference

Rated RPM2800Reference

Starter volts12Reference

Oil capacity3.5 LReference

Coolant capacity5.3 LReference

Intake valve clearance0.203 mmReference

Exhaust valve clearance0.203 mmReference

Fuel TypeDieselReference

No of Cylinders2-cylinderReference

Rated engine speed2,800Reference

Bore and stroke3.00x3.219 inchesReference

Compression ratio21:1Reference

Cooling systemliquid-cooledReference

Transmission

8-speed gearReference

TypegearReference

Gears8 forward and 2 reverseReference

Oil capacity22.0 LReference

forward and reverse options8 forward and 2 reverseReference

PTO & Hydraulics

Pressure117.2 barReference

Valves1Reference

Total flow14.0 lpmReference

Rear TypeIReference

Rear lift612 kgReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2530Reference

Engine RPM1000@2360Reference

Front PTOindependentReference

Clutchelectro-magneticReference

Engine RPM2800@2800Reference

Dimensions

Wheelbase149 cmReference

Weight648 kgReference

Front tire4.00-12Reference

Rear tire8.3/8-24Reference

Ag front4.00-12Reference

Ag rear8.3/8-24Reference

Lawn/turf front20x8.00-10Reference

Lawn/turf rear13.6-16Reference

Length240 cmReference

Width120 cmReference

Height (steering wheel)129 cmReference

Ground clearance33 cmReference

Front tread97 cmReference

Rear tread100 cmReference

Kubota L175 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

Kubota K605 Backhoe

Backhoe typeKubota K605 BackhoeReference

Speeds

With 13.6-16 R3 rear tires.Reference

General

Make & ModelKubotaReference

Capacities

Capacity45.3 ciReference

Crankcase oil volume3.7 qtsReference

Power

Rated Power17 hpReference

PTO

Rear PTO PowerAvailableReference

Front PTO PowerAvailableReference

Hydraulics

Maximum operating pressure1,700 psiReference

Remote Valves1Reference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity612.3 kgReference

Dimensions & weight

Overall Height129 cmReference

Overall Length240 cmReference

Overall Width120.9 cmReference

Wheels & tyres

Rear wheel tread range8.3/8-24 inchReference

Front Wheel tread range4.00-12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
