Tractor · 1978Unverified

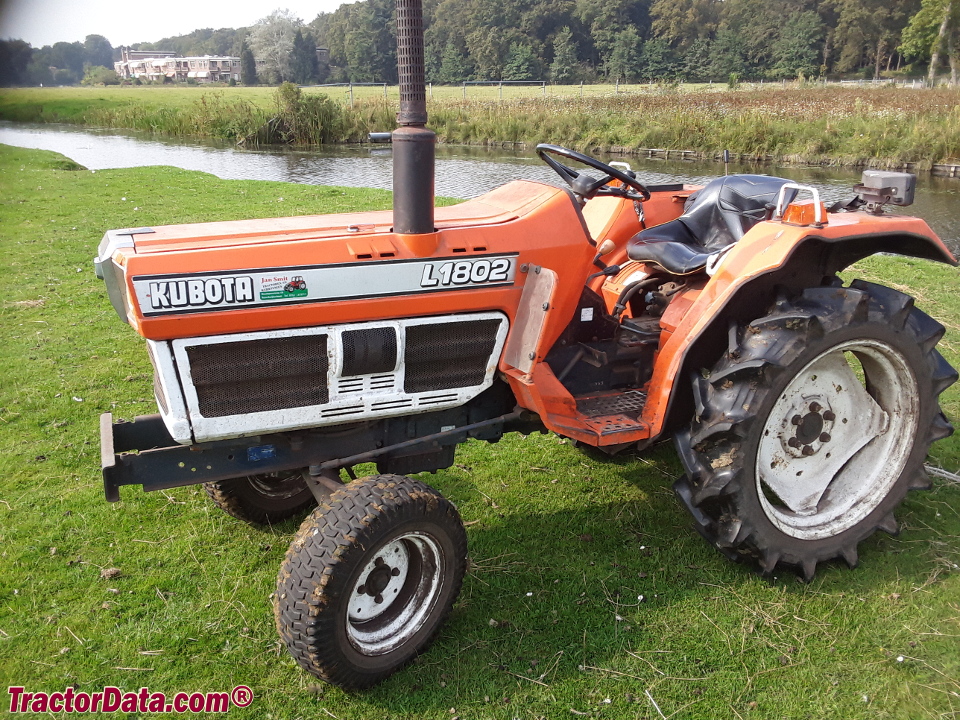

Kubota L1802

Name: Kubota L1802
Brand: Kubota

Kubota L1802 — L02 Series · 18 hp. Reference specifications; pending source verification.

The Kubota L1802 is a compact tractor with a rated output of 18 hp, making it suitable for smaller-scale operations. It was produced from 1978 to 1985. The tractor features a 3-cylinder diesel liquid-cooled engine and a 16-speed gearbox, driving through four-wheel drive. Its listed weight ranges from 1742 to 1940 pounds, and it is intended for use in areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

18 hp

Weight

1742 to 1940 pounds

Catalogue coverage

Variants represented

Richest spec table

47 rows

Recorded power

18 hp

Recorded weight

790 kg

Transmissions

16-speed

Production years

1978-1985

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Built in JapanReference

Two- or four-wheel driveReference

Open operator station.Reference

Variants

L18022WDReference

L1802DT4WDReference

Engine

Kubota 1.1L 3-cyl dieselReference

Engine13.3 kWReference

Kubota D1102Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.1 LReference

Bore/Stroke76 x 81 mmReference

Power13.3 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speedReference

Gears16 forward and 4 reverseReference

Four gears, plus reverse, in four ranges.Reference

PTO & Hydraulics

Pump flow14.4 lpmReference

Rear TypeJIS1Reference

Rear PTO Type540 (1.375)Reference

Engine RPM556@2500Reference

Engine RPM774@2500Reference

Engine RPM938@2500Reference

Engine RPM1250@2500Reference

Dimensions

Wheelbase150 cmReference

Weight1742 to 1940 poundsReference

Front tire4.00-12Reference

2WD Rear tire8.3-24Reference

2WD Standard tires (ag)Front: 4.00-12. Rear: 8.3-24Reference

4WD Standard tires (ag)Front: 6-14. Rear: 8.3-24Reference

Length257 cmReference

2WD Width116 cmReference

4WD Width118 cmReference

Height (exhaust)195 cmReference

2WD Weight790 kgReference

4WD Weight879 kgReference

2WD Front tread88 cmReference

4WD Front tread93 cmReference

2WD Rear tread91/103 cmReference

4WD Rear tread93/105 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
