Tractor · 1977Unverified

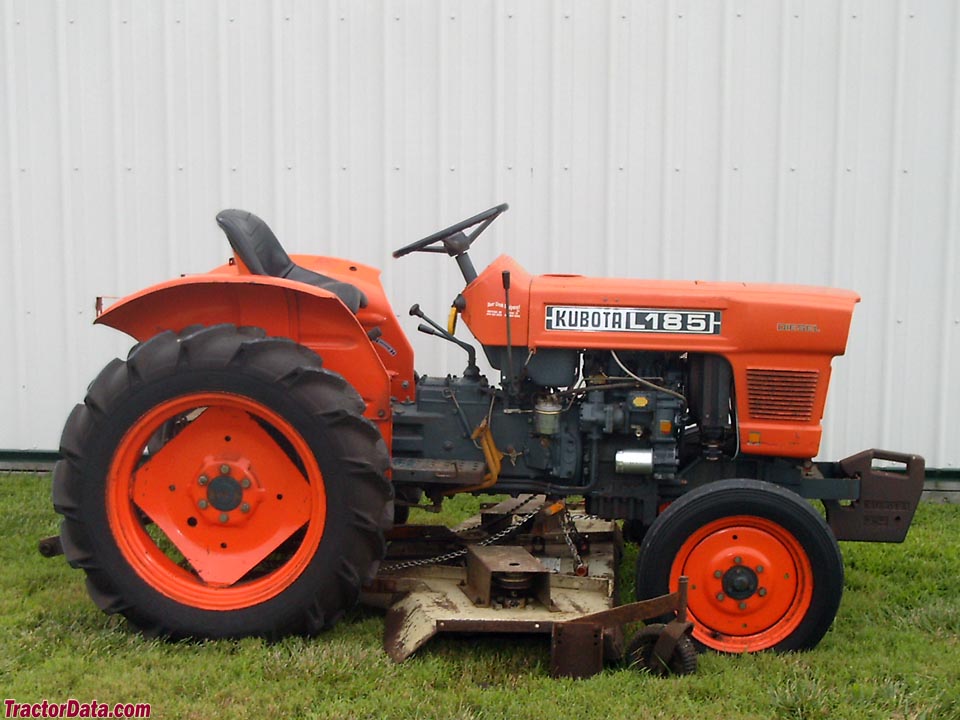

Kubota L185
Kubota L185 — Compact Utility tractor · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
1595 to 1785 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Built in JapanReference
Original price was $6,400 in 1982Reference
Two- or four-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
L185TP2WD turfReference
L185FP2WD agReference
L185DT4WDReference
Engine
Kubota 0.7L 2-cyl dieselReference
Fuel tank22.0 LReference
Engine12.7 kWReference
Kubota Z751Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement0.7 LReference
Bore/Stroke76 x 82 mmReference
Power12.7 kWReference
Rated RPM2800Reference
Starter volts12Reference
Transmission
8-speed gearReference
16-speed creeperReference
TypegearReference
Gears8 forward and 2 reverseReference
TypecreeperReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)11.2 kWReference
Rear TypeIReference
Controlposition controlReference
Controldraft controlReference
Rear lift (at ends)997 kgReference
Rear PTOtransmissionReference
Rear PTO Type540/700/1000 (1.375)Reference
Engine RPM540@2430Reference
Engine RPM702@2430Reference
Engine RPM1007@2430Reference
Front PTO Type2430Reference
Dimensions
Wheelbase152 cmReference
Weight1595 to 1785 poundsReference
Front tire4.00-15Reference
2WD Rear tire9.5-24Reference
2WD Standard tires (ag)Front: 4.00-15. Rear: 9.5-24Reference
4WD Standard tires (ag)Front: 6-14. Rear: 9.5/9-24Reference
Lawn/turf front20x8.00-10Reference
Lawn/turf rear13.6-16Reference
Length254 cmReference
Width137 cmReference
Height (steering wheel)134 cmReference
Height (exhaust)193 cmReference
Ground clearance25 cmReference
Front tread100 cmReference
Rear tread102 cmReference
Shipping723 kgReference
Shipping738 kgReference
Shipping809 kgReference
Kubota L185 attachments
snowblowerReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
SnowblowerReference
Front-end loaderReference
BackhoeReference
Kubota BL4520 Backhoe
Backhoe typeKubota BL4520 BackhoeReference
Transport height155 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
2-Foot flat digging depth201 cmReference
Reach from pivot248 cmReference
Loading height213 cmReference
Bucket Rotation170°Reference
Swing Arc177°Reference
Bucket force657 kgReference
Dipperstick force1308 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
