Tractor · 1972Unverified

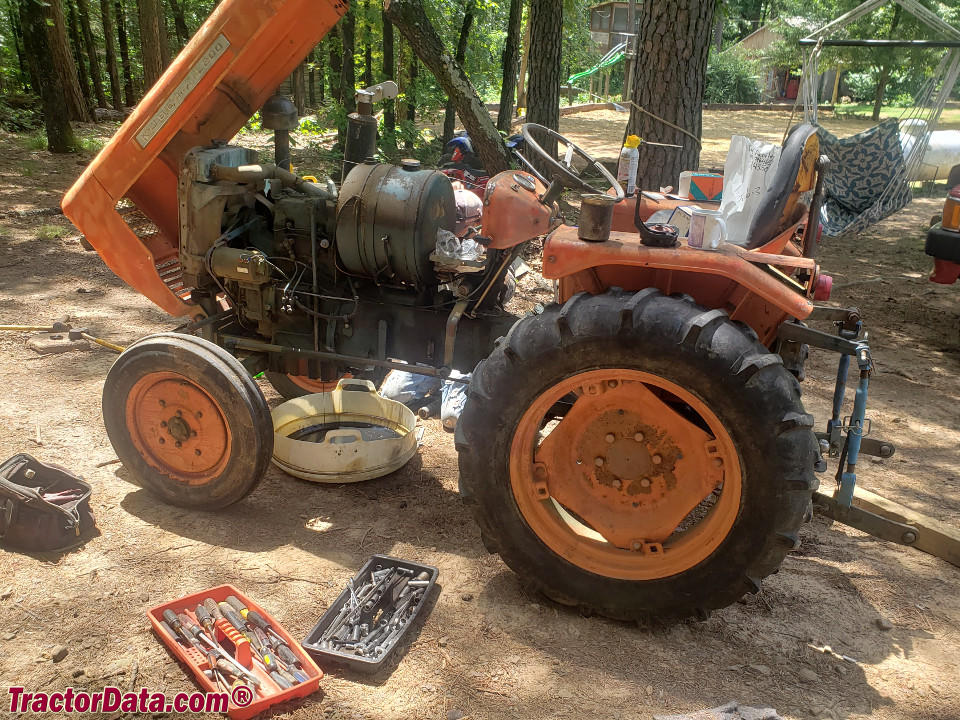

Kubota L200
Kubota L200 — Compact Utility tractor · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
907 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Two-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Open operator station.Reference
Engine
Kubota 1.1L 2-cyl dieselReference
Engine15.7 kWReference
Kubota Z1100Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke89 x 89 mmReference
Power15.7 kWReference
Air cleaneroil bathReference
Rated RPM2700Reference
Starter volts12Reference
Coolant capacity7.5 LReference
Intake valve clearance0.229 mmReference
Exhaust valve clearance0.229 mmReference
Oil capacity5.0 LReference
Oil change75 hReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Oil capacity12.0 LReference
Oil change300 hReference
Three gears (1-3) plus reverse (R) in two ranges.Reference
PTO & Hydraulics
PTO (claimed)11.0 kWReference
Hydraulic system6.8 LReference
Typeopen centerReference
Capacity6.8 LReference
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase149 cmReference
Weight907 kgReference
Front tire4.00-15Reference
Rear tire9.5/9-24Reference
Ag front4.00-15Reference
Ag rear9.5/9-24Reference
Length194 cmReference
Width112 cmReference
Height (hood)133 cmReference
Height (exhaust)189 cmReference
Ground clearance34 cmReference
Front tread91/100/107/116/123/132 cmReference
Rear tread90/95/101/105/110/115/125 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
