Tractor · 1971Unverified

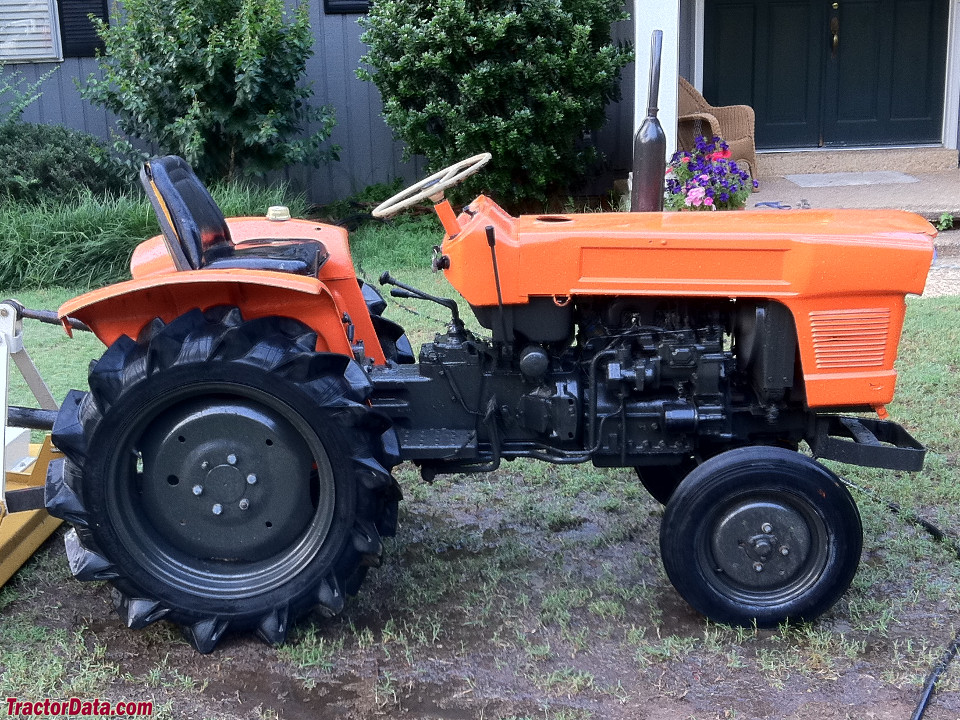

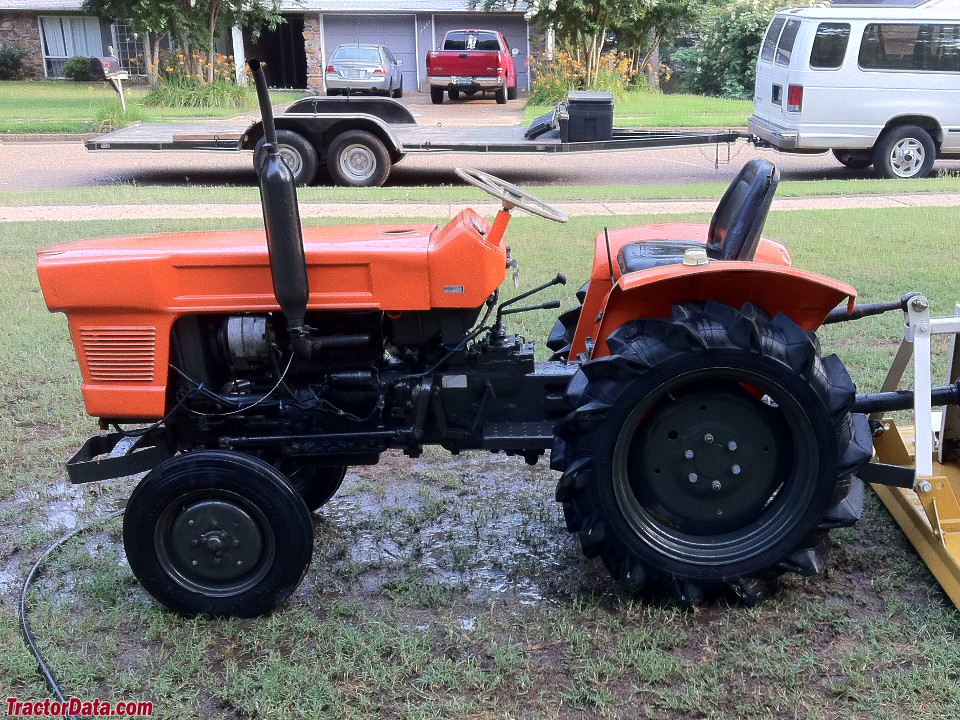

Kubota L2000
Kubota L2000 — Compact Utility tractor · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
1532 to 1753 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station.Reference
Variants
L2000DT4WDReference
Engine
Kubota 1.1L 3-cyl dieselReference
Fuel tank22.0 LReference
Engine14.7 kWReference
Kubota D1000Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.1 LReference
Bore/Stroke76 x 82 mmReference
Power14.7 kWReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
Pump flow13.6 lpmReference
Rear TypeIReference
Rear lift600 kgReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2531Reference
Engine RPM820@2700Reference
Engine RPM1140@2700Reference
Engine RPM1430@2700Reference
Dimensions
Wheelbase143 cmReference
Weight1532 to 1753 poundsReference
Front tire4.00-12Reference
2WD Rear tire8.3/8-22Reference
2WD Standard tires (ag)Front: 4.00-12. Rear: 8.3/8-22Reference
4WD Standard tires (ag)Front: 6-14. Rear: 8.3/8-22Reference
Length243 cmReference
Width112 cmReference
2WD Height (exhaust)192 cmReference
4WD Height (exhaust)193 cmReference
2WD Weight694 kgReference
4WD Weight795 kgReference
Ground clearance45 cmReference
Front tread82/88 cmReference
Rear tread100 to 0 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
