Tractor · 1972Unverified

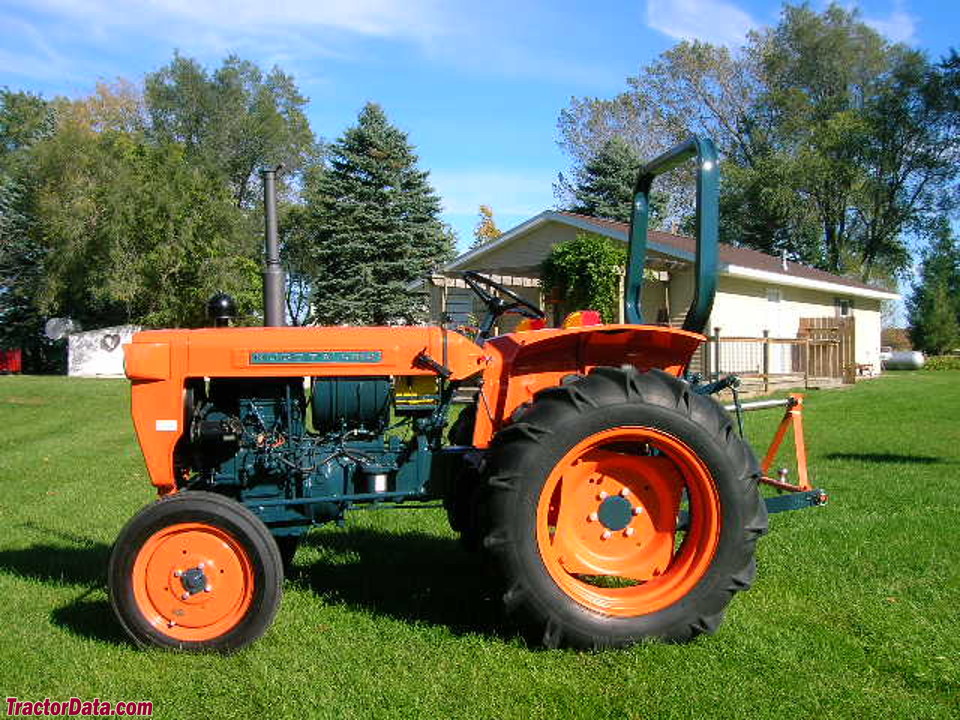

Kubota L210
Kubota L210 — Compact Utility tractor · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Max power
10.5 kW
Weight
979 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Built in JapanReference
Two-wheel driveReference
Manual steeringReference
Differential mechanical expanding shoe brakesReference
Open operator station. ROPS available as a retro-fit.Reference
Engine
Kubota 1.1L 2-cyl dieselReference
Engine (gross)15.7 kWReference
Engine (net)14.9 kWReference
Drawbar (tested)10.5 kWReference
Kubota Z1100AReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke88 x 88 mmReference
Power (net)14.9 kWReference
Power (gross)15.7 kWReference
Air cleaneroil bathReference
Compression20:1Reference
Rated RPM2700Reference
Starter volts12Reference
Coolant capacity7.5 LReference
Intake valve clearance0.229 mmReference
Exhaust valve clearance0.229 mmReference
Oil capacity5.0 LReference
Power at rated engine speed14.2 kWReference
Max power10.5 kWReference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
Oil capacity12.1 LReference
PTO & Hydraulics
PTO (tested)14.2 kWReference
Hydraulic system28.0 LReference
Capacity28.0 LReference
Pressure97.9 barReference
Total flow10.8 lpmReference
Rear TypeIReference
Rear lift (at ends)929 kgReference
Rear PTO Type650/990Reference
Power at rated PTO speed12.3 kWReference
Capacities
Fuel24.0 LReference
Dimensions
Wheelbase149 cmReference
Weight979 kgReference
Front tire4.00-15Reference
Rear tire9./9-24Reference
Ag front4.00-15Reference
Ag rear9./9-24Reference
Length194 cmReference
Width112 cmReference
Height (steering wheel)133 cmReference
Height (exhaust)189 cmReference
Operating weight979 kgReference
Ballasted weight1637 kgReference
Ground clearance34 cmReference
Clearance (rear axle)35 cmReference
Front tread91 to 132 cmReference
Rear tread90 to 125 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel 6-speed 2WDJune 4 - 16, 1971Link: Nebraska Tractor Test 1071 fileReference
PTO performanceReference
Fuel use5.3 l/hourReference
Fuel use4.9 l/hourReference
Drawbar performanceReference
Gear 5 used for power test.Reference
Max pull916 kgReference
Gear 4 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
