Tractor · 1975Unverified

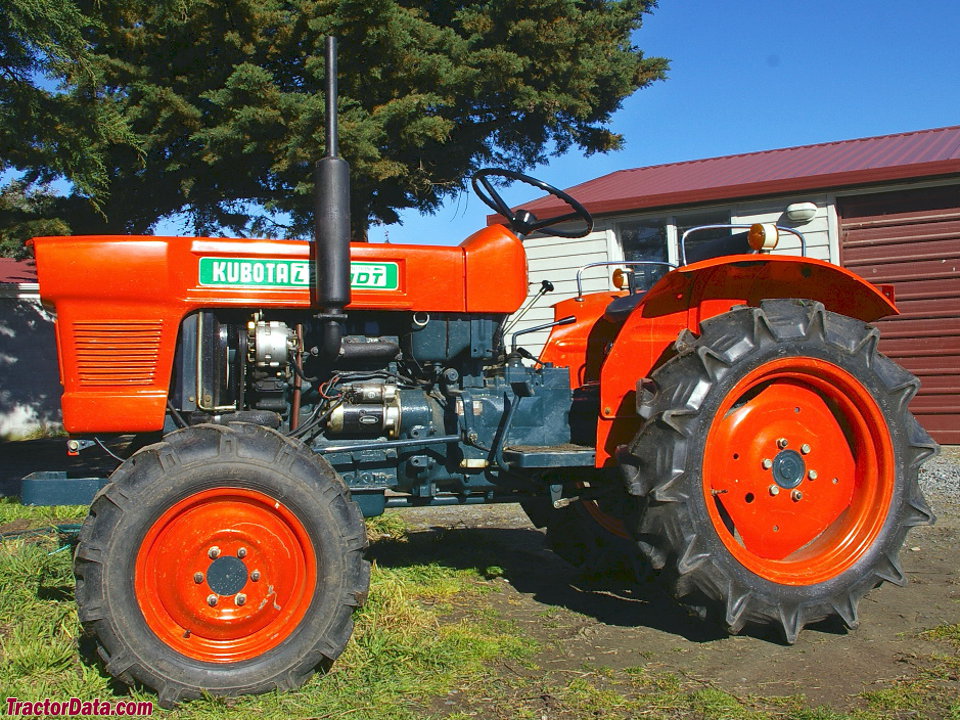

Kubota L2201
Kubota L2201 — L01 Series · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
1587 to 1808 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
L22012WDReference
L2201DT4WDReference
Engine
Kubota 1.1L 3-cyl dieselReference
Fuel tank22.0 LReference
Engine16.2 kWReference
Kubota D1101Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke76 x 82 mmReference
Power16.2 kWReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed gearReference
TypegearReference
Gears16 forward and 4 reverseReference
Four gears, plus reverse, in two ranges. Additional creeper range for the entire transmission.Reference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2431Reference
Engine RPM810@2800Reference
Engine RPM1160@2800Reference
Engine RPM1480@2800Reference
Dimensions
2WD Wheelbase147 cmReference
4WD Wheelbase148 cmReference
Weight1587 to 1808 poundsReference
Front tire4.00-12Reference
2WD Rear tire8.3/8-22Reference
2WD Standard tires (ag)Front: 4.00-12. Rear: 8.3/8-22Reference
4WD Standard tires (ag)Front: 6-14. Rear: 8/3/8-22Reference
Length269 cmReference
Width168 cmReference
Height (steering wheel)138 cmReference
2WD Weight719 kgReference
4WD Weight820 kgReference
2WD Ground clearance29 cmReference
4WD Ground clearance24 cmReference
2WD Front tread82 cmReference
4WD Front tread93 cmReference
2WD Rear tread88 to 100 cmReference
4WD Rear tread89 to 102 cmReference
L2201 Serial Number Location
Serial number plate on the left side of the L2201 tractor frame, just ahead of the clutch pedal.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
