Tractor · 1978Unverified

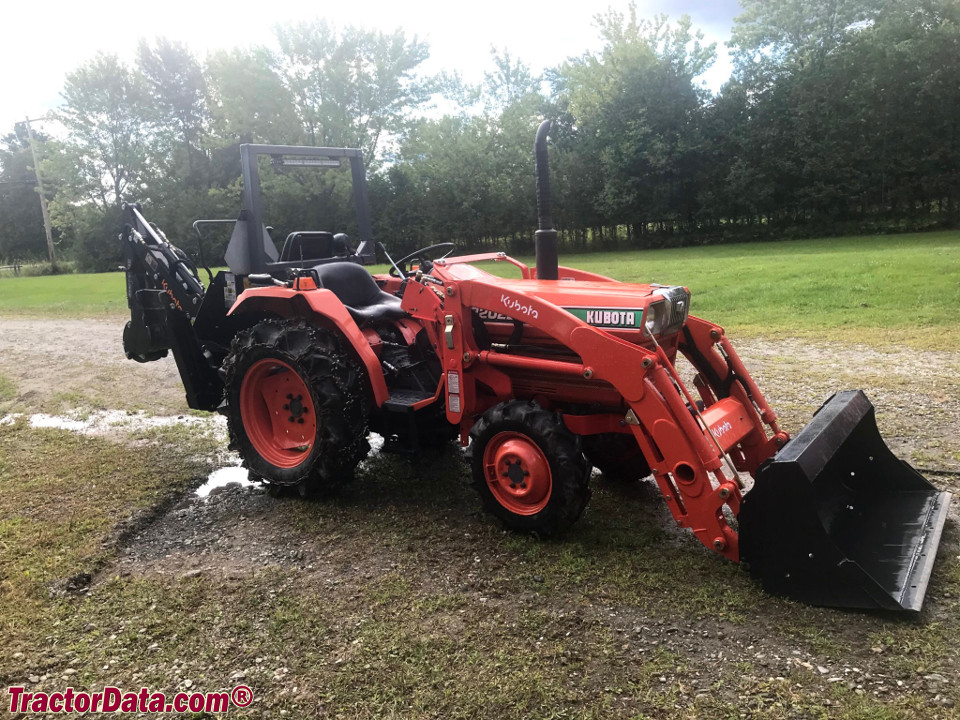

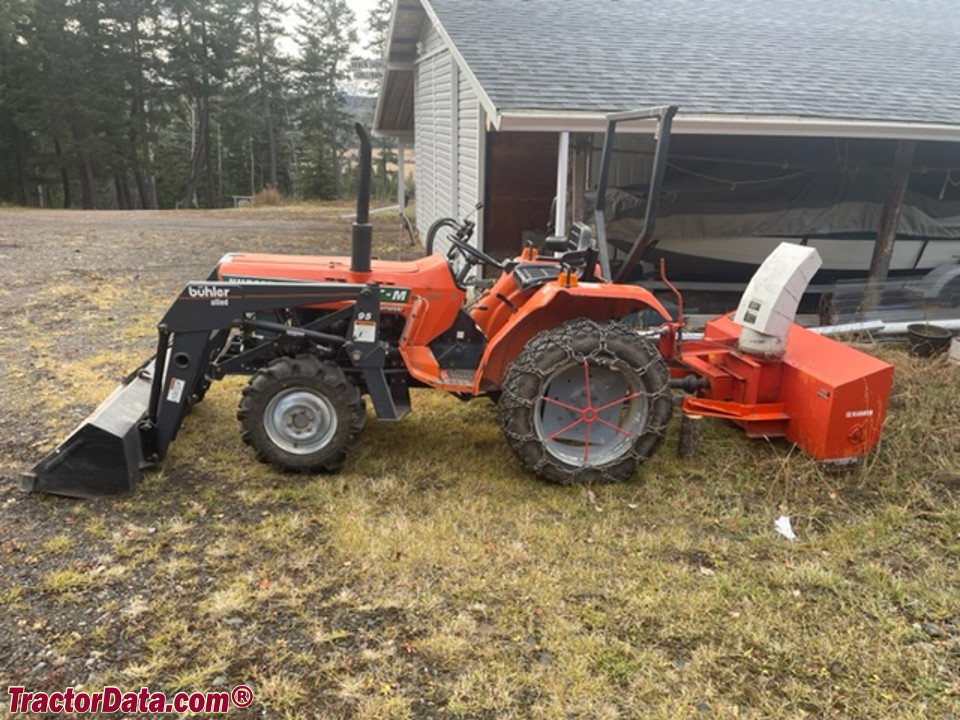

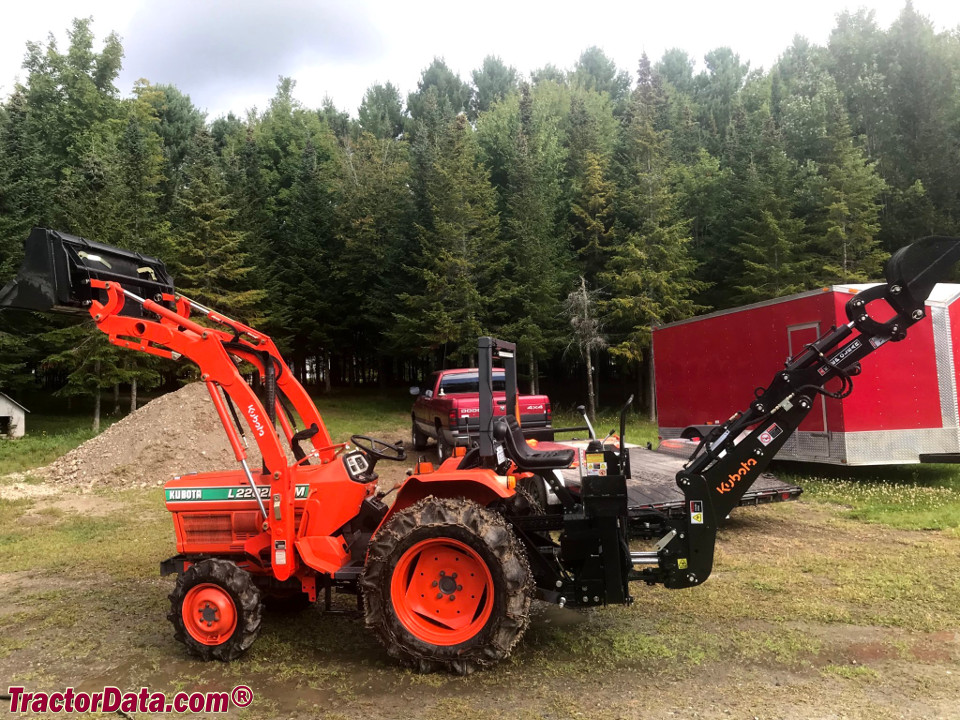

Kubota L2202
Kubota L2202 — L02 Series · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
1830 to 2028 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
L22022WDReference

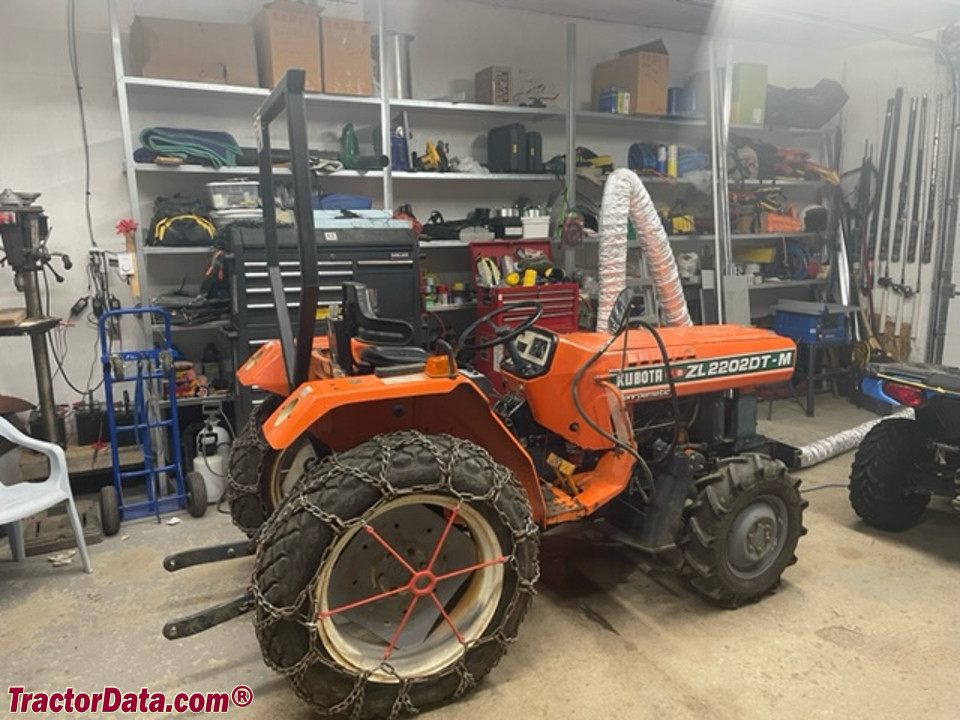

L2202DT4WDReference
Engine
Kubota 1.4L 3-cyl dieselReference
Engine16.2 kWReference
Kubota D1402Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke84 x 81 mmReference
Power16.2 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
Pump flow14.4 lpmReference
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM556@2500Reference
Engine RPM774@2500Reference
Engine RPM938@2500Reference
Engine RPM1250@2500Reference
Dimensions
Wheelbase156 cmReference
Weight1830 to 2028 poundsReference
Front tire4.00-15Reference
2WD Rear tire9.5-24Reference
2WD Standard tires (ag)Front: 4.00-15. Rear: 9.5-24Reference
4WD Standard tires (ag)Front: 6-14. Rear: 9.5-24Reference
Length266 cmReference
Width124 cmReference
Height (exhaust)195 cmReference
2WD Weight830 kgReference
4WD Weight919 kgReference
2WD Front tread96 cmReference
4WD Front tread93 cmReference
Rear tread98/109 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
