Tractor · 1974Unverified

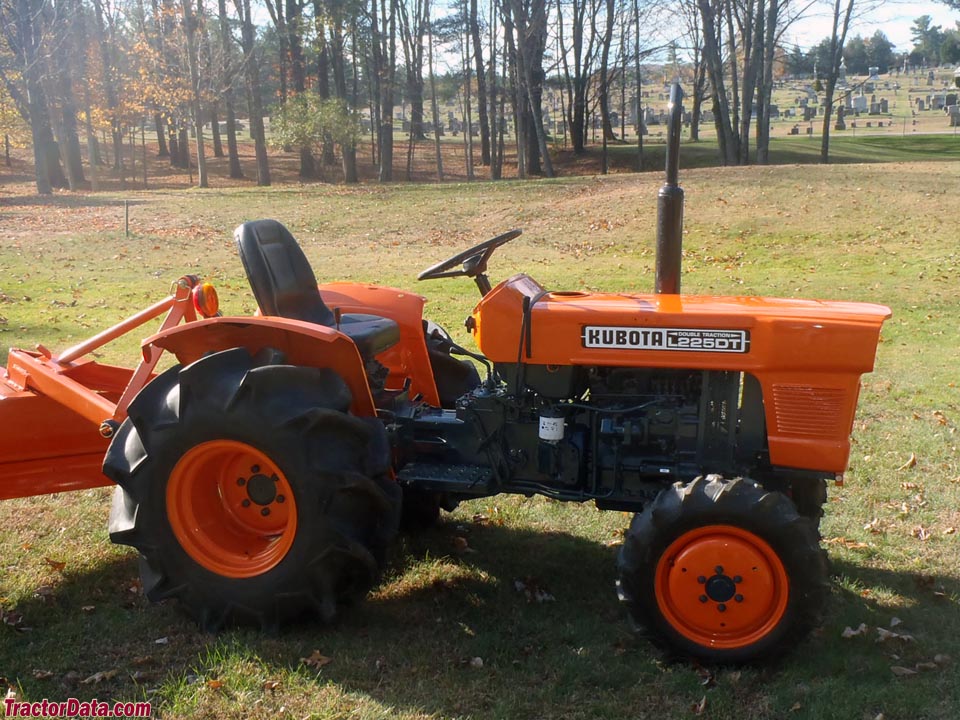

Kubota L225
Kubota L225 — Compact Utility tractor · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Max power
12.0 kW
Weight
904 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Built in JapanReference
Original price$4,500 (1976 L225DT)Reference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (L225DT)Reference
SteeringmanualReference
Differential mechanical expanding shoe brakesReference
Variants
L2252WDReference
L225DT4WDReference
Engine
Kubota 1.1L 3-cyl dieselReference
Engine17.9 kWReference
Drawbar (tested)12.0 kWReference
Kubota D1100AReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke76 x 82 mmReference
Power17.9 kWReference
Air cleanerpaper element with precleanerReference
Compression21:1Reference
Rated RPM2700Reference
Starter volts12Reference
Oil capacity5.3 LReference
Coolant capacity6.8 LReference
Intake valve clearance0.203 mmReference
Exhaust valve clearance0.203 mmReference
Power at rated engine speed15.6 kWReference
Max power12.0 kWReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
Oil capacity22.0 LReference
PTO & Hydraulics
PTO (tested)15.6 kWReference
Pressure117.2 barReference
Total flow14.0 lpmReference
Rear TypeIReference
Rear PTO Type540/1000Reference
Engine RPM540@2534Reference
Engine RPM1000@2363Reference
Power at rated PTO speed14.9 kWReference
Capacities
Front axle0.9 LReference
Front diff.1.0 LReference
Dimensions
Wheelbase153 cmReference
Weight904 kgReference
Front tire4.00-15Reference
Rear tire9.5-24Reference
Ag front4.00-15Reference
Ag rear9.5-24Reference
Operating weight904 kgReference
Ballasted weight1565 kgReference
Front tread98 to 133 cmReference
Rear tread100 to 137 cmReference
Kubota L225 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Kubota K605 Backhoe
Backhoe typeKubota K605 BackhoeReference
Test results
Diesel 8-speed 2WDOctober 2 - 12, 1973Link: Nebraska Tractor Test 1145 fileReference
PTO performanceReference
Fuel use6.1 l/hourReference
Fuel use5.3 l/hourReference
Drawbar performanceReference
Fuel use5.7 l/hourReference
Gear 6 used for power test.Reference
Max pull914 kgReference
Gear 4 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
