Tractor · 1985Unverified

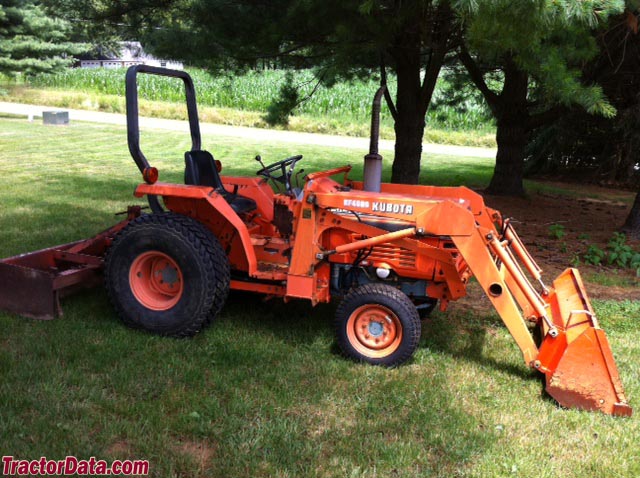

Kubota L2250
Kubota L2250 — L Series · 27 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Max power
12.6 kW
Weight
2170 to 2425 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
SteeringmanualReference
Steeringpower (optional)Reference
Differential wet disc brakesReference
Two-post ROPS with optional canopy.Reference
Variants
L2250F2WDReference
L2250DT4WDReference
Engine
Kubota 1.3L 3-cyl dieselReference
Engine (gross)19.8 kWReference
Drawbar (tested)12.6 kWReference
Kubota D1302-DI-AReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke82 x 82 mmReference
Power (gross)19.8 kWReference
Air cleanerpaper elementReference
Compression18:1Reference
Rated RPM2600Reference
Starter volts12Reference
Oil capacity5.7 LReference
Coolant capacity5.0 LReference
Power at rated engine speed15.8 kWReference
Max power12.6 kWReference
Transmission
8-speed mechanical shuttleReference
8-speed partially synchronizedReference
Typemechanical shuttleReference
Gears8 forward and 7 reverseReference
Oil capacity31.0 LReference
Four gears with high and low ranges, and mechanical shuttle. Fourth gear is locked out in high range.Reference
Typepartially synchronizedReference
Four gears with high and low ranges, and mechanical shuttle. Synchronized shifting between gears 3-4 in both ranges.Reference
PTO & Hydraulics
PTO (claimed)15.7 kWReference
PTO (tested)15.8 kWReference
Hydraulic system31.0 LReference
Typeopen centerReference
Capacity31.0 LReference
Pressure156.9 barReference
Valves1 to 3Reference
Pump flow25.4 lpmReference
Steering flow10.6 lpmReference
Rear TypeIReference
Rear lift (at ends)850 kgReference
Rear lift (at 24"/610mm)650 kgReference
Rear PTOcontinuousReference
Rear PTOliveReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2400Reference
Engine RPM1000@2438Reference
Mid PTOoptionalReference
Mid PTO Type1080/2000Reference
Power at rated PTO speed16.0 kWReference
Capacities
Fuel29.1 LReference
Dimensions
Wheelbase164 cmReference
Weight2170 to 2425 poundsReference
Front tire4.00-15Reference
Rear tire9.5-24Reference
2WD Ag front4.00-15Reference
4WD Ag front6-14Reference
Ag rear9.5-24Reference
Length275 cmReference
Width125 cmReference
Height202 cmReference
2WD Ground clearance34 cmReference
4WD] Ground clearance30 cmReference
Front tread101 cmReference
Rear tread101 to 113 cmReference
Shipping984 kgReference
Shipping1079 kgReference
Operating1099 kgReference
Ballasted1419 kgReference
Kubota L2250 attachments
60" mid-mount mower deckReference
72" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
Charging systemalternatorReference
Charging amps35Reference
Battery volts12Reference
Battery AH80Reference
Attachment overview
60" mid-mount mower deckReference
72" mid-mount mower deckReference
Kubota BF400G loaderReference
Kubota LA450A loaderReference
BackhoeReference
Rear-mounted tillers for the Kubota L2250 included the 40-inch model FL1021 and 50-inch model FL1271. The tractor could be equipped with the BL78 post hole digger or a 52-inch box blade.Reference
Kubota BL4520B Backhoe
Backhoe typeKubota BL4520B BackhoeReference
Transport height150 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width60 cmReference
Digging depth205 cmReference
Reach from pivot246 cmReference
Loading height151 cmReference
Bucket Rotation164°Reference
Swing Arc180°Reference
Bucket force1224 kgReference
Dipperstick force607 kgReference
Kubota L4530B Backhoe
Backhoe typeKubota L4530B BackhoeReference
Transport height180 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width60 cmReference
Digging depth243 cmReference
Reach from pivot284 cmReference
Loading height179 cmReference
Bucket Rotation194°Reference
Swing Arc180°Reference
Bucket force1310 kgReference
Dipperstick force746 kgReference
Kubota BL4590 Backhoe
Backhoe typeKubota BL4590 BackhoeReference
Transport height200 cmReference
Bucket width33 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Bucket width76 cmReference
Bucket width91 cmReference
Digging depth229 cmReference
Reach from pivot295 cmReference
Loading height200 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1338 kgReference
Dipperstick force789 kgReference
Kubota BL4690 Backhoe
Backhoe typeKubota BL4690 BackhoeReference
Transport height195 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width60 cmReference
Digging depth229 cmReference
Reach from pivot295 cmReference
Loading height191 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1338 kgReference
Dipperstick force789 kgReference
Test results
Diesel 8-speed 4WDOctober 28 - November 5, 1985Link: Nebraska Tractor Test 1585 fileReference
PTO performanceReference
Fuel use4.9 l/hourReference
Fuel use4.5 l/hourReference
Drawbar performanceReference
Max pull1212 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
