Tractor · 1981Unverified

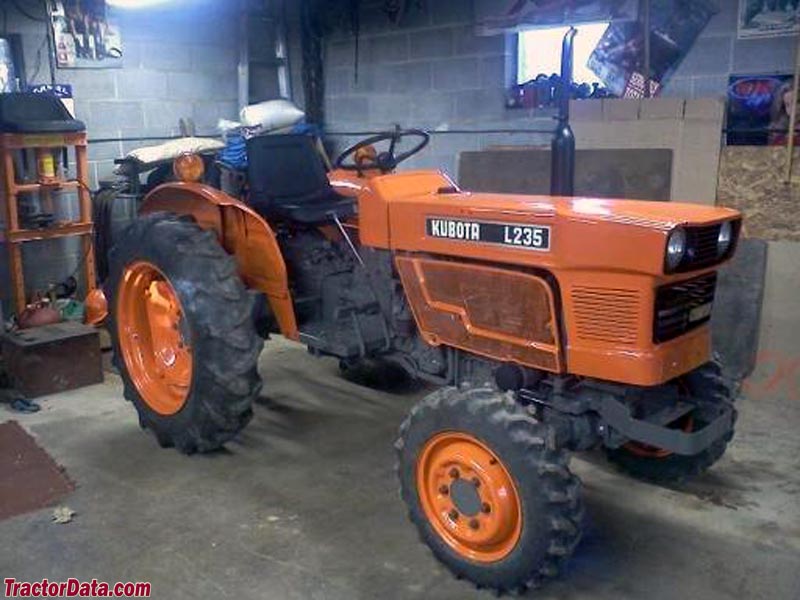

Kubota L235
Kubota L235 — L Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Max power
11.4 kW
Weight
1950 to 2435 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
SteeringmanualReference
Steeringpower assist optionalReference
Wet disc brakesReference
Open operator statio. Two-post ROPS available.Reference
Engine
Kubota 1.1L 3-cyl dieselReference
Fuel tank28.0 LReference
Engine (gross)17.5 kWReference
Drawbar (claimed)11.2 kWReference
Drawbar (tested)11.4 kWReference
Kubota D1102-AReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke76 x 81 mmReference
Power (gross)17.5 kWReference
Air cleanerpaper elementReference
Pre-heatingglow plugsReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Starter power1.0 kWReference
Power at rated engine speed14.6 kWReference
Max power11.4 kWReference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 7 reverseReference
Clutchdry discReference
Oil capacity24.0 LReference
Four gears in two ranges with forward/reverse shuttle.Reference
PTO & Hydraulics
PTO (claimed)14.6 kWReference
PTO (tested)14.6 kWReference
Typeopen centerReference
Pressure155.1 barReference
Pump flow23.5 lpmReference
Rear TypeIReference
Rear PTOcontinuousReference
Rear PTOlive (optional)Reference
Rear PTO Type540/828Reference
Power at rated PTO speed14.6 kWReference
Dimensions
Wheelbase168 cmReference
Wheelbase164 cmReference
Weight1950 to 2435 poundsReference
Front tire4.00-15Reference
Rear tire9.5-24 (2WD)Reference
Standard tires (ag)Front: 4.00-15. Rear: 9.5-24 (2WD)Reference
Standard tires (ag)Front: 6-14. Rear: 9.5-24 (4WD)Reference
Lawn/turf front23x8.50-12 (2WD)Reference
Lawn/turf front25x8.50-14 (4WD)Reference
Lawn/turf rear16.3-16Reference
Length286 cmReference
Width125 cmReference
Height (exhaust)195 cmReference
Shipping884 kgReference
Shipping889 kgReference
Shipping959 kgReference
Shipping970 kgReference
Operating1104 kgReference
Kubota L235 attachments
front-end loaderReference
backhoeReference
L235 Serial Numbers
198110167Reference
198210642Reference
198350204Reference
198451307Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Kubota BL4520 Backhoe
Backhoe typeKubota BL4520 BackhoeReference
Transport height155 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
2-Foot flat digging depth201 cmReference
Reach from pivot248 cmReference
Loading height213 cmReference
Bucket Rotation170°Reference
Swing Arc177°Reference
Bucket force657 kgReference
Dipperstick force1308 kgReference
Kubota L4530 Backhoe
Backhoe typeKubota L4530 BackhoeReference
Transport height186 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
2-Foot flat digging depth215 cmReference
Reach from pivot279 cmReference
Loading height185 cmReference
Bucket Rotation164°Reference
Swing Arc180°Reference
Bucket force746 kgReference
Dipperstick force1310 kgReference
Test results
Diesel 8-speed 4WDSeptember 17 - 30, 1981Link: Nebraska Tractor Test 1406 fileReference
PTO performanceReference
Fuel use5.3 l/hourReference
Drawbar performanceReference
Gear 6 used for power test.Reference
Max pull1390 kgReference
Gear 3 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
