Tractor · 1978Unverified

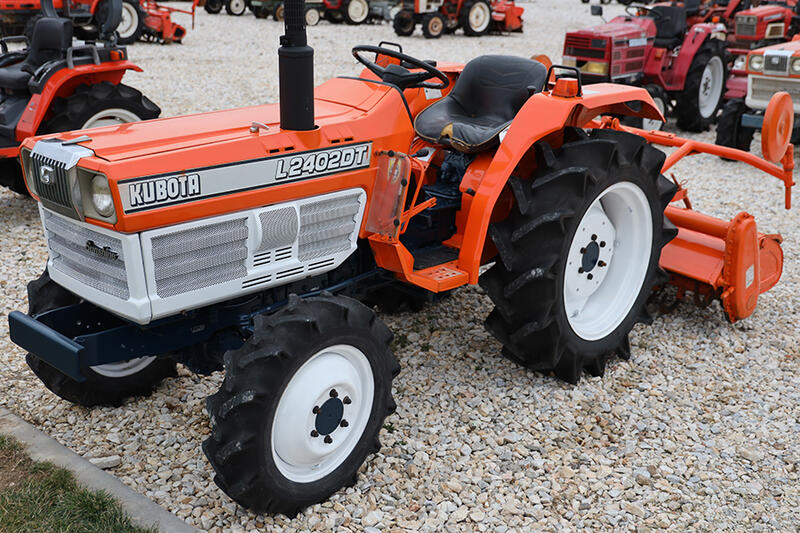

Kubota L2402
Kubota L2402 — L02 Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1962 to 2205 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
L24022WDReference
L2402DT4WDReference
Engine
Kubota 1.4L 3-cyl dieselReference
Engine17.7 kWReference
Kubota D1402Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke84 x 81 mmReference
Power17.7 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
Pump flow18.2 lpmReference
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM578@2600Reference
Engine RPM805@2600Reference
Engine RPM975@2600Reference
Engine RPM1300@2600Reference
Dimensions
Wheelbase156 cmReference
Weight1962 to 2205 poundsReference
Front tire5.00-15Reference
2WD Rear tire11.2-24Reference
2WD Standard tires (ag)Front: 5.00-15. Rear: 11.2-24Reference
4WD Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference
Length268 cmReference
Width132 cmReference
Height (exhaust)195 cmReference
2WD Weight889 kgReference
4WD Weight1000 kgReference
2WD Front tread98 to 114 cmReference
4WD Front tread104 cmReference
Rear tread102 to 131 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
