Tractor · 1998Unverified

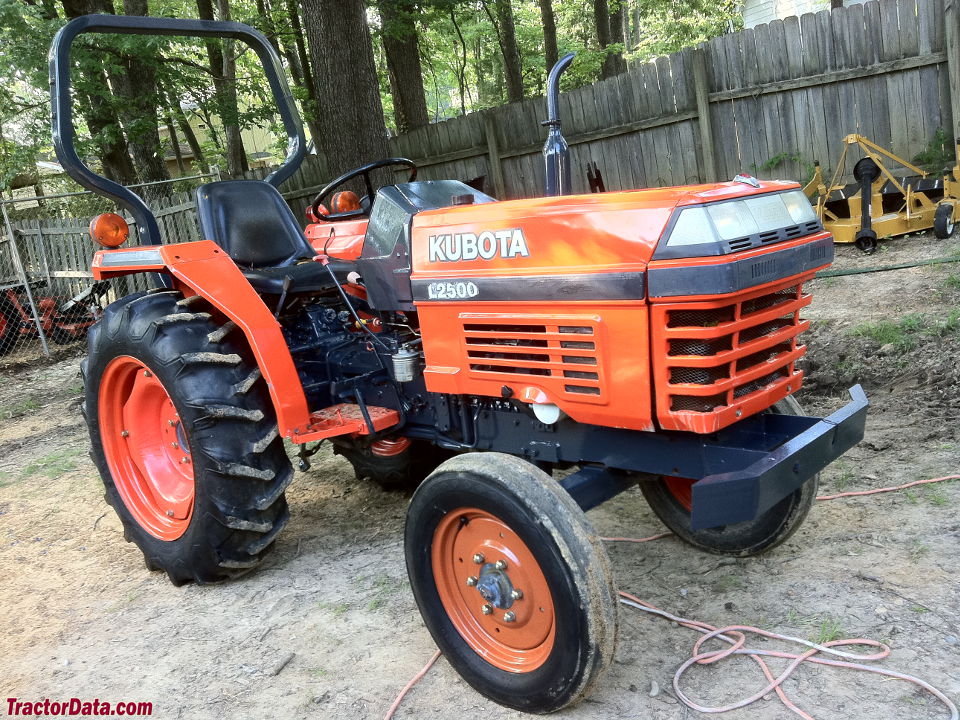

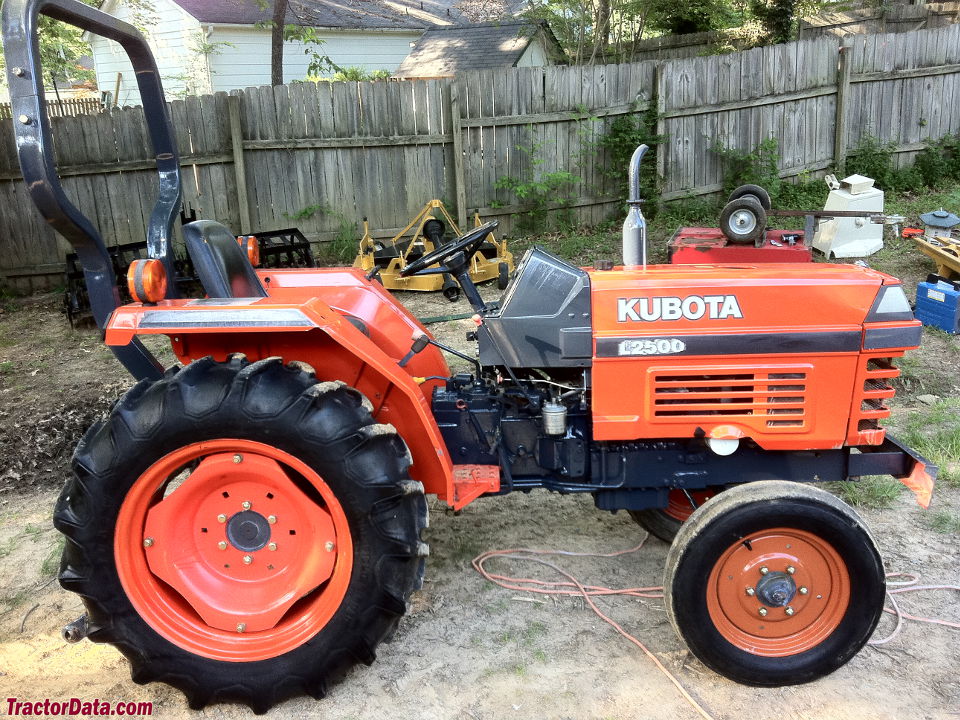

Kubota L2500
Kubota L2500 — Standard L Series · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
1001 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
SteeringmanualReference
SteeringpowerReference
Mechanical wet disc brakesReference
Two-post fixed ROPS.Reference
Variants
L2500F2WDReference
L2500DT4WDReference
Engine
Kubota 1.4L 3-cyl dieselReference
Fuel tank29.1 LReference
Engine20.1 kWReference
Kubota D1403Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke80 x 92 mmReference
Power20.1 kWReference
Pre-heatingglow plugsReference
Compression23:1Reference
Rated RPM2800Reference
Starter volts12Reference
Coolant capacity6.1 LReference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutch215mm mechanical dry discReference
four gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
PTO (claimed)16.8 kWReference
Typeopen centerReference
Pressure152.0 barReference
Pump flow27.3 lpmReference
Rear TypeIReference
Controlposition control with optional draft controlReference
Rear lift (at ends)900 kgReference
Rear lift (at 24"/610mm)650 kgReference
Rear PTOtransmissionReference
ClutchoverrunningReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2430Reference
Engine RPM1000@2410Reference
Dimensions
4WD Wheelbase156 cmReference
Weight1001 kgReference
Front tire5.00-15Reference
Rear tire11.2-24Reference
Ag front5.00-15Reference
Ag front7.00-16 (4WD)Reference
Ag rear11.2-24Reference
Length263 cmReference
Width127 cmReference
Height (ROPS)211 cmReference
4WD Weight1001 kgReference
4WD Ground clearance30 cmReference
4WD Front tread101 cmReference
Rear tread103 cmReference
Kubota L2500 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging amps30Reference
Battery CCA490Reference
Battery volts12Reference
Battery AH65Reference
Attachment overview
Kubota LA450S loaderReference
Kubota LB400 loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
