Tractor · 2022Unverified

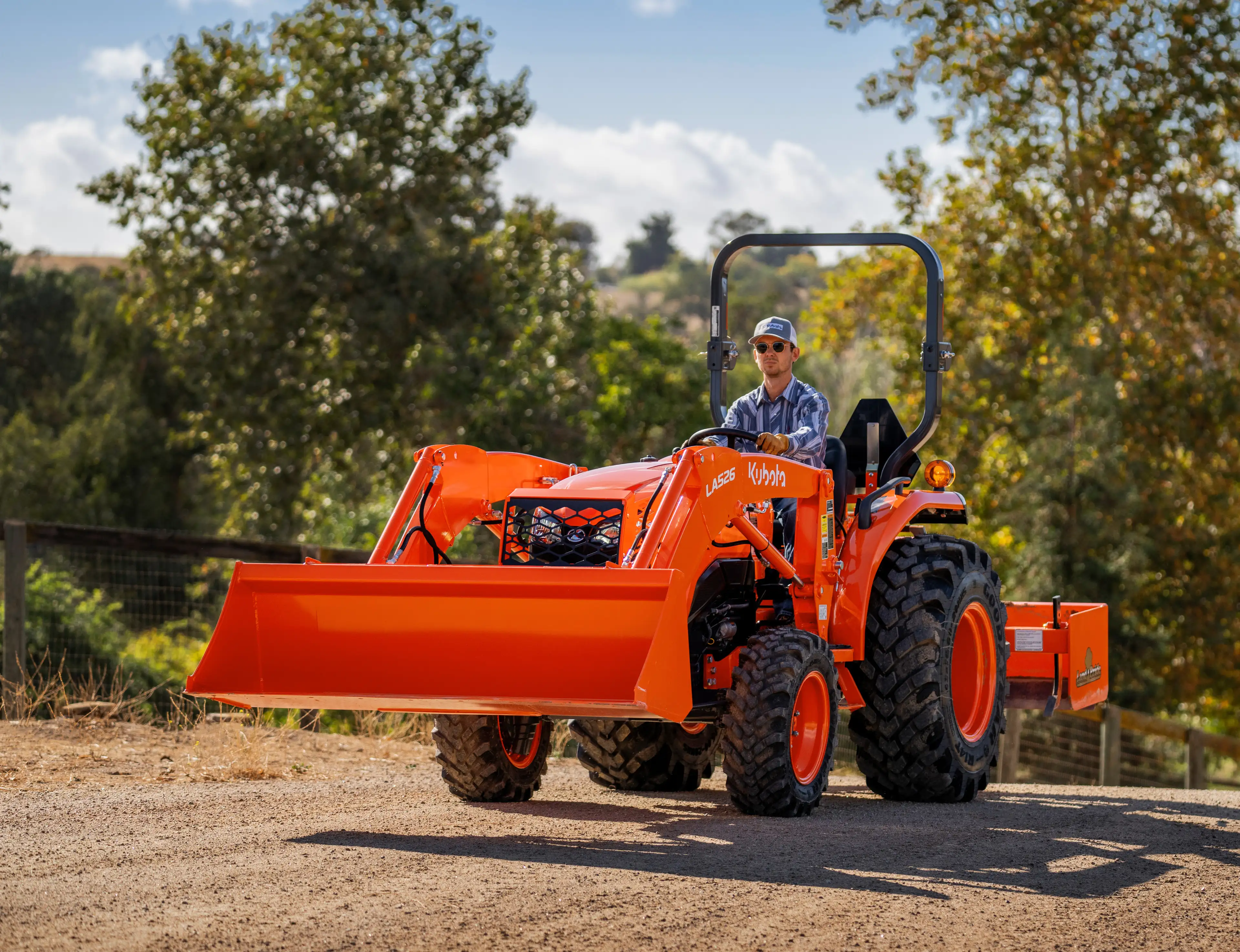

Kubota L2502
Kubota L2502 — L02 Standard Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
2601 to 2833 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Original price was $16,694 in 2023Reference
Two- or four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Kubota 1.6L 3-cyl dieselReference
Fuel tank42.0 LReference
Engine (gross)18.5 kWReference
Engine (net)17.9 kWReference
KubotaReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke87 x 92 mmReference
Power (net)17.9 kWReference
Power (gross)18.5 kWReference
Fuel systemdirect injectionReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed mechanical shuttleReference
hydrostaticReference
Gear Battery CCA580Reference
2WD Gear1179 kgReference
4WD Gear1275 kgReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
Clutchdry discReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)15.3 kWReference
Hydro PTO (claimed)14.2 kWReference
Typeopen centerReference
Pump flow19.7 lpmReference
Steering flow11.7 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)850 kgReference
Rear lift (at 24"/610mm)630 kgReference
Gear Rear PTOtransmissionReference
Hydro Rear PTOindependentReference
Clutchoverrunning dry disc (gear)Reference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1910 (gear)Reference
Engine RPM540@2020 (hydro)Reference
Dimensions
2WD Wheelbase162 cmReference
4WD Wheelbase161 cmReference
Weight2601 to 2833 poundsReference
Front tire5.00-15Reference
2WD Rear tire11.2-24Reference
2WD Standard tires (ag)Front: 5.00-15. Rear: 11.2-24Reference
4WD Standard tires (ag)Front: 7.2-16. Rear: 11.2-24Reference
2WD Lawn/turf front23x8.50-12Reference
4WD Lawn/turf front25x8.50-14Reference
Lawn/turf rear13.6-16Reference
4WD Industrial front27x8.50-15Reference
4WD Industrial front29x9.50-15Reference
4WD Industrial rear15-19.5Reference
4WD Industrial rear43x16-20Reference
2WD Length280 cmReference
4WD Length275 cmReference
Width139 cmReference
Height (ROPS)232 cmReference
2WD Ground clearance34 cmReference
4WD Ground clearance34 cmReference
2WD Front tread104 cmReference
4WD Front tread109 cmReference
Rear tread111/119/129 cmReference
4WD Hydro1285 kgReference
Kubota L2502 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Charging volts12Reference
Hydro Battery CCA600Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Kubota BH77 Backhoe
Backhoe typeKubota BH77 BackhoeReference
Transport height203 cmReference
2-Foot flat digging depth228 cmReference
Reach from pivot315 cmReference
Loading height166 cmReference
Bucket Rotation180°Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
