Tractor · 2000Unverified

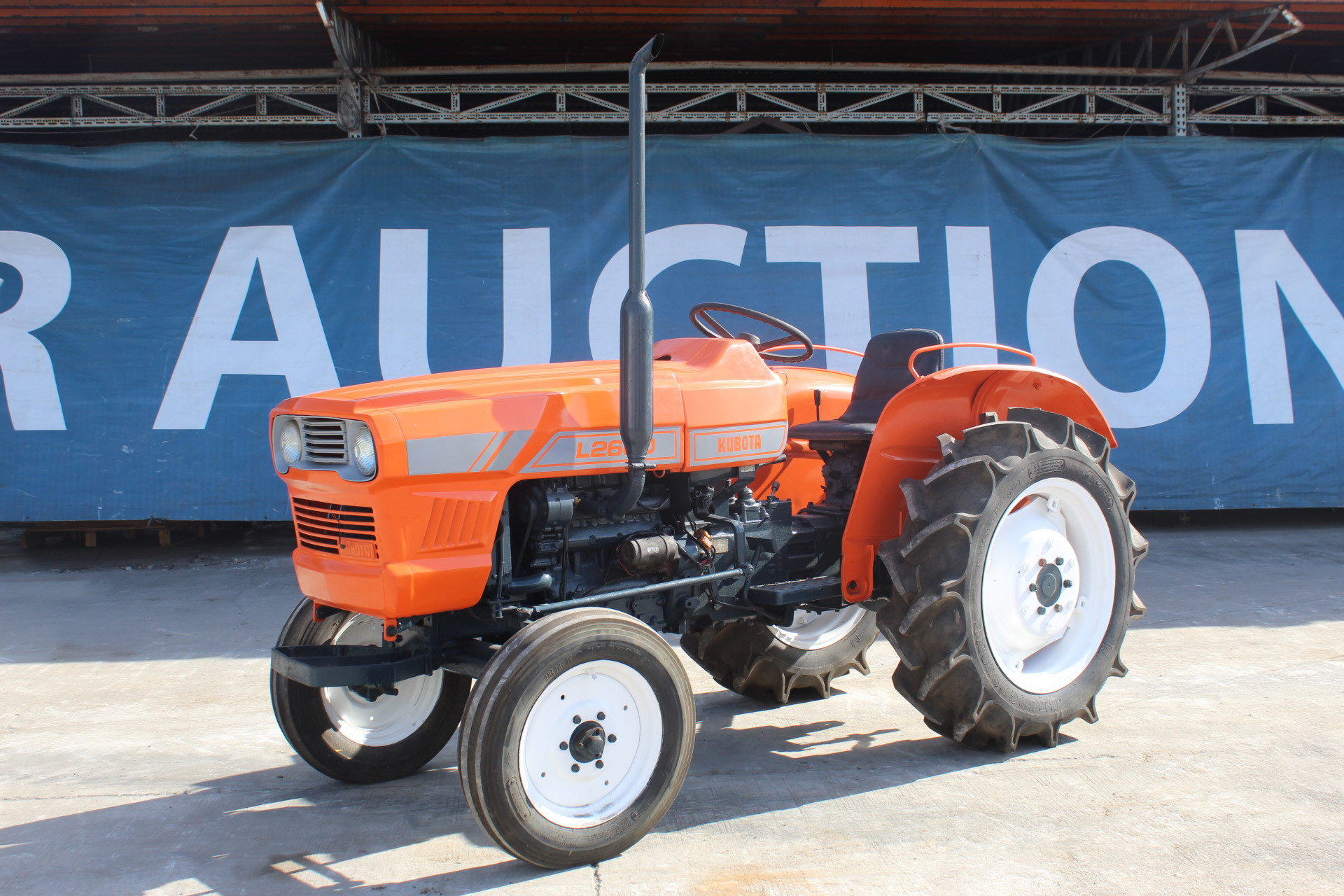

Kubota L2600
Kubota L2600 — Standard L Series · 27 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Weight
2116 to 2359 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
2WD SteeringmanualReference
4WD SteeringpowerReference
Wet disc brakesReference
Two-post ROPS.Reference
Variants
L2600F2WDReference
L2600DT4WDReference
Engine
Kubota 1.4L 3-cyl dieselReference
Fuel tank31.0 LReference
Engine (gross)20.1 kWReference
Kubota D1403Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke79 x 91 mmReference
Power (gross)20.1 kWReference
Fuel systemindirect injectionReference
Rated RPM2800Reference
Torque78.0 NmReference
Starter volts12Reference
Oil capacity5.5 LReference
Coolant capacity6.0 LReference
Transmission
8-speed sliding gearReference
Typesliding gearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
Unsynchronized transmission. Tractor must be stopped to shift gears.Reference
PTO & Hydraulics
PTO (claimed)16.8 kWReference
Typeopen centerReference
2WD Total flow17.4 lpmReference
4WD Total flow27.3 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)900 kgReference
Rear PTOtransmissionReference
Clutchoverrunning dry discReference
Rear PTO Type540 (1.375)Reference
Dimensions
2WD Wheelbase155 cmReference
4WD Wheelbase156 cmReference
Weight2116 to 2359 poundsReference
Front tire5.00-15Reference
Rear tire11.2-24Reference
Ag front5.00-15 (2WD)Reference
Ag front7-16 (4WD)Reference
Ag rear11.2-24Reference
2WD Length266 cmReference
4WD Length264 cmReference
Width129 cmReference
Height211 cmReference
2WD Weight959 kgReference
4WD Weight1070 kgReference
2WD Ground clearance34 cmReference
4WD Ground clearance30 cmReference
Kubota L2600 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery CCA490Reference
Battery volts12Reference
Attachment overview
Kubota LB400 loaderReference
Kubota LB402 loaderReference
Kubota LB452S loaderReference
BackhoeReference
The Kubota L2600 was advertised with the RCR60CA (60-inch) or RCR72CA (72-inch) rear-mount mowers.Reference
Kubota BL4690A Backhoe
Backhoe typeKubota BL4690A BackhoeReference
Transport height195 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width60 cmReference
Digging depth229 cmReference
Reach from pivot295 cmReference
Loading height191 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1338 kgReference
Dipperstick force789 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
