Tractor · 1975Unverified

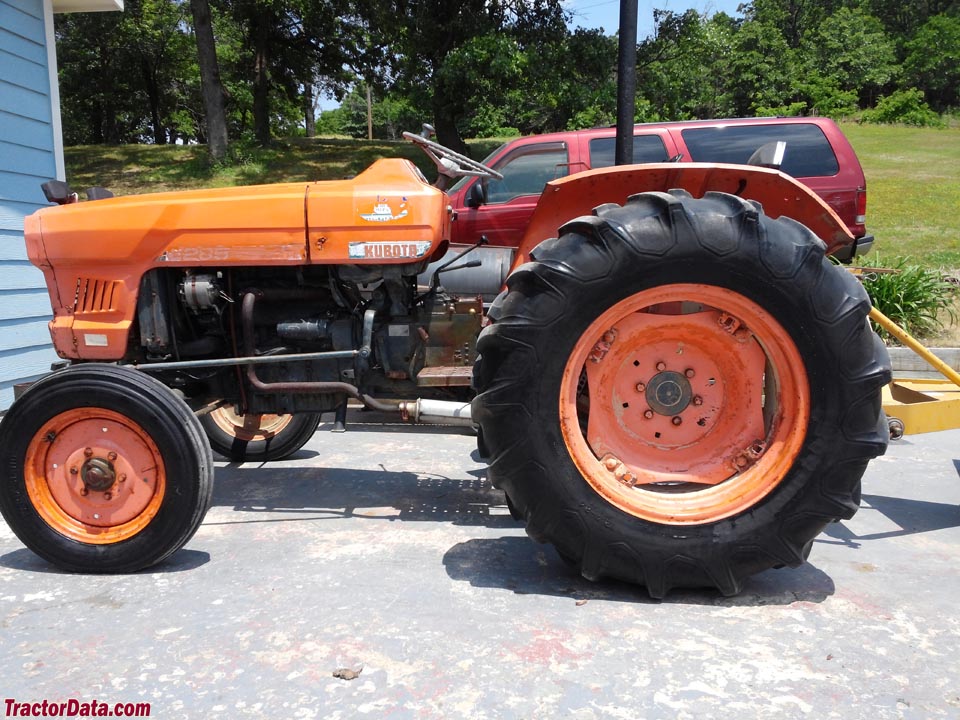

Kubota L285

Name: Kubota L285
Brand: Kubota

Kubota L285 — Compact Utility tractor · 27 hp. Reference specifications; pending source verification.

The Kubota L285 is a compact tractor with a rating of 27 hp, making it a suitable option for smaller-scale operations. It was produced from 1975 to 1981 and features a 4-cylinder diesel liquid-cooled engine, with a two-wheel drive system coupled to an 8-speed gearbox. The listed weight of the tractor is 1011 kg, and it is designed for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

27 hp

Weight

1011 kg

Catalogue coverage

Variants represented

Richest spec table

50 rows

Recorded power

27 hp

Recorded weight

1011 kg

Transmissions

8-speed gear

Production years

1975-1981

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Two-wheel driveReference

Differential lockmechanical rearReference

Open operator station.Reference

Engine

Kubota 1.5L 4-cyl dieselReference

Fuel tank34.8 LReference

Engine22.4 kWReference

Kubota V1500-AReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke76 x 82 mmReference

Power22.4 kWReference

Pre-heatingglow plugsReference

Rated RPM2400Reference

Starter volts12Reference

Oil capacity8.9 LReference

Coolant capacity7.2 LReference

Transmission

8-speed gearReference

TypegearReference

Gears8 forward and 2 reverseReference

PTO & Hydraulics

PTO (claimed)19.8 kWReference

Typeopen centerReference

Pump flow17.8 lpmReference

Rear TypeIReference

Rear lift1149 kgReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2070Reference

Engine RPM1000@2105Reference

Front PTOindependentReference

Clutchelecro-magneticReference

Dimensions

Wheelbase170 cmReference

Weight1011 kgReference

Front tire5.00-15Reference

Rear tire12.4-24Reference

Ag front5.00-15Reference

Ag rear12.4-24Reference

Length300 cmReference

Width159 cmReference

Height140 cmReference

Ground clearance33 cmReference

Kubota L285 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

Kubota K605 Backhoe

Backhoe typeKubota K605 BackhoeReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
