Tractor · 1985Unverified

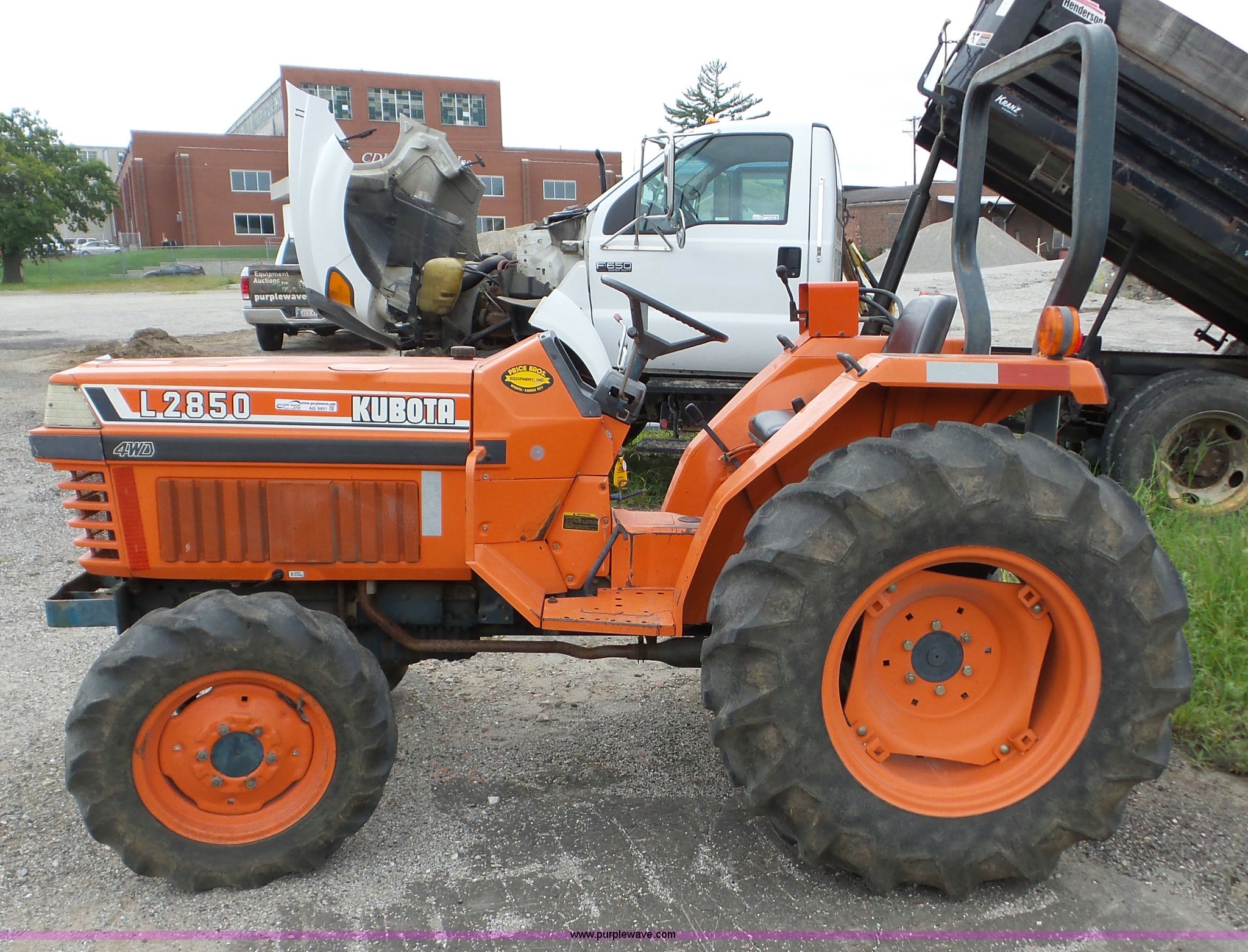

Kubota L2850
Kubota L2850 — L Series · 34 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
34 hp
Max power
17.3 kW
Weight
2480 to 2800 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
SteeringmanualReference
SteeringpowerReference
Differential wet disc brakesReference
Two-post ROPS. Optional sunshade.Reference
Engine
Kubota 1.7L 4-cyl dieselReference
Engine (gross)25.4 kWReference
Drawbar (tested)17.3 kWReference
Kubota V1702-DI-AReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.7 LReference
Bore/Stroke82 x 82 mmReference
Power (gross)25.4 kWReference
Air cleanerpaper elementReference
Compression18:1Reference
Rated RPM2600Reference
Starter volts12Reference
Oil capacity8.4 LReference
Coolant capacity7.0 LReference
Power at rated engine speed20.5 kWReference
Max power17.3 kWReference
Transmission
8-speed mechanical shuttleReference
8-speed partially synchronizedReference
8-speed power shiftReference
Typemechanical shuttleReference
Gears8 forward and 7 reverseReference
Clutchdry platesReference
Oil capacity31.0 LReference
Four gears with high and low ranges, and mechanical shuttle. Fourth gear is locked out in high range.Reference
Typepartially synchronizedReference
Four gears with high and low ranges, and mechanical shuttle. Synchronized shifting between gears 3-4 in both ranges.Reference
TransmissionGlide ShiftReference
Typepower shiftReference
Gears8 forward and reverseReference
Clutchwet discReference
With 12.4-24 rear tires.Reference
PTO & Hydraulics
PTO (claimed)20.1 kWReference
PTO (tested)20.5 kWReference
Hydraulic system31.0 LReference
Typeopen centerReference
Capacity31.0 LReference
Pressure156.9 barReference
Valves1 to 3Reference
Pump flow29.5 lpmReference
Steering flow10.6 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift (at ends)1099 kgReference
Rear lift (at 24"/610mm)898 kgReference
Rear PTOcontinuousReference
Rear PTOlive (optional)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2400Reference
Engine RPM1000@2438Reference
Mid PTOoptionalReference
Mid PTO Type1080/2000Reference
Power at rated PTO speed20.8 kWReference
Capacities
Fuel29.1 LReference
Dimensions
Wheelbase173 cmReference
Weight2480 to 2800 poundsReference
Front tire5.00-15Reference
Rear tire12.4-24Reference
Weight215 kgReference
Ag front5.00-15 (2WD)Reference
Ag front7-16 (4WD)Reference
Ag rear12.4-24Reference
Length290 cmReference
Width136 cmReference
Height (exhaust)198 cmReference
Ground clearance35 cmReference
Ground clearance34 cmReference
Front tread115 to 145 cmReference
Front tread112 cmReference
Rear tread104 to 151 cmReference
2WD Shipping1124 kgReference
4WD Shipping1229 kgReference
GST 4WD Shipping1270 kgReference
4WD Operating1265 kgReference
Ballasted2077 kgReference
Kubota L2850 attachments
72" mid-mount mower deckReference
front-end loaderReference
backhoeReference
L2850 Serial Numbers
Location:On tractor's clutch housing, left sideReference
198550005Reference
198651786Reference
198753807Reference
198855931Reference
198957212Reference
199058326Reference
199158771Reference
199259193Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps35Reference
Battery volts12Reference
Battery AH110Reference
Attachment overview
72" mid-mount mower deckReference
Kubota BF500 loaderReference
Kubota LA650A loaderReference
BackhoeReference
A number of attachment were available for the Kubota L2850. In addition to a mid-mount mower, a rear 72 inch mower was available. Tillers were available in 40-inch (FL1021) and 50-inch (FL1271) sizes. A 65-inch box scaper was available along with the BL78 post hole digger.Reference
72" Mower deck
Typemid-mount Kubota RC72-28Reference
Type3-bladeReference
Cutting width182 cmReference
Overall width225 cmReference
Cut height3 to 11 cmReference
Kubota BL4520B Backhoe
Backhoe typeKubota BL4520B BackhoeReference
Transport height150 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width60 cmReference
Digging depth205 cmReference
Reach from pivot246 cmReference
Loading height151 cmReference
Bucket Rotation164°Reference
Swing Arc180°Reference
Bucket force1224 kgReference
Dipperstick force607 kgReference
Kubota L4530B Backhoe
Backhoe typeKubota L4530B BackhoeReference
Transport height180 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width60 cmReference
Digging depth243 cmReference
Reach from pivot284 cmReference
Loading height179 cmReference
Bucket Rotation194°Reference
Swing Arc180°Reference
Bucket force1310 kgReference
Dipperstick force746 kgReference
Kubota L4560 Backhoe
Backhoe typeKubota L4560 BackhoeReference
Transport height266 cmReference
Bucket width33 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Bucket width76 cmReference
Digging depth251 cmReference
Reach from pivot373 cmReference
Loading height252 cmReference
Bucket Rotation190°Reference
Swing Arc180°Reference
Bucket force2231 kgReference
Dipperstick force1102 kgReference
Kubota BL4590 Backhoe
Backhoe typeKubota BL4590 BackhoeReference
Transport height200 cmReference
Bucket width33 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Bucket width76 cmReference
Bucket width91 cmReference
Digging depth229 cmReference
Reach from pivot295 cmReference
Loading height200 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1338 kgReference
Dipperstick force789 kgReference
Test results
Diesel 8-speed 4WDOctober 30 - November 7, 1985Link: Nebraska Tractor Test 1587 fileReference
PTO performanceReference
Fuel use6.4 l/hourReference
Fuel use6.1 l/hourReference
Drawbar performanceReference
Max pull1828 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
