Tractor · 1991Unverified

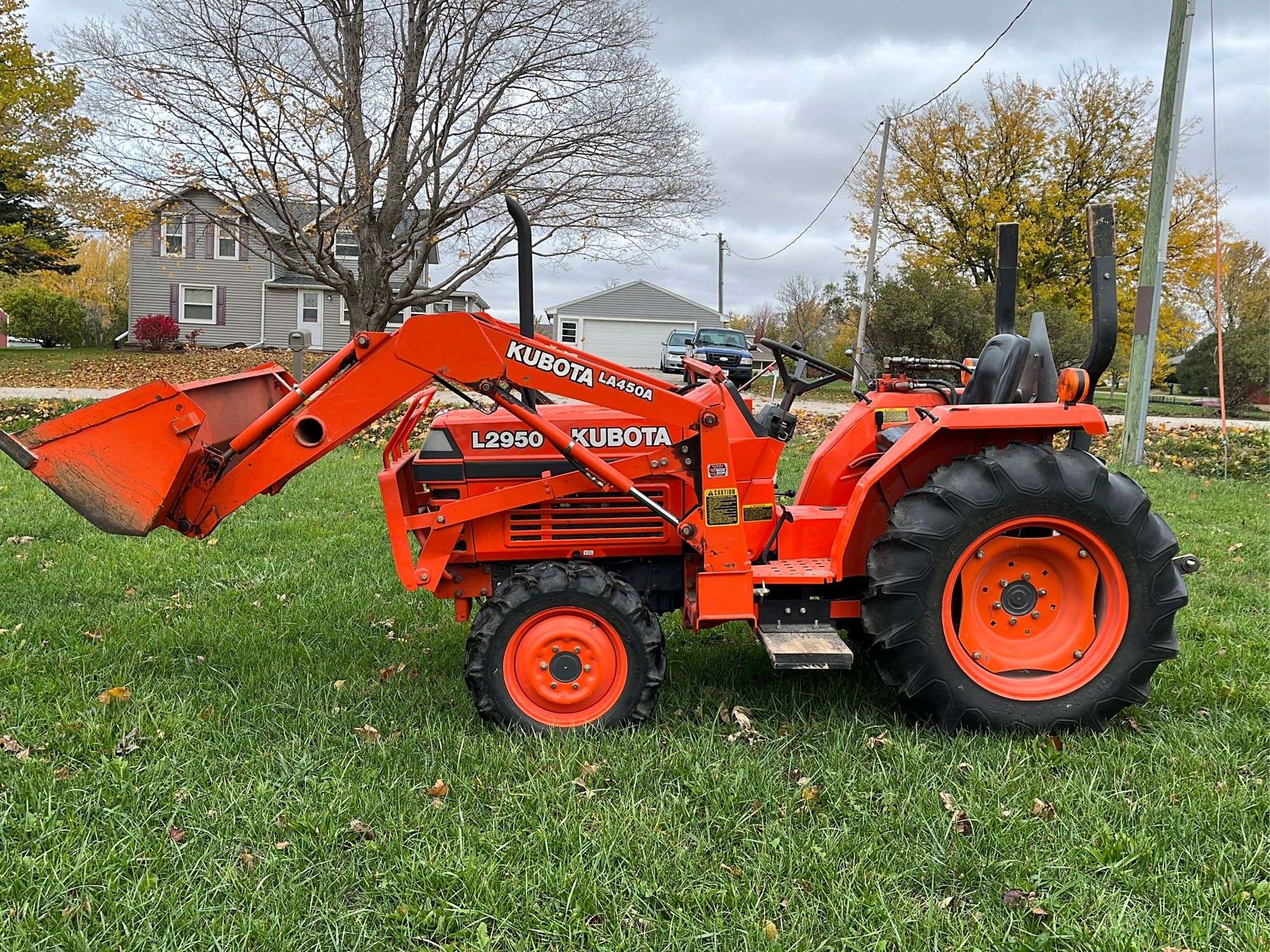

Kubota L2950

Name: Kubota L2950
Brand: Kubota

Kubota L2950 — L50 Series · 32 hp. Reference specifications; pending source verification.

The Kubota L2950 is a compact tractor with a rated output of 32 hp, placing it within a smaller category of its class. Produced between 1991 and 1993, this model features a 3-cylinder diesel liquid-cooled engine, transmitting power through a four-wheel drive system with an 8-speed gearbox. The listed weight ranges from 2445 to 2720 pounds. It is designed for tasks on areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

32 hp

Weight

2445 to 2720 pounds

Catalogue coverage

Variants represented

Richest spec table

156 rows

Recorded power

32 hp

Transmissions

8-speed mechanical shuttle

Production years

1991-1993

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Differential lockmechanical rear lockReference

SteeringpowerReference

Wet disc brakesReference

Two-post ROPS. Optional canopy.Reference

Engine

Kubota 1.5L 3-cyl dieselReference

Engine (gross)23.6 kWReference

Kubota D1462-DI-AEReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke86 x 81 mmReference

Power (gross)23.6 kWReference

Fuel systemdirect injectionReference

Rated RPM2600Reference

Torque95.2 NmReference

Starter volts12Reference

Coolant capacity4.6 LReference

Oil capacity5.7 LReference

Oil change200 hReference

Fuel TypeDieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,600 RPMReference

Engine torque at rated speed31.8 kgReference

Bore and stroke3.4x3.2 inchesReference

Cooling systemliquid-cooledReference

Transmission

8-speed mechanical shuttleReference

8-speedReference

Typemechanical shuttleReference

Gears8 forward and reverseReference

Four gears (1-4) in two ranges (Low-High) with left-hand reverser lever. Gears shifted with right-hand gear shift on the console. Ranges shifted with left-hand lever beside seat. Shuttle shifting is synchronized, using the clutch and at low engine RPMs. Tractor must be stopped to shift ranges. The transmission may be equipped with a dual-stage clutch. This can be identified if the PTO shift has 1000 RPMs on the left, and 540 RPMs on the right.Reference

TransmissionKubota Glide ShiftReference

Clutchdry discReference

Oil capacity27.0 LReference

Kubota Glide Shift (GST) allows for on-the-go shifting without using the clutch. Transmission should be shifted one gear at a time using the left-hand gear lever. Forward-reverse shuttle shifting may be done without the clutch.Reference

Transmission TypePower ShuttleReference

PTO & Hydraulics

PTO (claimed)19.4 kWReference

Hydraulic system28.4 LReference

Typeopen centerReference

Capacity28.4 LReference

Pressure171.7 barReference

Pump flow25.7 lpmReference

Rear Type1Reference

Controlposition control with optional draft controlReference

Rear lift (at ends)1199 kgReference

Rear lift (at 24"/610mm)900 kgReference

Rear PTOtransmssionReference

Rear PTOlive (optional)Reference

Rear PTO Type540/1000 (1.375)Reference

Mid PTOoptionalReference

Mid PTO Type1080/2000Reference

Capacities

Fuel29.1 LReference

Fuel tank29.1 LReference

Crankcase oil volume6 qtsReference

Dimensions

Wheelbase164 cmReference

Weight2445 to 2720 poundsReference

Front tire5.00-15Reference

Rear tire12.4-24 (2WD)Reference

Standard tires (ag)Front: 5.00-15. Rear: 12.4-24 (2WD)Reference

Standard tires (ag)Front: 7-16. Rear: 12.4-24 (4WD)Reference

Lawn/turf front25x8.50-14Reference

Lawn/turf rear13.6-16Reference

Length279 cmReference

Width133 cmReference

Height (steering wheel)147 cmReference

Height (ROPS)212 cmReference

Ground clearance34 cmReference

Front tread96/105/116/125 cmReference

Front tread112 cmReference

Rear tread103/112/121/130/139 cmReference

2WD1109 kgReference

4WD1211 kgReference

GST1233 kgReference

Max Drawbar498 kgReference

Kubota L2950 attachments

60" mid-mount mower deckReference

72" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Battery CCA490Reference

Battery volts12Reference

Total cold cranking amps490 CCAReference

Attachment overview

60" mid-mount mower deckReference

72" mid-mount mower deckReference

SnowblowerReference

BladeReference

Kubota LA450 loaderReference

Kubota LA450A loaderReference

BackhoeReference

Kubota BL4520B Backhoe

Backhoe typeKubota BL4520B BackhoeReference

Transport height150 cmReference

Bucket width25 cmReference

Bucket width30 cmReference

Bucket width40 cmReference

Bucket width60 cmReference

Digging depth205 cmReference

Reach from pivot246 cmReference

Loading height151 cmReference

Bucket Rotation164°Reference

Swing Arc180°Reference

Bucket force1224 kgReference

Dipperstick force607 kgReference

Kubota L4530B Backhoe

Backhoe typeKubota L4530B BackhoeReference

Transport height180 cmReference

Bucket width25 cmReference

Bucket width30 cmReference

Bucket width40 cmReference

Bucket width60 cmReference

Digging depth243 cmReference

Reach from pivot284 cmReference

Loading height179 cmReference

Bucket Rotation194°Reference

Swing Arc180°Reference

Bucket force1310 kgReference

Dipperstick force746 kgReference

Kubota BL4590 Backhoe

Backhoe typeKubota BL4590 BackhoeReference

Transport height200 cmReference

Bucket width33 cmReference

Bucket width45 cmReference

Bucket width60 cmReference

Bucket width76 cmReference

Bucket width91 cmReference

Digging depth229 cmReference

Reach from pivot295 cmReference

Loading height200 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1338 kgReference

Dipperstick force789 kgReference

Speeds

With 12.4-24 rear tires. Reverse speeds are about 10% slower than forward.Reference

With 12.4-24 rear tires. Reverse speeds are about 20% slower than forward.Reference

General

Make & ModelKubotaReference

Rollover protective structureTwo-post ROPSReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Mid PTO RPM2,000 RPMReference

Steering & brakes

Brakeswet discReference

Steering typePowerReference

Hydraulics

Hydraulics Typeopen centerReference

Maximum operating pressure2,490 psiReference

Rear Hitch category (SAE designation)Category 1Reference

Rear Hitch maximum lift capacity1,199.8 kgReference

Rear Hitch Sensing Typeposition control with optional draft controlReference

Dimensions & weight

Overall Height147.6 cmReference

Height Over ROPS212.6 cmReference

Overall Length279.4 cmReference

Overall Width133.9 cmReference

Wheels & tyres

Rear Wheel Typeag: 12.4-24 (2WD) | 12.4-24 (4WD) | Lawn/turf rear :13.6-16Reference

Rear wheel tread range40.6/44.3/48/51.4/55.1 inchesReference

Front Wheel Typeag: 5.00-15. (2WD) | 7-16. (4WD) | Lawn/turf front : 25x8.50-14Reference

Front Wheel tread range112 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
