Tractor · 1976Unverified

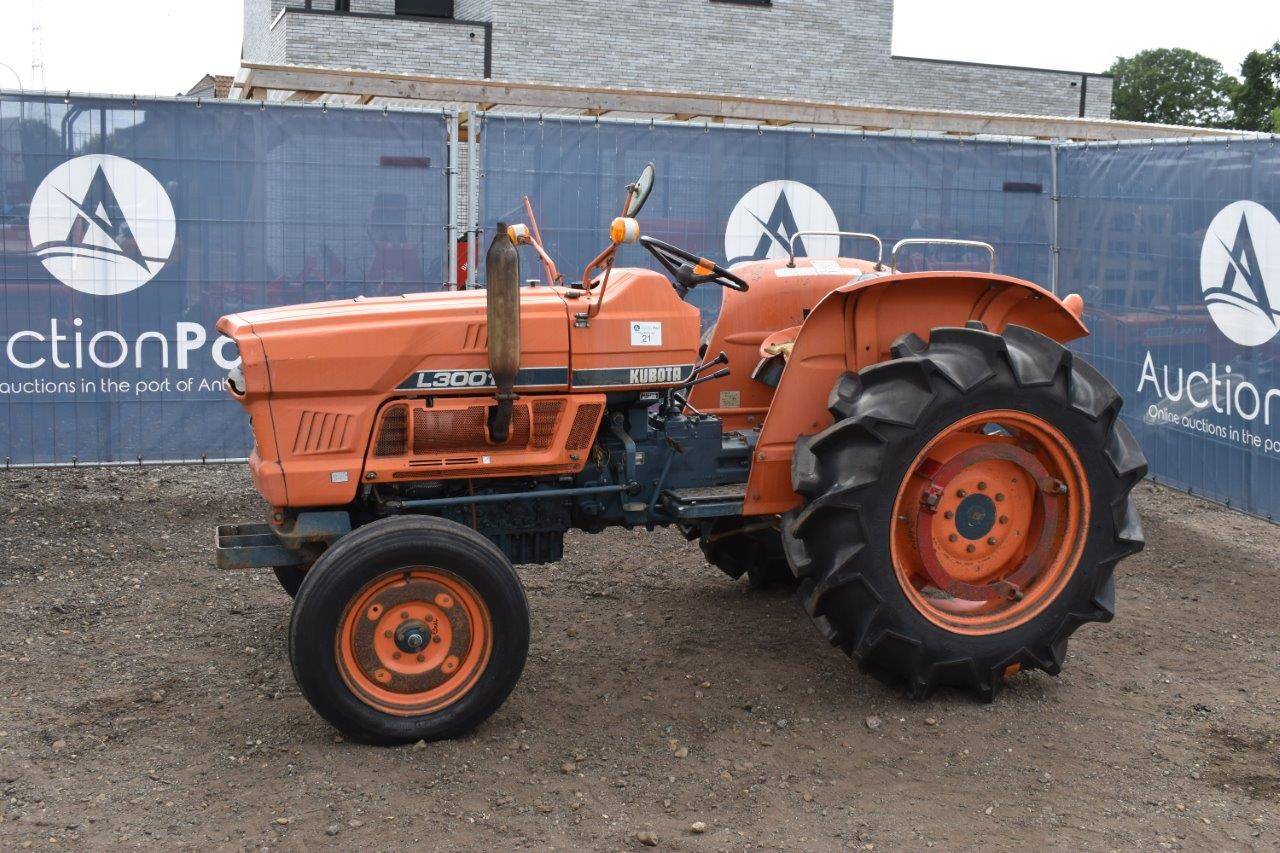

Kubota L3001
Kubota L3001 — L01 Series · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1224 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Engine
Kubota 1.5L 4-cyl dieselReference
Fuel tank35.0 LReference
Engine (net)22.1 kWReference
Kubota V1501Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke76 x 82 mmReference
Power (net)22.1 kWReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and 4 reverseReference
Four gears, plus reverse, in two ranges with additional creeper range.Reference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM622@2800Reference
Engine RPM809@2800Reference
Engine RPM1161@2800Reference
Engine RPM1400@2800Reference
Dimensions
Wheelbase176 cmReference
Weight1224 kgReference
Front tire5.50-16Reference
2WD Rear tire12.4/11-28Reference
2WD Standard tires (ag)Front: 5.50-16. Rear: 12.4/11-28Reference
4WD Standard tires (ag)Front: 8-16. Rear: 12.4/11-28Reference
Length289 cmReference
Width145 cmReference
Height (steering wheel)144 cmReference
Height (exhaust)192 cmReference
Ground clearance34 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
