Tractor · 1979Unverified

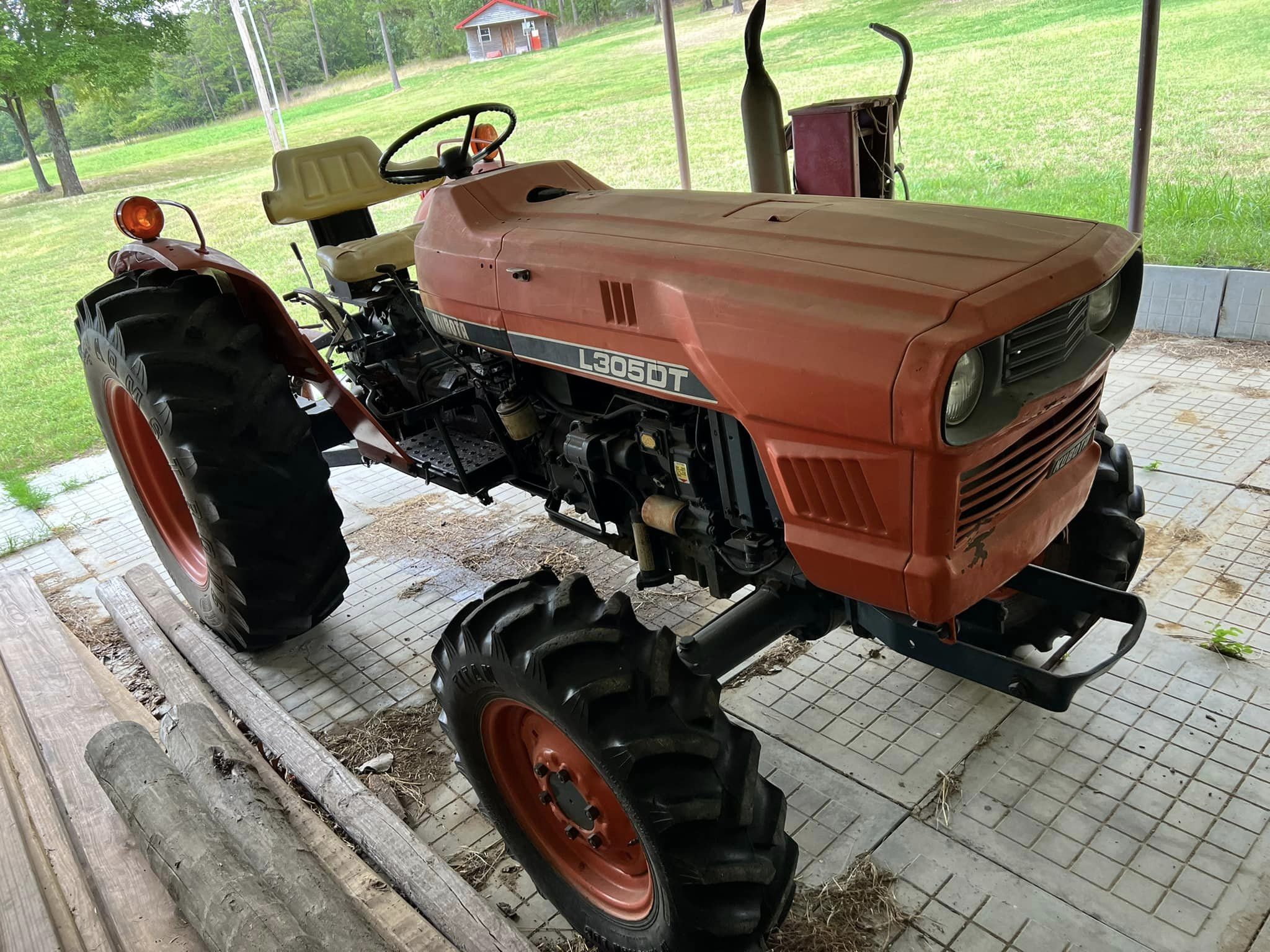

Kubota L305
Kubota L305 — L Series · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Max power
16.2 kW
Weight
2650 to 3140 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Steeringpower assistReference
Wet disc brakesReference
Two-post fixed ROPS.Reference
Variants
L305F2WDReference
L305DT4WDReference
Engine
Kubota 1.3L 3-cyl dieselReference
Fuel tank33.3 LReference
Engine22.4 kWReference
Drawbar (tested)16.2 kWReference
Kubota D1301Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke82 x 82 mmReference
Power22.4 kWReference
Air cleanerdry elementReference
Compression21:1Reference
Rated RPM2800Reference
Starter volts12Reference
Power at rated engine speed19.5 kWReference
Max power16.2 kWReference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)19.4 kWReference
PTO (tested)19.5 kWReference
Typeopen centerReference
Pump flow24.2 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift919 kgReference
Rear PTOliveReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2530Reference
Engine RPM1050@2350Reference
Front PTOoptionalReference
Front PTO Type2800Reference
Power at rated PTO speed18.7 kWReference
Dimensions
Wheelbase184 cmReference
Weight2650 to 3140 poundsReference
Front tire5.50-16Reference
2WD Rear tire13.6-24Reference
2WD Standard tires (ag)Front: 5.50-16. Rear: 13.6-24Reference
4WD Standard tires (ag)Front: 8.3-16. Rear: 13.6-24Reference
Optional tires (ag)Front: 7.00-16. Rear: 12.4-24Reference
Length321 cmReference
Width163 cmReference
Height (exhaust)202 cmReference
Ground clearance34 cmReference
Front tread122 cmReference
Rear tread128 to 169 cmReference
2WD Shipping1202 kgReference
4WD Shipping1295 kgReference
Operating1424 kgReference
Kubota L305 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Kubota L4510 Backhoe
Backhoe typeKubota L4510 BackhoeReference
Transport height236 cmReference
Bucket width30 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Bucket width91 cmReference
2-Foot flat digging depth223 cmReference
Reach from pivot325 cmReference
Loading height213 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force3175 kgReference
Dipperstick force1814 kgReference
Kubota L4530 Backhoe
Backhoe typeKubota L4530 BackhoeReference
Transport height186 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
2-Foot flat digging depth215 cmReference
Reach from pivot279 cmReference
Loading height185 cmReference
Bucket Rotation164°Reference
Swing Arc180°Reference
Bucket force746 kgReference
Dipperstick force1310 kgReference
Test results
Diesel 8-speed 4WDOctober 7 - 24, 1980Link: Nebraska Tractor Test 1371 fileReference
PTO performanceReference
Fuel use7.6 l/hourReference
Fuel use6.8 l/hourReference
Drawbar performanceReference
Max pull1994 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
