Tractor · 2003Unverified

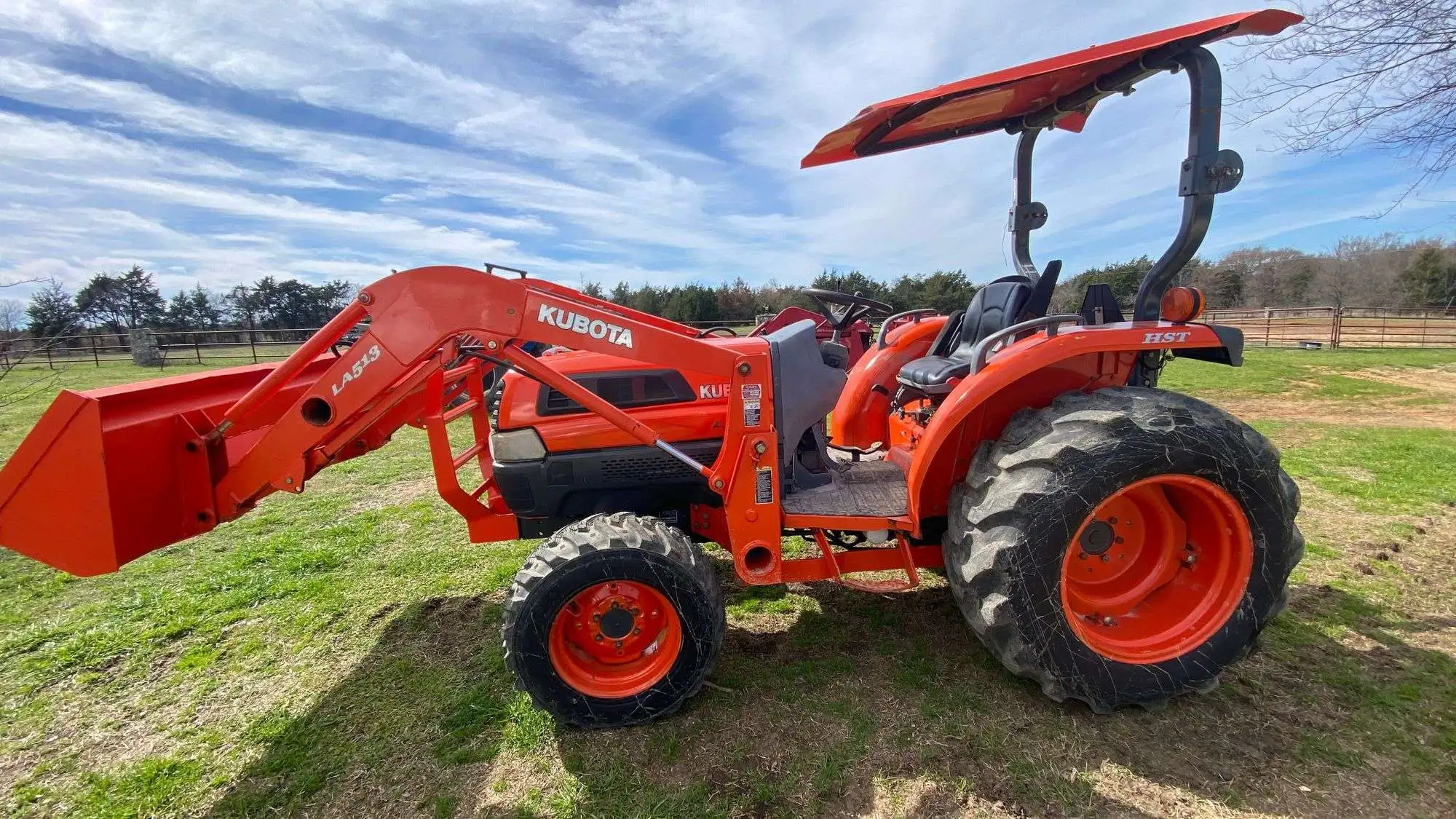

Kubota L3130
Kubota L3130 — L30 Series · 32 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
32 hp
Weight
3120 to 3305 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Variants
L3130F2WDReference
L3130DT4WD 8 speedReference
L3130GST4WD 12 speedReference
L3130HST4WD hydroReference
Engine
Kubota 1.5L 3-cyl dieselReference
Fuel tank40.1 LReference
Engine (gross)23.9 kWReference
Engine (net)23.1 kWReference
Kubota D1503Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.5 LReference
Bore/Stroke83 x 92 mmReference
Power (net)23.1 kWReference
Power (gross)23.9 kWReference
Fuel systemindirect injectionReference
Air cleanerdual dry elementReference
Rated RPM2700Reference
Starter volts12Reference
Transmission
hydrostaticReference
8-speed fully synchronizedReference
12-speed power shiftReference
2WD Gear Weight1415 kgReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
TransmissionFSTReference
Typefully synchronizedReference
Gears8 forward and reverseReference
Clutchdry discReference
Synchronized transmission with mechanical shuttle.Reference
TransmissionGlide ShiftReference
Typepower shiftReference
Gears12 forward and 8 reverseReference
PTO & Hydraulics
Gear PTO (claimed)19.0 kWReference
Hydro PTO (claimed)17.9 kWReference
Typeopen centerReference
Valves3Reference
Pump flow31.4 lpmReference
Total flow50.0 lpmReference
Steering flow18.5 lpmReference
Rear TypeIReference
Controlposition control with optional draft controlReference
Rear lift (at 24"/610mm)1202 kgReference
Rear PTOindependentReference
ClutchhydraulicReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2000Reference
Dimensions
2WD Wheelbase181 cmReference
4WD Wheelbase180 cmReference
Weight3120 to 3305 poundsReference
Front tire6.00-16Reference
2WD Rear tire12.4-24Reference
Weight210 kgReference
2WD Standard tires (ag)Front: 6.00-16. Rear: 12.4-24Reference
4WD Standard tires (ag)Front: 7.2-16. Rear: 12.4-24Reference
2WD Length302 cmReference
4WD Length291 cmReference
Width151 cmReference
Height (ROPS)230 cmReference
4WD Hydro Weight1499 kgReference
Ground clearance36 cmReference
2WD Front tread120/131/140/150 cmReference
4WD Front tread115 cmReference
Rear tread119/130/138/148 cmReference
Kubota L3130 attachments
72" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
L3130 Serial Number Location
Serial number decal on the left side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery volts12Reference
Attachment overview
72" mid-mount mower deckReference
SnowblowerReference
BladeReference
Kubota LA513 loaderReference
Kubota LA723 loaderReference
BackhoeReference
72" Mower deck
Typemid-mount Kubota RC72-38Reference
Type3-bladeReference
Cutting width182 cmReference
Cut height3 to 11 cmReference
Kubota BL4690B Backhoe
Backhoe typeKubota BL4690B BackhoeReference
Transport height195 cmReference
Digging depth229 cmReference
Reach from pivot295 cmReference
Loading height191 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1338 kgReference
Dipperstick force789 kgReference
Kubota BH90 Backhoe
Backhoe typeKubota BH90 BackhoeReference
Transport height251 cmReference
Digging depth276 cmReference
Reach from pivot372 cmReference
Loading height242 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1755 kgReference
Dipperstick force1176 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
