Tractor · 2011Unverified

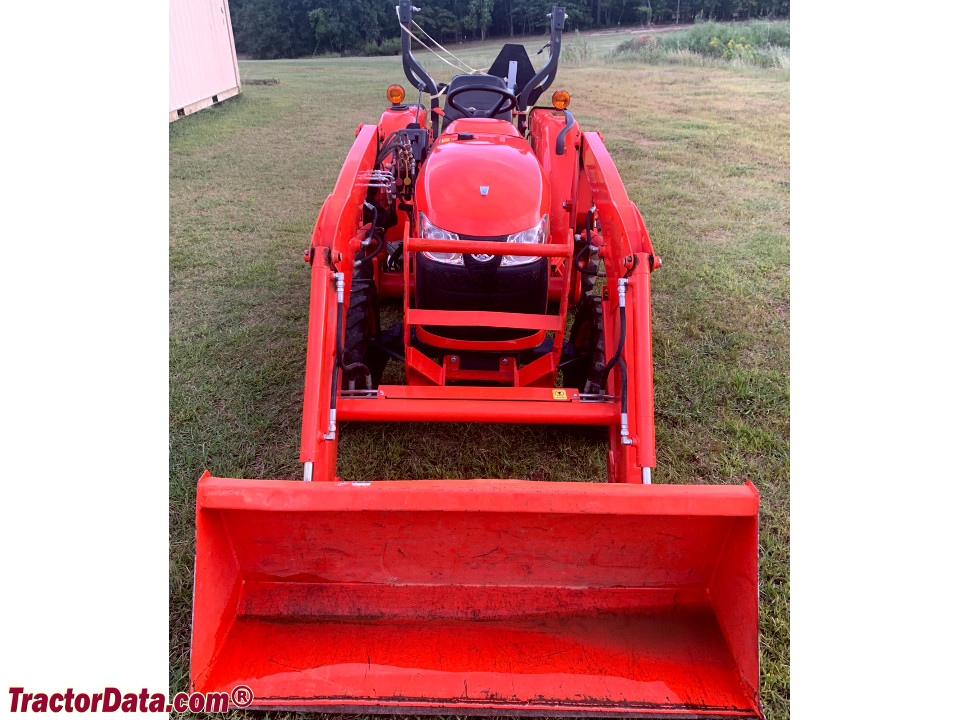

Kubota L3200
Kubota L3200 — Standard L Series · 32 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
32 hp
Weight
2425 to 2623 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Original price$12,185 (2011 2WD gear)Reference
Original price$15,090 (2011 4WD hydro)Reference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Differential lockrear standardReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Foldable two-post ROPS. Optional sunshade.Reference
Variants
L3200F2WD gearReference
L3200DT4WD gearReference
L3200HST4WD hydroReference
Engine
Kubota 1.5L 3-cyl dieselReference
Engine (gross)23.8 kWReference
Engine (net)22.7 kWReference
Kubota D1503Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke84 x 91 mmReference
EmissionsInterim Tier IVReference
Power (net)22.7 kWReference
Power (gross)23.8 kWReference
Rated RPM2800Reference
Starter volts12Reference
Oil capacity5.7 LReference
Coolant capacity6.0 LReference
Transmission
8-speed gearReference
hydrostaticReference
TypegearReference
Gears8 forward and 4 reverseReference
ClutchdryReference
Oil capacity27.6 LReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Oil capacity23.5 LReference
PTO & Hydraulics
PTO (claimed)19.9 kWReference
PTO (claimed)18.8 kWReference
Hydraulic system27.6 LReference
Hydraulic system23.5 LReference
Typeopen centerReference
Capacity27.6 LReference
Capacity23.5 LReference
Pump flow24.6 lpmReference
Total flow39.7 lpmReference
Steering flow15.1 lpmReference
Rear TypeIReference
Rear lift (at ends)906 kgReference
Rear lift (at 24"/610mm)650 kgReference
Rear PTOtransmissionReference
Rear PTO Type540Reference
Engine RPM540@2430 (gear)Reference
Engine RPM540@2580 (hydro)Reference
Capacities
Fuel37.9 LReference
Dimensions
Wheelbase160 cmReference
Weight2425 to 2623 poundsReference
Front tire5.00-15Reference
Rear tire11.2-24 (2WD)Reference
Standard tires (ag)Front: 5.00-15. Rear: 11.2-24 (2WD)Reference
Standard tires (ag)Front: 7.2-16. Rear: 11.2-24 (4WD)Reference
Lawn/turf front23x8.50-12 (2WD)Reference
Lawn/turf front25x8.50-14 (4WD)Reference
Lawn/turf rear13.6-16Reference
Industrial front27x8.50-15 (4WD)Reference
Industrial rear15-19.5Reference
Length280 cmReference
Length270 cmReference
Width139 cmReference
Height (ROPS)232 cmReference
Ground clearance34 cmReference
Ground clearance34 cmReference
Front tread104 cmReference
Front tread109 cmReference
Rear tread111 to 129 cmReference
1099 kgReference
1179 kgReference
1189 kgReference
Kubota L3200 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Charging volts12Reference
Battery CCA490Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Kubota BH77 Backhoe
Backhoe typeKubota BH77 BackhoeReference
2-Foot flat digging depth234 cmReference
Reach from pivot315 cmReference
Loading height167 cmReference
Bucket force1551 kgReference
Dipperstick force993 kgReference
Speeds
With 11.2-24 R1 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
