Tractor · 2007Unverified

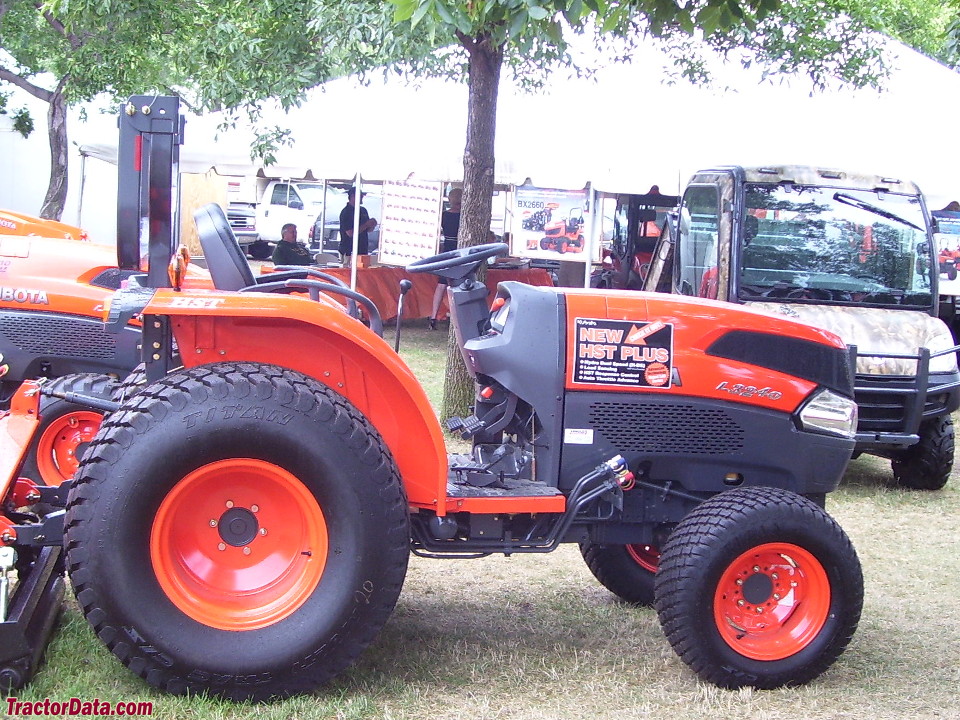

Kubota L3240
Kubota L3240 — L40 Series · 34 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
34 hp
Weight
3153 to 3748 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Original price was $17,000 in 2011Reference
The "semi-independent" mid PTO is linked with the rear PTO. Whenever the mid PTO is engaged, the rear PTO will also be engaged. The rear PTO can be run without the mid PTO.Reference
Two- or four-wheel driveReference
Steeringhydrostatic power steeringReference
Wet disc brakesReference
Two-post ROPS. Grand cab on L3240HSTC. Optional radio/CD player.Reference
Variants
L3240F2WDReference
L3240DT4WDReference
L3240GST4WD, 12 speedReference
L3240HSThydroReference
L3240HSTChydro cabReference
Engine
Kubota 1.6L 3-cyl dieselReference
Engine (gross)25.4 kWReference
Engine (net)23.9 kWReference
KubotaReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke85 x 91 mmReference
Power (net)23.9 kWReference
Power (gross)25.4 kWReference
Rated RPM2700Reference
Starter volts12Reference
Oil capacity5.7 LReference
Coolant capacity6.0 LReference
Transmission
hydrostaticReference
8-speedReference
12-speedReference
TransmissionHST PlusReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Oil capacity42.0 LReference
Controlled by treadle foot pedal, cruise control standard with left-hand lever. Three range with Hydro Dual Speed, a high/low power shift controlled by left-hand lever. Auto Hydro Dual speed allows automatic control to match load. Stall Guard maintains engine RPMs by reducing speed under load. HST Response Control adjusts acceleration rates. Auto Throttle Advance links engine RPMs to transmission, so that the throttle increases when speed is increased.Reference
TransmissionFST sync shuttleReference
Gears8 forward and reverseReference
Four gears (1-4) in two ranges (Low/High) with shuttle.Reference
TransmissionGlide Shift (GST)Reference
Gears12 forward and 8 reverseReference
PTO & Hydraulics
Gear PTO (claimed)19.8 kWReference
Hydro PTO (claimed)18.6 kWReference
Hydraulic system42.0 LReference
Typeopen centerReference
Capacity42.0 LReference
Valves2 to 3Reference
Pump flow31.4 lpmReference
Total flow50.0 lpmReference
Steering flow18.5 lpmReference
Rear TypeIReference
Rear lift (at ends)1701 kgReference
Rear lift (at 24"/610mm)1202 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@2550Reference
Mid PTOsemi-independentReference
Mid PTO Type2000Reference
Capacities
Fuel43.9 LReference
Front axle6.5 LReference
Dimensions
4WD Wheelbase180 cmReference
2WD Wheelbase181 cmReference
Weight3153 to 3748 poundsReference
Front tire6.00-16Reference
2WD Rear tire12.4-24Reference
Weight210 kgReference
2WD Standard tires (ag)Front: 6.00-16. Rear: 12.4-24Reference
4WD Standard tires (ag)Front: 7.2-16. Rear: 12.4-24Reference
2WD Optional tires (ag)Front: 7.5Lx15. Rear: 12.4x24Reference
Lawn/turf front27x8.50-15Reference
Lawn/turf front27-10.50LLx15Reference
Lawn/turf front29x12.50-15Reference
Lawn/turf rear355/80-D20Reference
Lawn/turf rear41-18LLXx16.1Reference
Lawn/turf rear41x18--20Reference
Industrial front10x16.5 (4WD)Reference
Industrial rear420/70-24 (4WD)Reference
4WD Length291 cmReference
2WD Length303 cmReference
Width151 cmReference
Height230 cmReference
Ground clearance35 cmReference
2WD Front tread120 to 150 cmReference
4WD Front tread115 cmReference
Rear tread119 to 148 cmReference
2WD ROPS1430 kgReference
4WD ROPS1539 kgReference
4WD Cab1700 kgReference
Kubota L3240 attachments
72" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging amps40Reference
Charging amps55 (cab)Reference
Battery CCA490Reference
Battery volts12Reference
Attachment overview
72" mid-mount mower deckReference
SnowblowerReference
BladeReference
Kubota LA514 loaderReference
Kubota LA724 loaderReference
BackhoeReference
The mid-mount mower and front-mount snowblower require the optional mid PTO. Additional Kubota-specified attachments included a 60-inch rotary tiller and 72-inch front-mount broom.Reference
72" Mower deck
Typemid-mount Kubota RC72Reference
Type3-bladeReference
Cutting width182 cmReference
Cut height3 to 11 cmReference
Kubota BH76 Backhoe
Backhoe typeKubota BH76 BackhoeReference
2-Foot flat digging depth231 cmReference
Reach from pivot306 cmReference
Loading height163 cmReference
Bucket force1514 kgReference
Dipperstick force951 kgReference
Kubota BH77 Backhoe
Backhoe typeKubota BH77 BackhoeReference
2-Foot flat digging depth234 cmReference
Reach from pivot315 cmReference
Loading height170 cmReference
Bucket force1551 kgReference
Dipperstick force993 kgReference
Kubota BH92 Backhoe
Backhoe typeKubota BH92 BackhoeReference
2-Foot flat digging depth278 cmReference
Reach from pivot382 cmReference
Loading height214 cmReference
Bucket force2062 kgReference
Dipperstick force1223 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
