Tractor · 2014Unverified

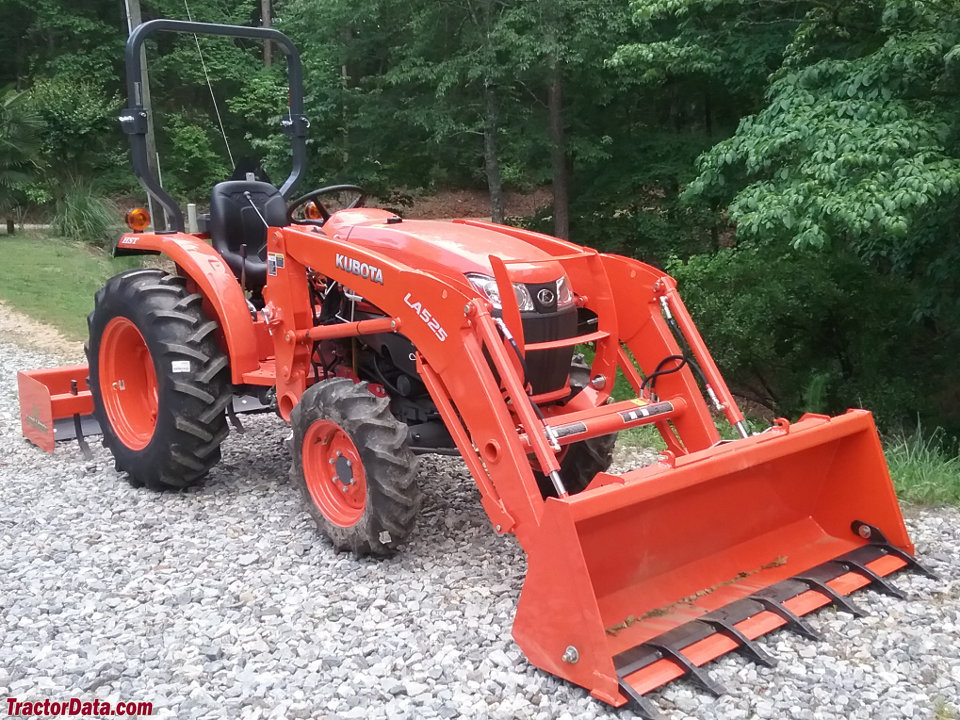

Kubota L3301
Kubota L3301 — L01 Standard Series · 33 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Weight
2557 to 2778 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WDReference
SteeringpowerReference
Mechanical wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Kubota 1.8L 3-cyl dieselReference
Fuel tank42.0 LReference
Engine (gross)24.6 kWReference
Engine (net)23.4 kWReference
KubotaReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke87 x 102 mmReference
EmissionsTier IVReference
Power (net)23.4 kWReference
Power (gross)24.6 kWReference
Fuel systemcommon rail direct injectionReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed synchronized shuttleReference
hydrostaticReference
2WD Gear1159 kgReference
4WD Gear1240 kgReference
Typesynchronized shuttleReference
Gears8 forward and reverseReference
Clutchdry discReference
Four gears (1-4) in two ranges with mechanical shuttle.Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)20.7 kWReference
Hydro PTO (claimed)19.5 kWReference
Typeopen centerReference
Pressure161.8 barReference
Pump flow23.8 lpmReference
Steering flow14.4 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)900 kgReference
Rear lift (at 24"/610mm)650 kgReference
Rear PTOtransmissionReference
Rear PTOliveReference
Clutchoverrunning dry discReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase160 cmReference
Weight2557 to 2778 poundsReference
Front tire5.00-15Reference
2WD Rear tire11.2-24Reference
2WD Standard tires (ag)Front: 5.00-15. Rear: 11.2-24Reference
4WD Standard tires (ag)Front: 7.2-16. Rear: 11.2-24Reference
Lawn/turf front23x8.50-12 (2WD)Reference
Lawn/turf front25x8.50-14 (4WD)Reference
Lawn/turf rear13.6-16Reference
Industrial front27x8.50-15 (4WD)Reference
Industrial rear15-19.5 (4WD)Reference
2WD Length280 cmReference
4WD Length274 cmReference
Width139 cmReference
Height (ROPS)232 cmReference
2WD Ground clearance34 cmReference
4WD Ground clearance34 cmReference
Front tread104 cmReference
Front tread109 cmReference
Rear tread111/119/129 cmReference
4WD Hydro1260 kgReference
Kubota L3301 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Charging volts12Reference
Battery CCA580Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Kubota BH77 Backhoe
Backhoe typeKubota BH77 BackhoeReference
2-Foot flat digging depth228 cmReference
Reach from pivot315 cmReference
Loading height166 cmReference
Bucket Rotation180°Reference
Bucket force1551 kgReference
Dipperstick force993 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
