Tractor · 1985Unverified

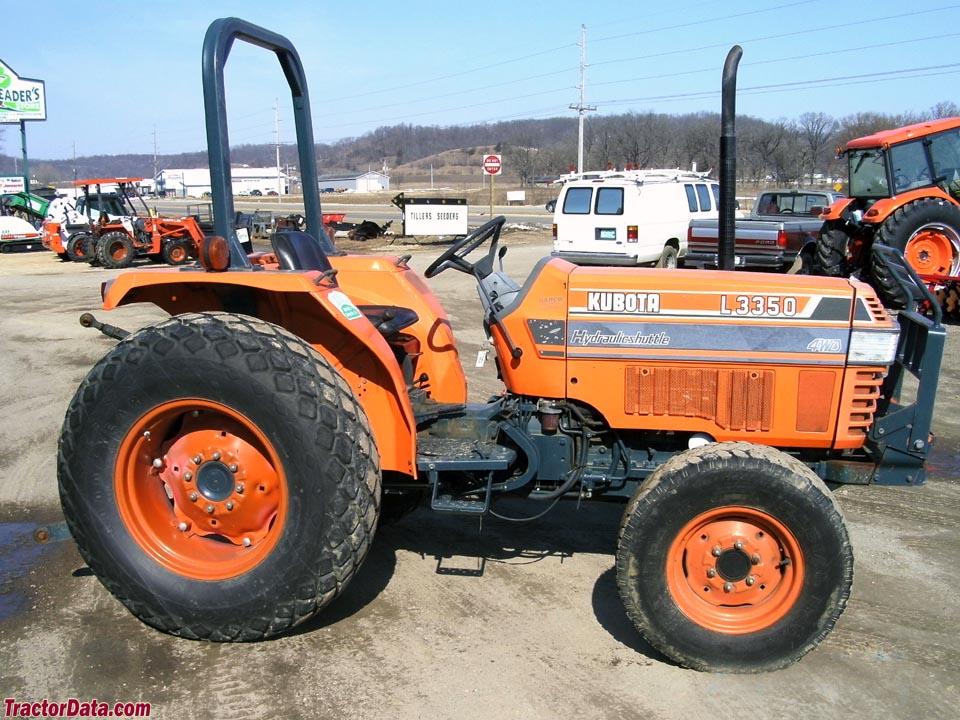

Kubota L3350
Kubota L3350 — L Series · 33 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Max power
19.9 kW
Weight
1710 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
SteeringpowerReference
Wet disc brakesReference
Two-post ROPS with optional sunshade.Reference
Variants
L3350F2WDReference
L3350DT4WDReference
Engine
Kubota 1.9L 4-cyl dieselReference
Engine29.8 kWReference
Drawbar (tested)19.9 kWReference
Kubota V1902-DA-AReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.9 LReference
Bore/Stroke84 x 81 mmReference
Power29.8 kWReference
Air cleanerdry with safety elementReference
Rated RPM2600Reference
Starter volts12Reference
Oil capacity7.5 LReference
Coolant capacity7.0 LReference
Power at rated engine speed24.5 kWReference
Max power19.9 kWReference
Transmission
8-speed partially synchronized mechanical shuttleReference
Typepartially synchronized mechanical shuttleReference
Gears8 forward and reverseReference
Clutchdry plateReference
Oil capacity43.2 LReference
PTO & Hydraulics
PTO (claimed)23.9 kWReference
PTO (tested)24.5 kWReference
Hydraulic system43.1 LReference
Typeopen centerReference
Capacity43.1 LReference
Pressure172.4 barReference
Valves0 to 2Reference
Pump flow35.2 lpmReference
Rear TypeIReference
Rear lift (at ends)1551 kgReference
Rear lift (at 24"/610mm)1202 kgReference
Rear PTOliveReference
Rear PTO Type540/750Reference
Power at rated PTO speed24.8 kWReference
Capacities
Fuel57.9 LReference
Dimensions
Wheelbase184 cmReference
Weight1710 kgReference
Front tire8-16Reference
Rear tire13.6-24Reference
Ag front8-16Reference
Ag rear13.6-24Reference
Ag front7-16Reference
Ag front9.5-16Reference
Ag rear12.4-24Reference
Ag rear14.9-24Reference
Length348 cmReference
Width157 cmReference
Height (steering wheel)151 cmReference
Shipping weight1710 kgReference
Ground clearance27 cmReference
Front tread127 cmReference
Rear tread121 to 172 cmReference
Kubota L3350 attachments

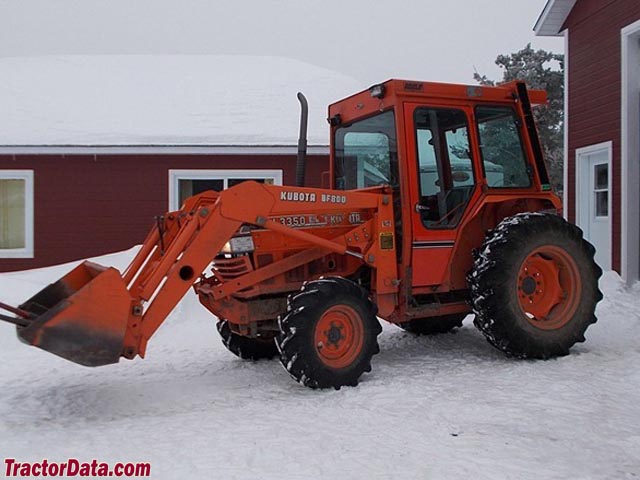

front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Kubota L4540 Backhoe
Backhoe typeKubota L4540 BackhoeReference
Bucket width33 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Bucket width76 cmReference
Digging depth317 cmReference
Reach from pivot424 cmReference
Loading height248 cmReference
Bucket force1805 kgReference
Dipperstick force759 kgReference
Kubota L4540A Backhoe
Backhoe typeKubota L4540A BackhoeReference
Transport height262 cmReference
Bucket width33 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Bucket width76 cmReference
Bucket width91 cmReference
Digging depth344 cmReference
Reach from pivot425 cmReference
Loading height250 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1564 kgReference
Dipperstick force1242 kgReference
Kubota L4560 Backhoe
Backhoe typeKubota L4560 BackhoeReference
Transport height266 cmReference
Bucket width33 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Bucket width76 cmReference
Digging depth251 cmReference
Reach from pivot373 cmReference
Loading height252 cmReference
Bucket Rotation190°Reference
Swing Arc180°Reference
Bucket force2231 kgReference
Dipperstick force1102 kgReference
Test results
Diesel 8-speed 4WDOctober 30 - November 12, 1985Link: Nebraska Tractor Test 1588 fileReference
PTO performanceReference
Fuel use7.6 l/hourReference
Fuel use7.2 l/hourReference
Drawbar performanceReference
Gear 6 used for power test.Reference
Max pull2009 kgReference
Gear 3 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
