Tractor · 2004Unverified
Kubota L3400
Kubota L3400 — Model year 2004-20072008-2010 · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
2403 to 2600 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Differential lockrear standardReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Foldable ROPS and sunshade optional.Reference
Variants
L3400F2WD gearReference
L3400DT4WD gearReference
L3400HST4WD hydroReference
Engine
Kubota 1.6L 3-cyl dieselReference
Engine (gross)25.9 kWReference
Kubota D1703Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Original engine, used in the L3400 from 2004 to 2008.Reference
Displacement1.6 LReference
Bore/Stroke87 x 92 mmReference
Power (gross)25.9 kWReference
Rated RPM2700Reference
Starter volts12Reference
Transmission
hydrostaticReference
8-speed constant meshReference
2WD gear1090 kgReference
4WD gear1170 kgReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Oil capacity27.6 LReference
Typeconstant meshReference
Gears8 forward and 4 reverseReference
Four gears (1-4) in two ranges (Low/High) and reverse (R). Mechanical shuttle shifting between forward-low and reverse.Reference
PTO & Hydraulics
Gear PTO (claimed)21.6 kWReference
Hydro PTO (claimed)20.5 kWReference
Hydraulic system27.6 LReference
Typeopen centerReference
Capacity27.6 LReference
Valves0 to 3Reference
Pump flow25.7 lpmReference
Total flow41.3 lpmReference
Steering flow15.5 lpmReference
Rear TypeIReference
Rear lift (at ends)900 kgReference
Rear lift (at 24"/610mm)650 kgReference
Rear PTOliveReference
Hydro Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2425Reference
Capacities
Fuel34.1 LReference
Front axle4.5 LReference
Dimensions
Wheelbase160 cmReference
Weight2403 to 2600 poundsReference
Front tire5-15Reference
Rear tire11.2-24Reference
Standard tires (ag)Front: 5-15. Rear: 11.2-24Reference
4WD Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference
Lawn/turf front23x8.50-12Reference
4WD Lawn/turf front25x8.50-14Reference
Lawn/turf rear13.6-16Reference
Industrial front27x8.50-15Reference
Industrial rear15-19.5R4Reference
2WD Length280 cmReference
4WD Length270 cmReference
Width130 cmReference
Height215 cmReference
4WD Clearance (front axle)34 cmReference
2WD Clearance (front axle)34 cmReference
2WD Front tread104 cmReference
4WD Front tread109 cmReference
Rear tread102 to 129 cmReference
4WD hydro1179 kgReference
Kubota L3400 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA490Reference
Battery volts12Reference
Attachment overview

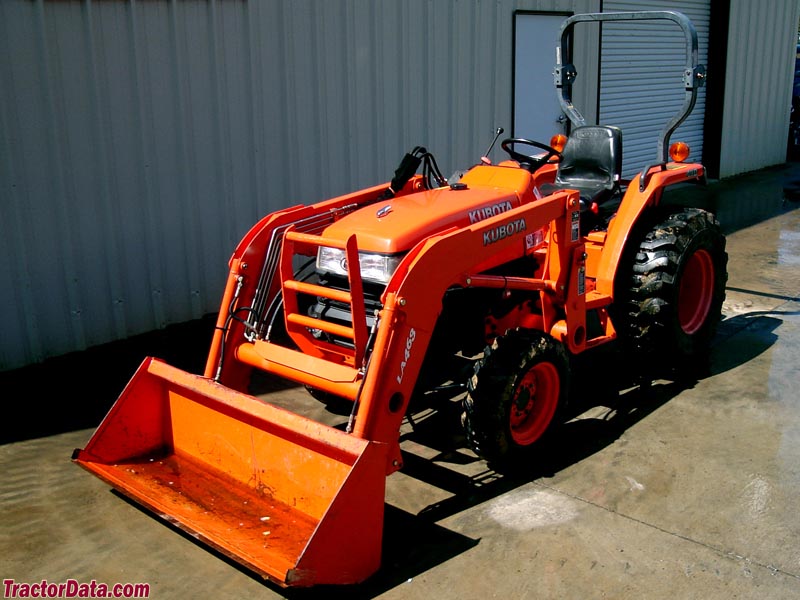

Front-end loaderReference
BackhoeReference
Additional Kubota implements included 40, 50 or 60-inch rear tillers and a 64- or 74-inch rear-mount snowblower.Reference
Kubota BH76 Backhoe
Backhoe typeKubota BH76 BackhoeReference
Transport height201 cmReference
2-Foot flat digging depth227 cmReference
Reach from pivot305 cmReference
Loading height171 cmReference
Bucket force1478 kgReference
Dipperstick force928 kgReference
Speeds
With 11.2-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
