Tractor · 1978Unverified

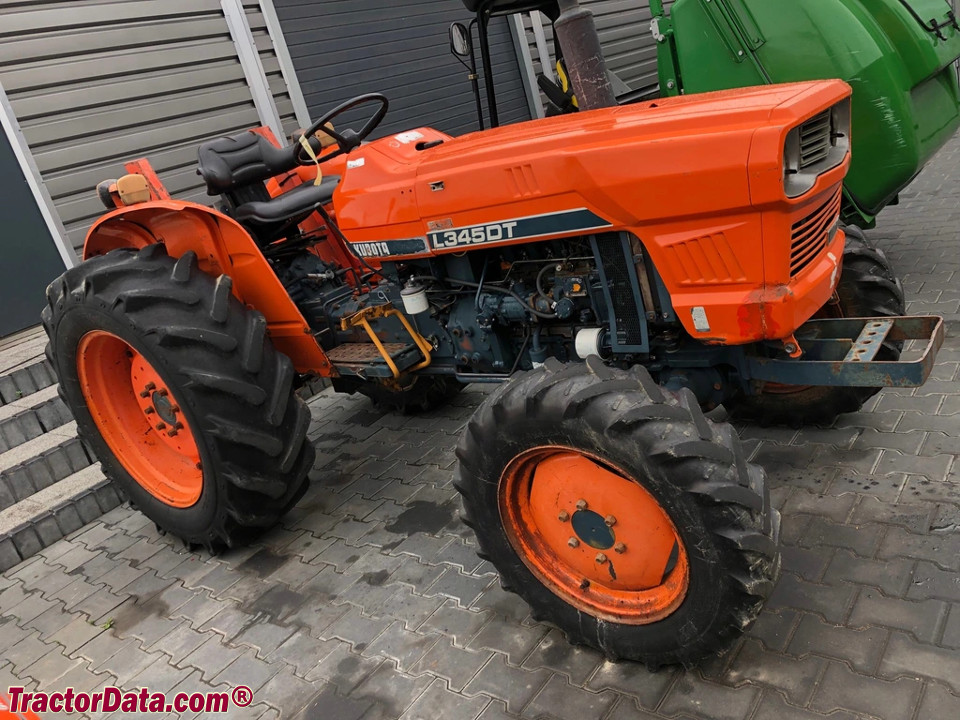

Kubota L345

Name: Kubota L345
Brand: Kubota

Kubota L345 — L Series · 29 hp. Reference specifications; pending source verification.

The Kubota L345 is a compact tractor rated at 29 hp, featuring a 4-cylinder diesel liquid-cooled engine. It was produced from 1978 to 1985 and is equipped with a four-wheel drive system and an 8-speed gearbox. The listed weight ranges from 2770 to 3300 pounds, making it suitable for tasks on around 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

29 hp

Max power

18.8 kW

Weight

2770 to 3300 pounds

Catalogue coverage

Variants represented

Richest spec table

101 rows

Recorded power

29 hp

Transmissions

8-speed gear

Production years

1978-1985

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Built in JapanReference

Two- or four-wheel driveReference

Final drivesplanetaryReference

Steeringpower assistReference

Wet disc brakesReference

Two-post fixed ROPS.Reference

Variants

L345F2WDReference

L345DT4WDReference

L345FWwideReference

Engine

Kubota 1.5L 4-cyl dieselReference

Fuel tank34.8 LReference

Engine25.4 kWReference

Drawbar (tested)18.8 kWReference

Kubota V1501DAReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke76 x 82 mmReference

Power25.4 kWReference

Compression21:1Reference

Rated RPM2800Reference

Starter volts12Reference

Power at rated engine speed21.9 kWReference

Max power18.8 kWReference

Transmission

8-speed gearReference

TypegearReference

Gears8 forward and 2 reverseReference

Clutchdry discReference

Four gears, plus reverse, in two ranges.Reference

PTO & Hydraulics

PTO (claimed)21.9 kWReference

PTO (tested)21.9 kWReference

Typeopen centerReference

Pump flow35.6 lpmReference

Rear TypeIReference

Controlposition and draft controlReference

Rear PTOliveReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@2532Reference

Front PTO Type2800Reference

Power at rated PTO speed21.5 kWReference

Dimensions

2WD Wheelbase193 cmReference

4WD Wheelbase194 cmReference

Weight2770 to 3300 poundsReference

Front tire6.00-16Reference

2WD Rear tire13.6-28Reference

2WD Standard tires (ag)Front: 6.00-16. Rear: 13.6-28Reference

4WD Standard tires (ag)Front: 9.5-16. Rear: 13.6-28Reference

Length337 cmReference

Width149 cmReference

Height (exhaust)207 cmReference

2WD Ground clearance38 cmReference

4WD Ground clearance36 cmReference

2WD Front tread113 to 145 cmReference

4WD Front tread124 cmReference

FW Front tread142 to 193 cmReference

Rear tread117 to 167 cmReference

FW Rear tread142 to 193 cmReference

2WD Shipping1256 kgReference

4WD Shipping1422 kgReference

FW Shipping1324 kgReference

4WD Operating1496 kgReference

Kubota L345 attachments

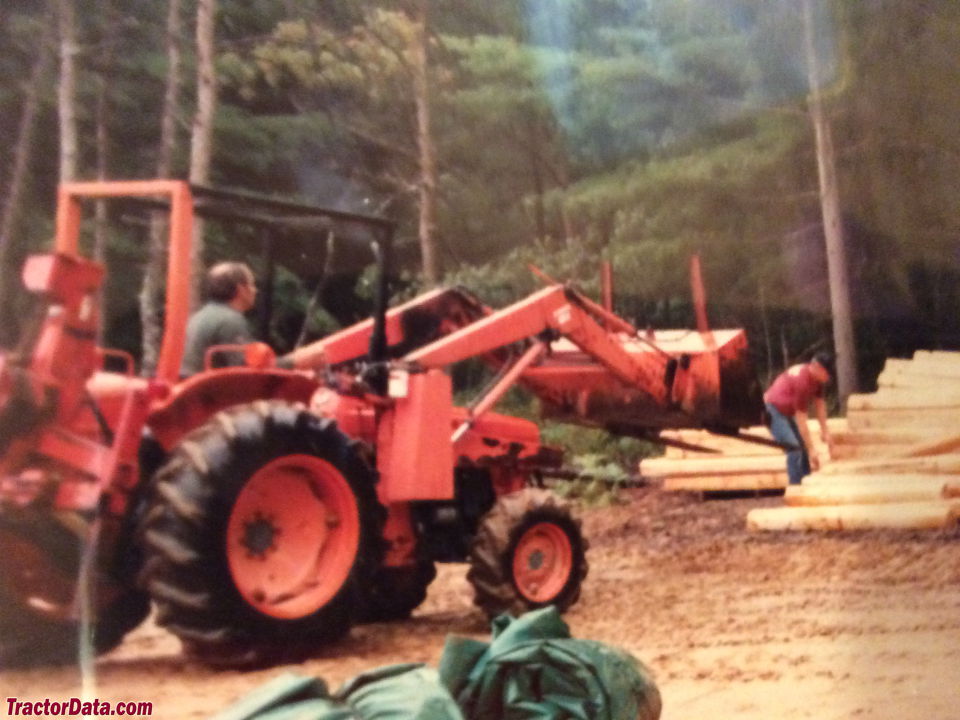

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

Kubota L4510 Backhoe

Backhoe typeKubota L4510 BackhoeReference

Transport height236 cmReference

Bucket width30 cmReference

Bucket width45 cmReference

Bucket width60 cmReference

Bucket width91 cmReference

2-Foot flat digging depth223 cmReference

Reach from pivot325 cmReference

Loading height213 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force3175 kgReference

Dipperstick force1814 kgReference

Kubota L4530 Backhoe

Backhoe typeKubota L4530 BackhoeReference

Transport height186 cmReference

Bucket width25 cmReference

Bucket width30 cmReference

Bucket width40 cmReference

2-Foot flat digging depth215 cmReference

Reach from pivot279 cmReference

Loading height185 cmReference

Bucket Rotation164°Reference

Swing Arc180°Reference

Bucket force746 kgReference

Dipperstick force1310 kgReference

Test results

Diesel 8-speed 4WDOctober 7 - 21, 1980Link: Nebraska Tractor Test 1372 fileReference

PTO performanceReference

Fuel use8.7 l/hourReference

Drawbar performanceReference

Fuel use9.1 l/hourReference

Max pull2053 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
